About the XDV PCB
XDV is an open source STM32 PCB design by TeamFoxbat, published on GitHub under the CERN-OHL-P-2.0 license. It is a 4-layer board measuring 52.1 × 40.7 mm, with 59 components from 25 distinct parts.
Its main chip is the STM32F030C8T6, from the STM32 family. Other key parts include the ADV7511. By type, the board carries 20 capacitors, 19 resistors, 4 connectors, 4 diodes, 4 inductors and 2 ICs.

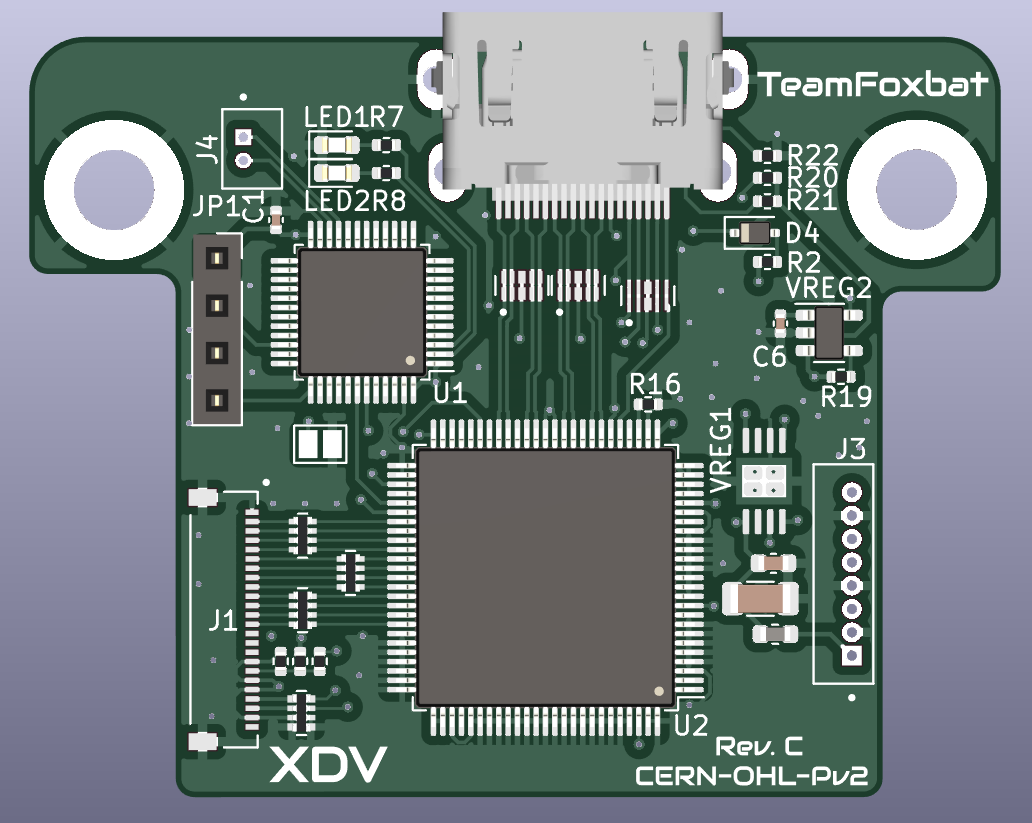

From the project
100% Digital Video Solution for Original Xbox!
The ferite bead on the bottom right of the stock encoder must be removed.
Notes for installing the power and SMBus harnesses to come soon.
The Rev C offers some minor improvements to reduce impedence mismatch on the TMDS traces but has not been ordered, a minor improvement to get closer to the spec.

Main components on the XDV
XDV bill of materials (BOM)
59 components, 25 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F030C8T6 | LQFP-48_7x7mm_P0.5mm | U1 |
| 1 | ADV7511 | LQFP-100_14x14mm_P0.5mm | U2 |
| 1 | 5034802400 | MOLEX_5034802400 | J1 |
| 1 | 10029449-111RLF | HDMI_10029449 | J2 |
| 1 | 0530470810 | MOLEX_0530470810 | J3 |
| 1 | 53047-0210 | MOLEX_53047-0210 | J4 |
| 1 | PINHD-1X5 | PinSocket_1x04_P2.54mm_Vertical | JP1 |
| 1 | Jumper_2_Open | SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm | REC1 |
| 1 | MIC5357-SGYMME | MSOP-8-1EP_3x3mm_P0.65mm_EP2.5x3mm_Mask1.73x2.36mm_ThermalVias | VREG1 |
| 1 | MIC2091 | SOT-23-5 | VREG2 |
| 1 | 150060VS75000 | LED_0603_1608Metric | LED1 |
| 1 | 150060BS75000 | LED_0603_1608Metric | LED2 |
| 3 | RCLAMP0524P | DIO_RCLAMP0524PATCT | D1, D2, D3 |
| 1 | B5819WS-TP | D_SOD-323 | D4 |
| 1 | MLZ1608N100LT000 | L_0603_1608Metric | L1 |
| 3 | 220R@100MHz | L_0603_1608Metric | L2, L3, L4 |
| 14 | 100n | C_0402_1005Metric | C1, C2, C3, C4, C5, C6, C7, C8 +6 |
| 5 | 10u | C_0603_1608Metric | C14, C15, C16, C17, C19 |
| 1 | 47u | C_1206_3216Metric | C18 |
| 1 | 27k | R_0402_1005Metric | R2 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | 887R 1% | R_0402_1005Metric | R4, R5, R7, R8, R16 |
| 4 | YC124-JR-0733RL | R_Array_Convex_4x0402 | R9, R10, R11, R12 |
| 3 | 4k7 | R_0402_1005Metric | R13, R15, R17 |
| 1 | 100R | R_0402_1005Metric | R14 |
| 5 | 2k | R_0402_1005Metric | R18, R19, R20, R21, R22 |
XDV design files
The KiCad project lives in the TeamFoxbat/XDV repository on GitHub; these links point at the commit this page was built from.
- LayoutXDV-hardware/XDV.kicad_pcb
- SchematicXDV-hardware/XDV.kicad_sch
XDV: common questions
What microcontroller does the XDV use?
The XDV is built around the STM32F030C8T6, from the STM32 family.
How big is the XDV PCB?
The XDV measures 52.1 × 40.7 mm, has 4 copper layers and is 1.5842 mm thick.
How many components are on the XDV?
59 components, from 25 distinct parts. The full bill of materials is listed on this page.
Where can I download the XDV design files?
From the TeamFoxbat/XDV repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the XDV design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which TeamFoxbat chose for the repository.
Can I test firmware for the XDV without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
