About the RC2014 IDE PCB
RC2014 IDE is an open source PCB design by tebl, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 99.1 × 49.5 mm, with 12 components from 9 distinct parts.
Other key parts include the 74LS138 and 74HCT32N. By type, the board carries 4 resistors, 3 connectors, 2 ICs, 2 capacitors and 1 diode.
From the project
RC2014 expansion modules and scripts

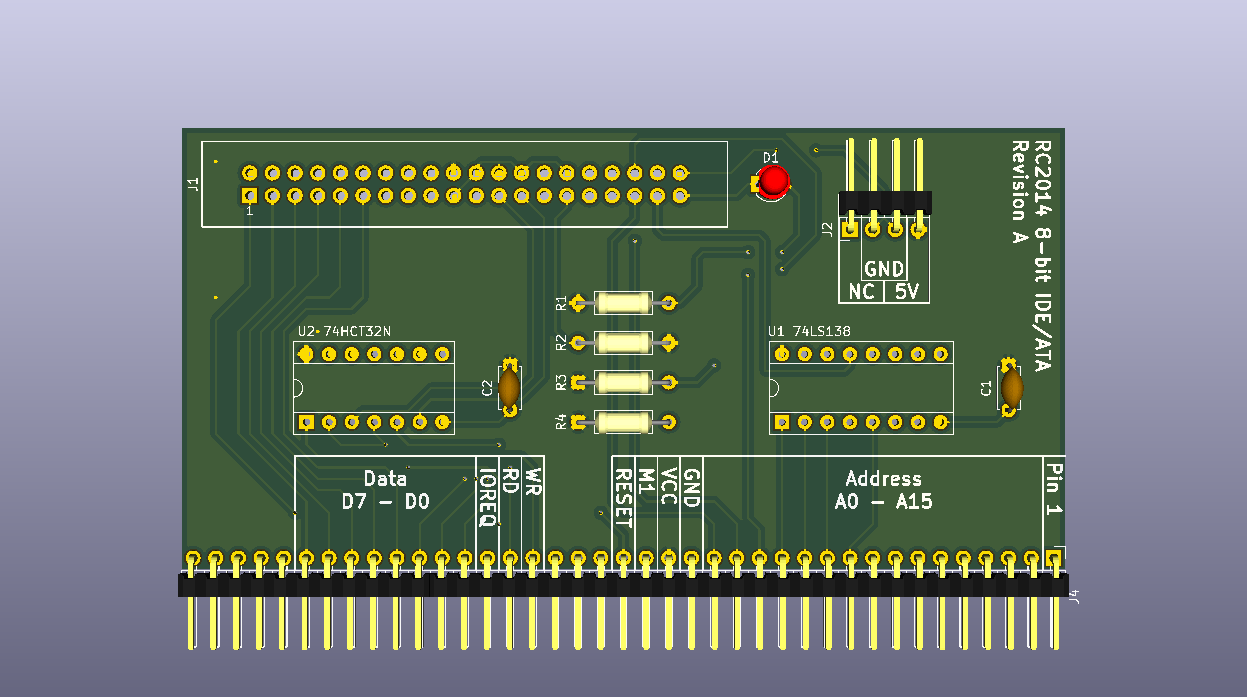

This is an IDE ATA adapter I've been working so that I can avoid having to learn how to solder surface mount components like the one used on the officialy available Compact Flash module. This gives you a standard ATA IDE connector that you can use for anything that still supports 8-bit IDE, where this relates to the Compact Flash module is that you can use it to connect up to a cheap Compact Flash to IDE adapter. See Scripts for a sample Basic-script that can be used to test the adapter.
Main components on the RC2014 IDE
RC2014 IDE bill of materials (BOM)
12 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS138 | DIP-16_W7.62mm_Socket | U1 |
| 1 | 74HCT32N | DIP-14_W7.62mm_Socket | U2 |
| 1 | CONN_02X20 | IDC_Header_Straight_40pins | J1 |
| 1 | Device power | Pin_Header_Angled_1x04_Pitch2.54mm | J2 |
| 1 | CONN_01X39 | Pin_Header_Angled_1x39_Pitch2.54mm | J4 |
| 1 | LED | LED_D3.0mm | D1 |
| 2 | 100nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C1, C2 |
| 1 | 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 3 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2, R3, R4 |
