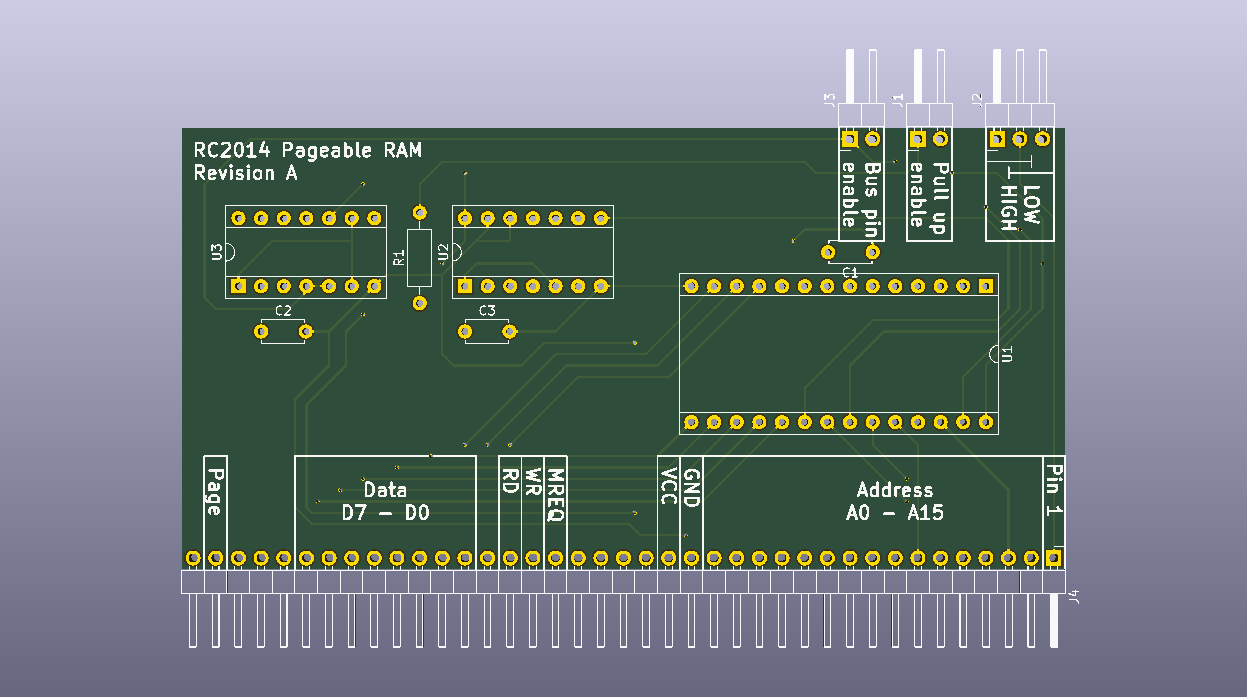

RC2014 RAM
About the RC2014 RAM PCB
RC2014 RAM is an open source PCB design by tebl, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 99.1 × 49.5 mm, with 11 components from 9 distinct parts.
Other key parts include the HM62256BLP-7, 74LS32 and 74HCT00. By type, the board carries 4 connectors, 3 ICs, 3 capacitors and 1 resistor.
From the project
RC2014 expansion modules and scripts
This is a customized RAM module that enables you to page the module in and out, similar to the 64K module available. The difference here is that I'm only using one RAM chip per card. The reason for this is simple, PCB manufacturers don't seem to want to make a single PCB so this way I can use more of them at once!
The PCB places the paging pin on one of the spare pins of the backplane, that way I don't have to run any wires between the cards.
Main components on the RC2014 RAM
RC2014 RAM bill of materials (BOM)
11 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | HM62256BLP-7 | DIP-28_W15.24mm_Socket | U1 |
| 1 | 74LS32 | DIP-14_W7.62mm_Socket | U2 |
| 1 | 74HCT00 | DIP-14_W7.62mm_Socket | U3 |
| 1 | Page PullUp | Pin_Header_Angled_1x02_Pitch2.54mm | J1 |
| 1 | HIGH | LOW | Pin_Header_Angled_1x03_Pitch2.54mm | J2 |
| 1 | Bus enable | Pin_Header_Angled_1x02_Pitch2.54mm | J3 |
| 1 | CONN_01X39 | Pin_Header_Angled_1x39_Pitch2.54mm | J4 |
| 3 | 100nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C1, C2, C3 |
| 1 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
RC2014 RAM design files
The KiCad project lives in the tebl/RC2014 repository on GitHub; these links point at the commit this page was built from.
RC2014 RAM: common questions
How big is the RC2014 RAM PCB?
The RC2014 RAM measures 99.1 × 49.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RC2014 RAM?
11 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the RC2014 RAM design files?
From the tebl/RC2014 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the RC2014 RAM design in my own project?
Yes, under the terms of its GPL-3.0 license, which tebl chose for the repository.
