Vectrex vectorblade
About the Vectrex vectorblade PCB
Vectrex vectorblade is an open source PCB design by technobly, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 48 × 66 mm, with 15 components from 12 distinct parts.
Other key parts include the SST39SF020, NC7ST08M5X (Schmitt-Trigger) and SN74AHC1G04DBVR (Schmitt-Trigger). By type, the board carries 3 ICs, 3 resistors, 1 connector, 1 switch, 1 diode and 1 capacitor.
From the project

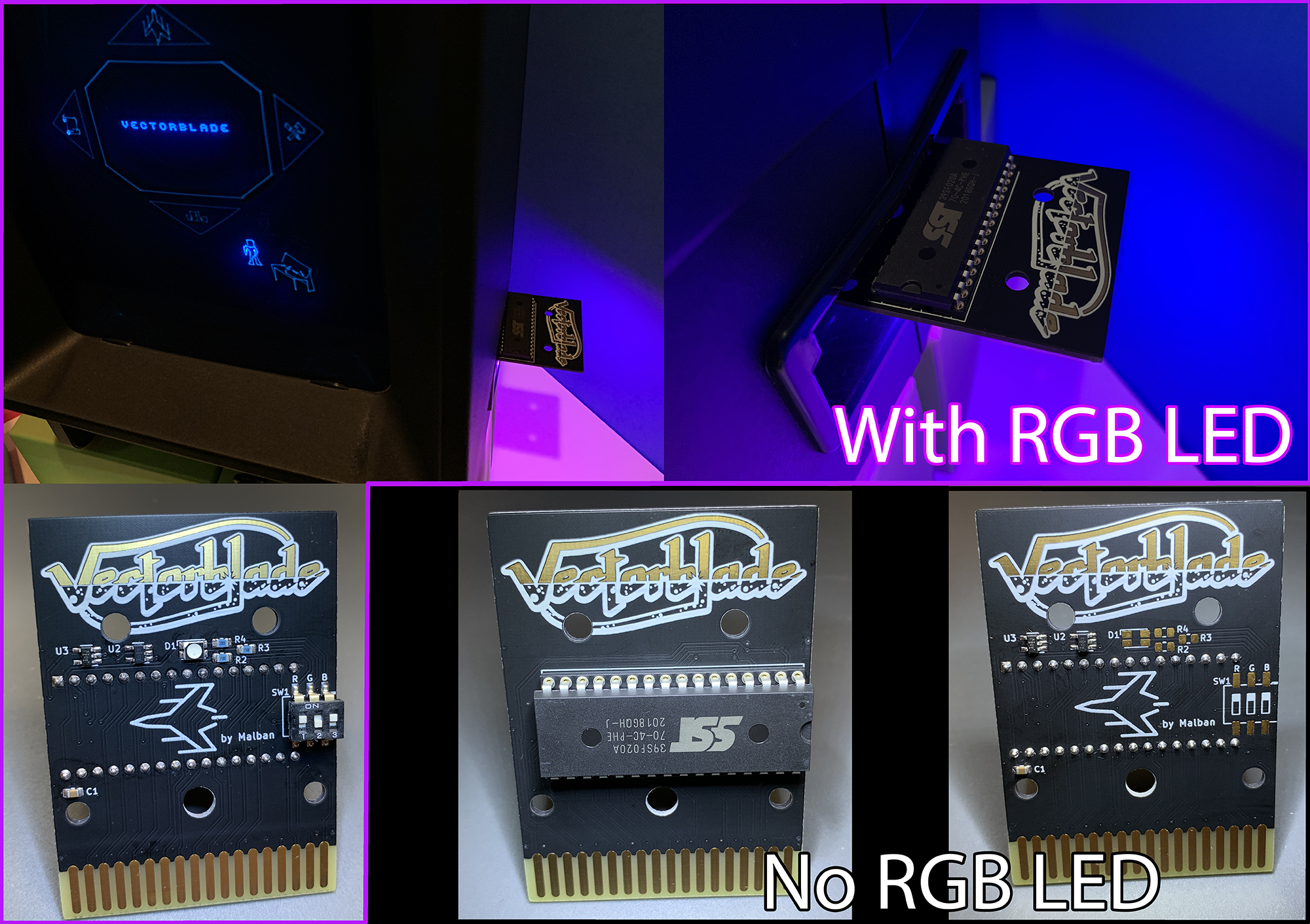

Malban's Vectorblade PCB design, optimized with single gate SMT IC's (AND & NOT), 8 color RGB LED, and some gorgeous artwork applied.
Vectrex Vectorblade PCB by Brett Walach ===
Malban's Vectorblade PCB design, optimized with single gate SMT IC's (AND & NOT), 8 color RGB LED, and some gorgeous artwork applied. Looks great in black soldermask with ENIG (gold flash) finish!
Yes these fit in Sean Kelly reproduction cartridge shells perfectly!
All the parts are described in Bill of Materials
You can use this Digi-Key shared cart to order the parts! Vectrex Vectorblade
Main components on the Vectrex vectorblade
Vectrex vectorblade bill of materials (BOM)
15 components, 12 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SST39SF020 | DIP-32_W15.24mm_Socket | U1 |
| 1 | NC7ST08M5X (Schmitt-Trigger) | SOT-23-5_HandSoldering | U2 |
| 1 | SN74AHC1G04DBVR (Schmitt-Trigger) | SOT-23-5_HandSoldering | U3 |
| 1 | vectrex-edge-connector | vectrex-edge-connector-thinner-no-soldermask | CON1 |
| 2 | 3.7mm | Mounting_Hole_D3.7mm | H1, H3 |
| 1 | 5.2mm | Mounting_Hole_D5.2mm | H2 |
| 2 | 4.2mm | Mounting_Hole_D4.2mm | H4, H5 |
| 1 | SW_DIP_x03 | SW_DIP_SPSTx03_Slide_6.7x9.18mm_W8.61mm_P2.54mm_LowProfile | SW1 |
| 1 | ASMB-MTB0-0A3A2 | LED_Avago_PLCC4_3.2x2.8mm_CW | D1 |
| 1 | 0.1uF 0805 | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1 |
| 2 | 150 0805 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R2, R3 |
| 1 | 200 0805 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R4 |
Vectrex vectorblade design files
The KiCad project lives in the technobly/vectrex-vectorblade repository on GitHub; these links point at the commit this page was built from.
Vectrex vectorblade: common questions
How big is the Vectrex vectorblade PCB?
The Vectrex vectorblade measures 48 × 66 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Vectrex vectorblade?
15 components, from 12 distinct parts. The full bill of materials is listed on this page.
Where can I download the Vectrex vectorblade design files?
From the technobly/vectrex-vectorblade repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Vectrex vectorblade design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which technobly chose for the repository.
