CircuitBoardV2

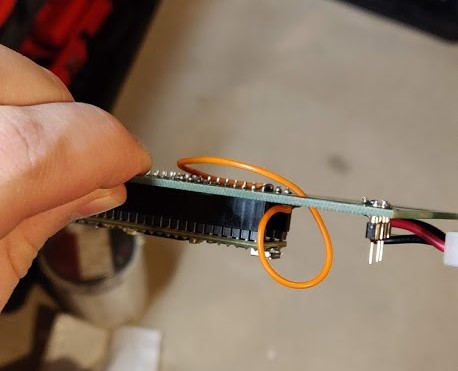

About the CircuitBoardV2 PCB
CircuitBoardV2 is an open source PCB design by Technologyman00, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 57.4 × 132.3 mm, with 48 components from 4 distinct parts.
Other key parts include the TXS0108EPWR. By type, the board carries 42 connectors and 5 ICs.
From the project
An Open Source RGB Controller with enough ports to light up the sky. No processing load on your computer either!
The whole Idea behind this project was to create a much better RGB controller than the controllers or motherboard software I have seen. Currently It has already met that goal as it can play any pattern for many LEDs and up to individual 40 devices. I am still working on the user interface and many qualities of life things, but the main functionality does work. HOWEVER, it will need a PCB made to power all the LEDs as a Teensy cannot power that many safely.
Main components on the CircuitBoardV2
CircuitBoardV2 bill of materials (BOM)
48 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | TXS0108EPWR | SOP65P640X120-20N | U1, U2, U3, U4, U5 |
| 40 | Conn_01x04_Male | FanPinHeader_1x04_P2.54mm_Vertical | J1, J2, J3, J4, J5, J6, J7, J8 +32 |
| 2 | Conn_01x24_Female | PinSocket_1x24_P2.54mm_Vertical | J21, J22 |
| 1 | Conn_01x04_Male | 7708461 | JMolex1 |
CircuitBoardV2 design files
The KiCad project lives in the Technologyman00/Teensy-PC_RGB_Controller repository on GitHub; these links point at the commit this page was built from.
CircuitBoardV2: common questions
How big is the CircuitBoardV2 PCB?
The CircuitBoardV2 measures 57.4 × 132.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CircuitBoardV2?
48 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the CircuitBoardV2 design files?
From the Technologyman00/Teensy-PC_RGB_Controller repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the CircuitBoardV2 design in my own project?
Yes, under the terms of its GPL-3.0 license, which Technologyman00 chose for the repository.
Earlier revisions in the repo: CircuitBoard
