EMUZ80 Pico2
About the EMUZ80 Pico2 PCB
EMUZ80 Pico2 is an open source PCB design by tendai22, published on GitHub. It is a 2-layer board measuring 99.1 × 99.1 mm, with 32 components from 25 distinct parts.
Other key parts include the Pimoroni PGA2350B, RB2350B_CORE_BOARD, 74HC00, Z80CPU and HM628128. By type, the board carries 6 capacitors, 5 ICs, 5 connectors, 5 jumpers, 5 diodes and 4 resistors.

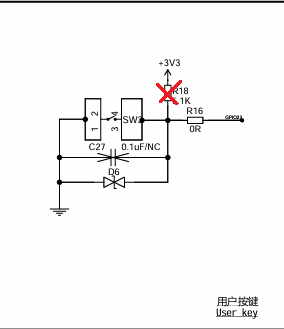

From the project
KiCad PCB for emuz80_pico2
Main components on the EMUZ80 Pico2
EMUZ80 Pico2 bill of materials (BOM)
32 components, 25 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Pimoroni PGA2350B | PLCC-64_THT-Socket | U1 |
| 1 | RB2350B_CORE_BOARD RB2350B_Core_Board | RB2350B_Core_Board | U2 |
| 1 | 74HC00 | DIP-14_W7.62mm_Socket | U3 |
| 1 | Z80CPU | DIP-40_SidePin_Z80 | U4 |
| 1 | HM628128 | DIP-32_W15.24mm_OvalPads | U5 |
| 1 | EXT_GPIO1 | PinHeader_1x08_P2.54mm_Vertical | J3 |
| 1 | EXT_GPIO2 | PinHeader_1x02_P2.54mm_Vertical | J4 |
| 1 | Serial | PinHeader_1x06_P2.54mm_Horizontal_NoFeet | J5 |
| 1 | USB_B_Micro | USB_Micro-B_Hirose_ZX62-B-5PA | J6 |
| 1 | CONN_01X05_PIN Conn_01x05_Pin | PinHeader_1x05_P2.54mm_Vertical | J8 |
| 1 | VCC_Jumper | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP1 |
| 1 | CE1_J | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP2 |
| 1 | CS2_J | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP3 |
| 1 | OE_J | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP4 |
| 1 | WE_J | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP5 |
| 1 | RUN | Tact_SW | SW1 |
| 1 | BOOTSEL | Tact_SW | SW2 |
| 2 | 1S3 | D_DO-34_SOD68_P7.62mm_Horizontal | D1, D5 |
| 1 | RED | LED_D3.0mm | D2 |
| 1 | GREEN | LED_D3.0mm | D3 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | YELLOW | LED_D3.0mm | D4 |
| 5 | 0.1U 0.1u | C_Disc_D3.0mm_W1.6mm_P2.50mm | C1, C2, C3, C4, C5 |
| 1 | 10UF 10uF | CP_Radial_D5.0mm_P2.50mm | C7 |
| 3 | 1k | R_Axial_L5.5mm_D2.0mm_P7.62mm_Horizontal | R1, R2, R3 |
| 1 | 10K 10k | R_Axial_L5.5mm_D2.0mm_P7.62mm_Horizontal | R4 |
EMUZ80 Pico2 design files
The KiCad project lives in the tendai22/EMUZ80_Pico2_PCB repository on GitHub; these links point at the commit this page was built from.
- LayoutEMUZ80_Pico2.kicad_pcb
- SchematicEMUZ80_Pico2.kicad_sch
- BOMproduction/bom.csv
EMUZ80 Pico2: common questions
How big is the EMUZ80 Pico2 PCB?
The EMUZ80 Pico2 measures 99.1 × 99.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the EMUZ80 Pico2?
32 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EMUZ80 Pico2 design files?
From the tendai22/EMUZ80_Pico2_PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the EMUZ80 Pico2 design in my own project?
The repository has no license, so all rights stay with tendai22. Use it as a reference, and ask the author before reusing the design.
