820-1635

the-electron-vault·Apple·iPod/iPod 4th Generation/820-1635/820-1635.kicad_pcb

820-1635 PCB layout, top view — open source board by the-electron-vault
Simulate this board

About the 820-1635 PCB

820-1635 is an open source PCB design by the-electron-vault, published on GitHub. It is a 4-layer board measuring 44.6 × 11.6 mm, with 49 components from 16 distinct parts.

By type, the board carries 14 inductors, 13 test points, 9 capacitors, 5 resistors, 2 connectors and 1 speaker.

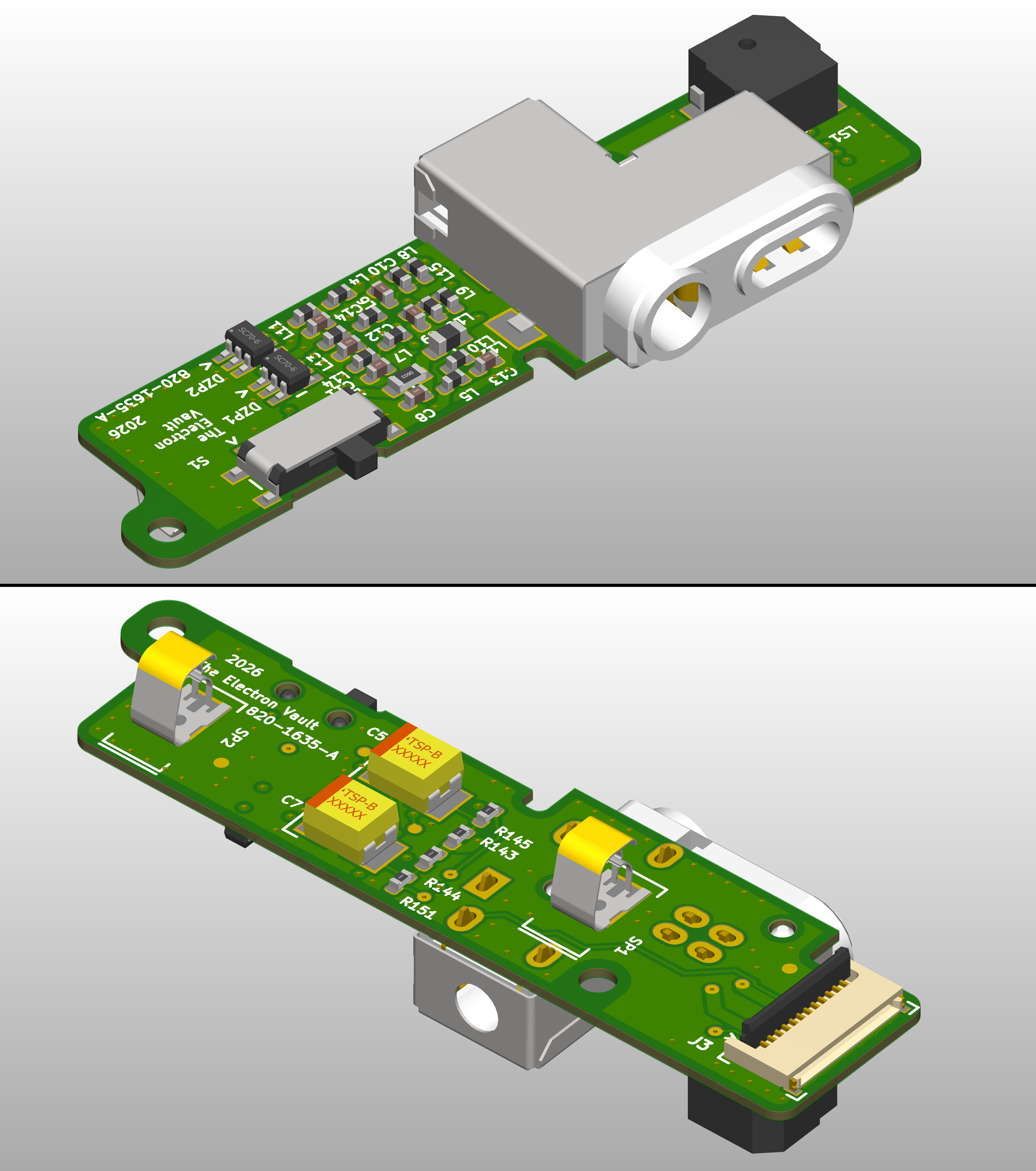

820-1635, from the project README
From the project README

820-1635 bill of materials (BOM)

49 components, 16 distinct parts.

QtyPartRefs
1
IPOD 4TH GEN COMBO JACK
Foxconn
J1
1
FF14-12A-R11BL-3J
DDK Ltd.
J3
2
BZX84C6V2TS-7-F
Diodes Incorporated
DZP1, DZP2
1
CSS-0578-SMT-TR
CUI Devices
LS1
1
SK-12C0405-SG 1.5 RT
C&K
S1
2
S7041-42R
Harwin Inc.
SP1, SP2
13
TP
TP1, TP2, TP3, TP4, TP5, TP6, TP7, TP8 +5
8
MMZ1005Y102CT000
TDK
L4, L5, L6, L7, L11, L12, L13, L14
4
BLM15AG121SN1D
Murata
L8, L9, L15, L16
1
MU1608-151Y
Bourns
L10
1
CRCW06030000Z0EA
0
Vishay Dale
L17
2
TPSB107K004R0250
100uF
KYOCERA AVX
C5, C7
7
CL05C101JB5NNNC
100pF
Samsung
C8, C9, C10, C11, C12, C13, C14
1
CRCW04028R20FKEDC
8.2
Vishay Dale
R11
2
CRCW04023K90FKEDC
3.9k
Vishay Dale
R143, R144
2
CRCW04023R30FKEDC
3.3
Vishay Dale
R145, R151

820-1635 design files

The KiCad project lives in the the-electron-vault/Apple repository on GitHub; these links point at the commit this page was built from.

820-1635: common questions

How big is the 820-1635 PCB?

The 820-1635 measures 44.6 × 11.6 mm, has 4 copper layers and is 0.575 mm thick.

How many components are on the 820-1635?

49 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the 820-1635 design files?

From the the-electron-vault/Apple repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 820-1635 design in my own project?

The repository has no license, so all rights stay with the-electron-vault. Use it as a reference, and ask the author before reusing the design.
