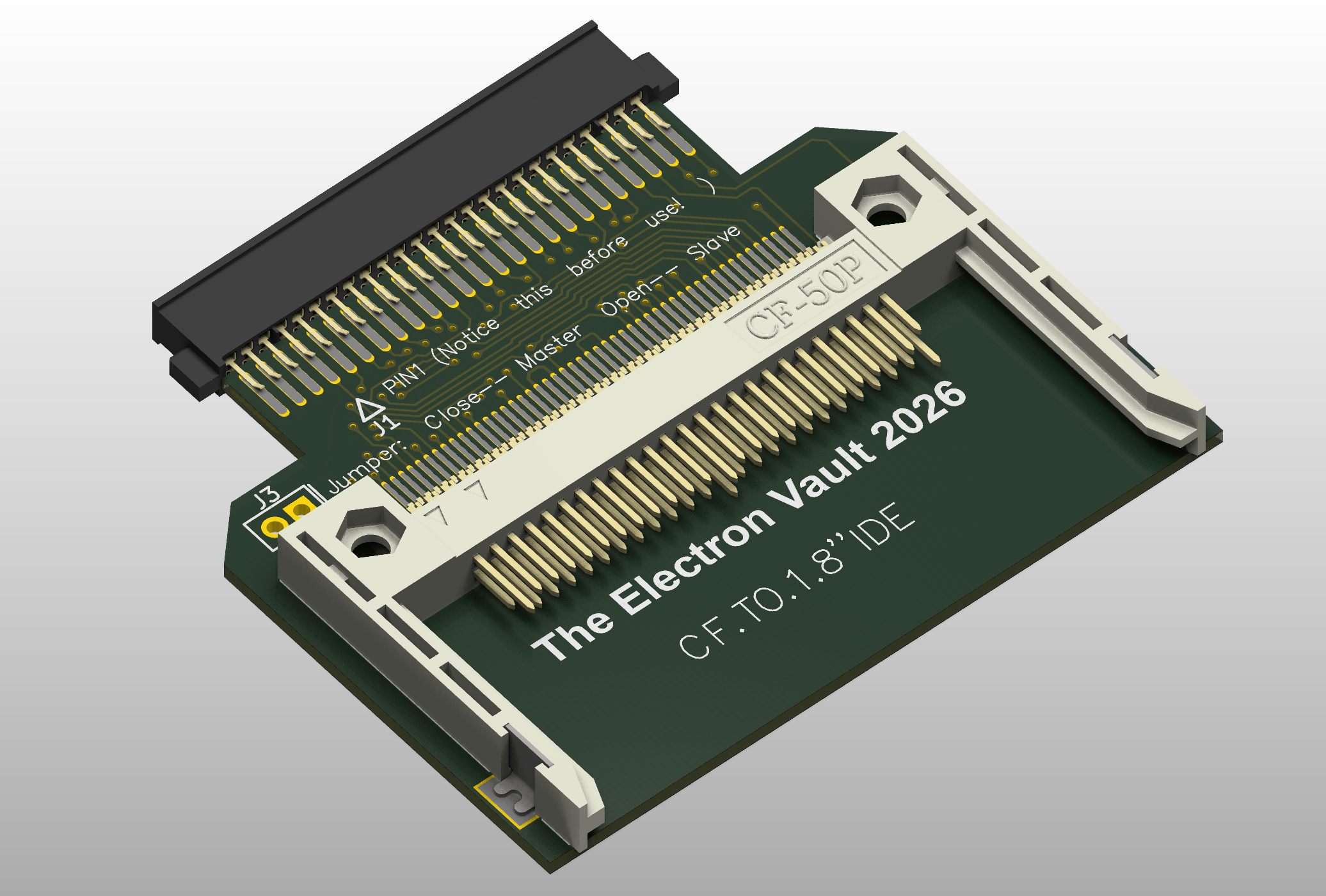

HXSP-09FC69
About the HXSP-09FC69 PCB
HXSP-09FC69 is an open source PCB design by the-electron-vault, published on GitHub. It is a 2-layer board measuring 50.5 × 40 mm, with 3 components from 3 distinct parts.
HXSP-09FC69 bill of materials (BOM)
3 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN-1.8"-IDE-SOCKET - | CONN-1.8-IDE-SOCKET | J1 |
| 1 | 139340-M0ATG330 ATG | 139340-M0ATG330 | J2 |
| 1 | CONN-HDR-2mm-1x2 - | CONN-HDR-2mm-1x2 | J3 |
HXSP-09FC69 design files
The KiCad project lives in the the-electron-vault/Apple repository on GitHub; these links point at the commit this page was built from.
HXSP-09FC69: common questions
How big is the HXSP-09FC69 PCB?
The HXSP-09FC69 measures 50.5 × 40 mm, has 2 copper layers and is 1.03 mm thick.
How many components are on the HXSP-09FC69?
3 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the HXSP-09FC69 design files?
From the the-electron-vault/Apple repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the HXSP-09FC69 design in my own project?
The repository has no license, so all rights stay with the-electron-vault. Use it as a reference, and ask the author before reusing the design.
