EEGFrontier
About the EEGFrontier PCB
EEGFrontier is an open source PCB design by TheusHen, published on GitHub under the MIT license. It is a 2-layer board measuring 55 × 41.5 mm, with 29 components from 11 distinct parts.
Other key parts include the 102010428 and ADS1299-4PAGR. By type, the board carries 12 capacitors, 11 resistors, 2 ICs, 2 diodes, 1 connector and 1 switch.
From the project

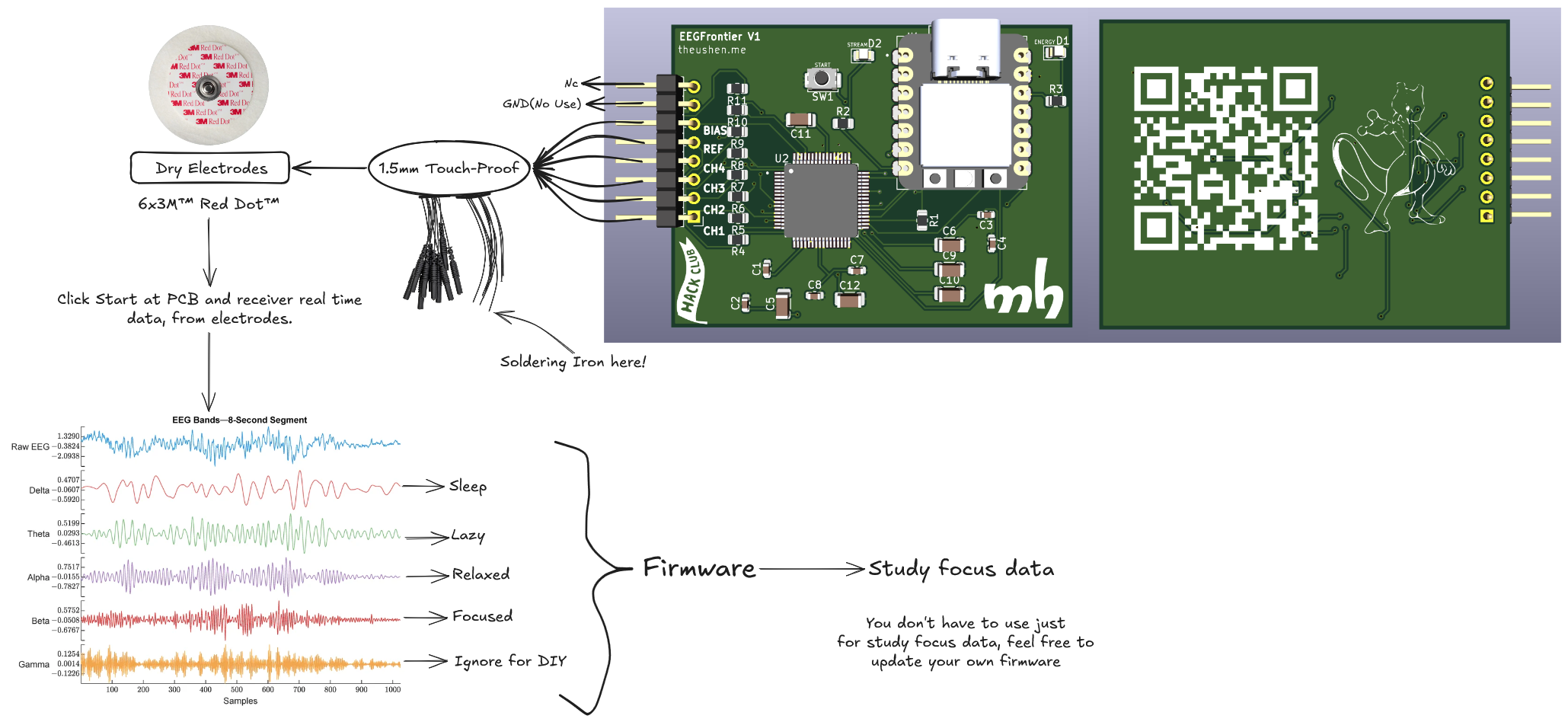

EEGFrontier is an open-source EEG device designed to measure focus and attention during study using real brain signals. It uses a custom-built PCB with a professional EEG analog front-end to capture raw EEG data and stream it in real time to a computer via USB.
EEGFrontier V1 is a compact EEG acquisition board built around the ADS1299-4PAGR and a Seeed XIAO RP2040.
This repository contains: - Hardware design files (KiCad) - Firmware (PlatformIO / Arduino) - Project assets and documentation images
Please check the bom/ folder for the Bill of Materials and pricing information. A dedicated folder was created specifically to document BOM details and cost references.
Main components on the EEGFrontier
EEGFrontier bill of materials (BOM)
29 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 102010428 | MODULE_102010428 | U1 |
| 1 | ADS1299-4PAGR | QFP50P1200X1200X120-64N | U2 |
| 1 | Conn_01x08_Pin | PinHeader_1x08_P2.54mm_Horizontal | J1 |
| 1 | SW_Push | SW_Push_SPST_NO_Alps_SKRK | SW1 |
| 2 | LED | LED_0805_2012Metric | D1, D2 |
| 5 | 100nF | C_0603_1608Metric | C1, C2, C3, C4, C7 |
| 6 | 10µF | C_1206_3216Metric | C5, C6, C9, C10, C11, C12 |
| 1 | 1µF | C_0603_1608Metric | C8 |
| 1 | 10k | R_0805_2012Metric | R1 |
| 2 | 1kΩ | R_0805_2012Metric | R2, R3 |
| 8 | 100k | R_0805_2012Metric | R4, R5, R6, R7, R8, R9, R10, R11 |
EEGFrontier design files
The KiCad project lives in the TheusHen/EEGFrontier repository on GitHub; these links point at the commit this page was built from.
EEGFrontier: common questions
How big is the EEGFrontier PCB?
The EEGFrontier measures 55 × 41.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the EEGFrontier?
29 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the EEGFrontier design files?
From the TheusHen/EEGFrontier repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the EEGFrontier design in my own project?
Yes, under the terms of its MIT license, which TheusHen chose for the repository.
