Usb board
About the Usb board
Usb board is an open source PCB design by TobleMiner, published on GitHub. It is a 2-layer board measuring 30 × 17.5 mm, with 8 components from 7 distinct parts.
By type, the board carries 3 resistors, 2 connectors, 2 diodes and 1 capacitor.
It belongs with the displays & leds, power & battery and sensors designs in this gallery.
From the project

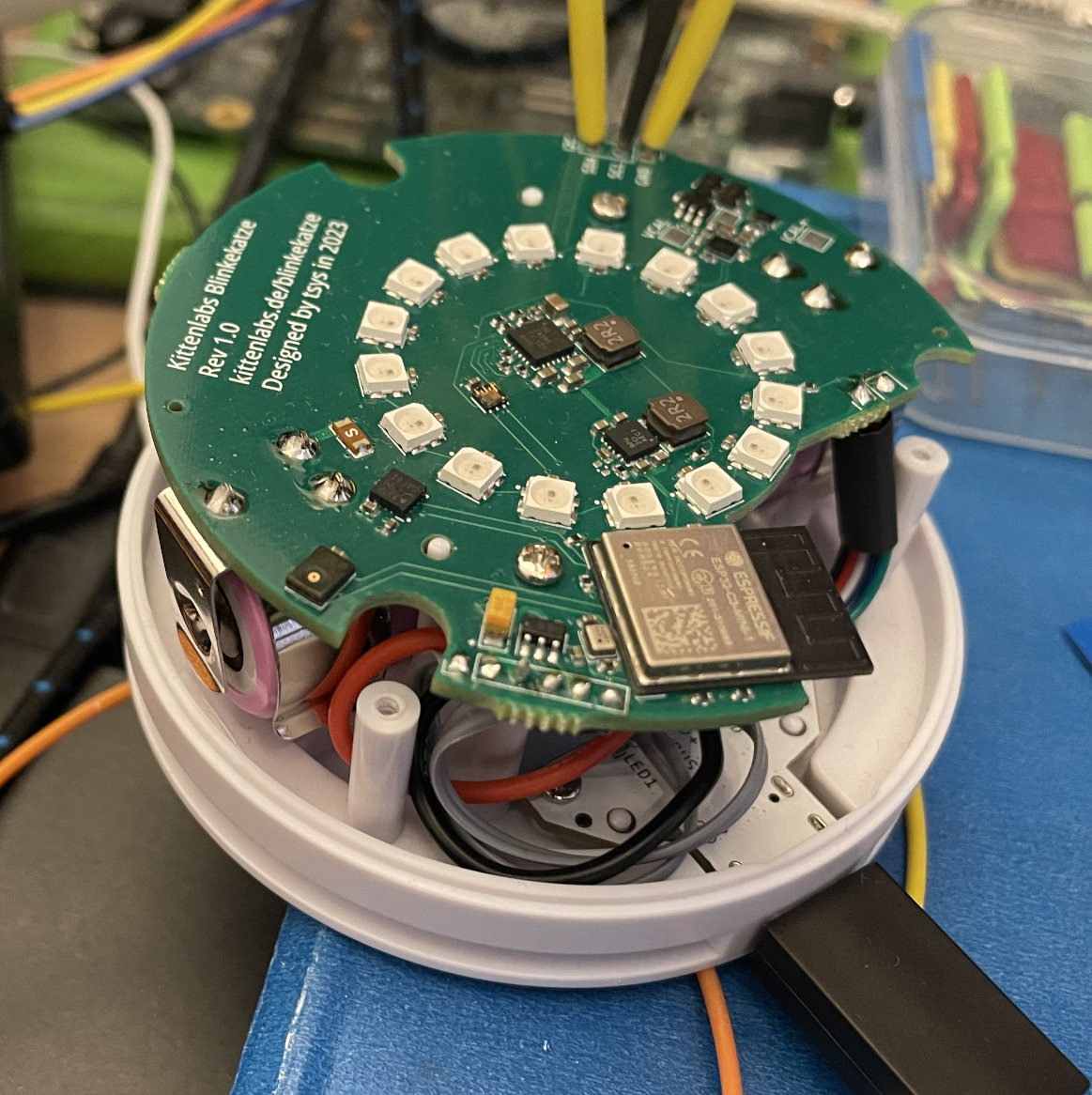

Blinkekatze, a replacement PCB to turn cat themed night-lights into interactive light displays
This is a replacement PCB for one version of cat themed night lights available via various online retailers.
It adds a number of RGB LEDs, sensors and wireless connectivity, enabling an interactive light display synchronized over a large number of Blinkekatzen.
The Blinkekatze is comprised of three PCBs: - The main board (this directory) - The USB board (located in /usb-board) - The original power- and mode-switch board from the nightlight
Usb board bill of materials (BOM)
8 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_Palconn_UTC16-G | J2 |
| 1 | Mainboard | 0.5K-QX-16PWB_16Pin_0.5mm | J3 |
| 1 | C72043 GRN | LED_0603_1608Metric | D1 |
| 1 | C2286 RED | LED_0603_1608Metric | D2 |
| 1 | 1NF 1nF | C_1206_3216Metric | C1 |
| 2 | 5.1K 5.1k | R_0402_1005Metric | R1, R2 |
| 1 | 100K 100k | R_0805_2012Metric | R3 |
Usb board design files
The KiCad project lives in the TobleMiner/blinkekatze repository on GitHub; these links point at the commit this page was built from.
Usb board: common questions
How big is the Usb board?
The Usb board measures 30 × 17.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Usb board?
8 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Usb board design files?
From the TobleMiner/blinkekatze repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Usb board design in my own project?
The repository has no license, so all rights stay with TobleMiner. Use it as a reference, and ask the author before reusing the design.
