PBP-NGFF-A-E-adapter

TobleMiner·PBP-NGFF-A-E-adapter

PBP-NGFF-A-E-adapter PCB layout, top view — open source board by TobleMiner

About the PBP-NGFF-A-E-adapter PCB

PBP-NGFF-A-E-adapter is an open source PCB design by TobleMiner, published on GitHub under the MIT license. It is a 2-layer board measuring 70.5 × 32 mm, with 17 components from 13 distinct parts.

Other key parts include the TPS63001. By type, the board carries 5 capacitors, 5 resistors, 2 connectors, 2 diodes, 1 IC and 1 fuse.

It belongs with the iot & wireless designs in this gallery.

From the project

A/E Key NGFF adapter for the Pinebook Pro. Designed as drop-in replacement for the NVMe adapter.

Pinebook Pro M.2 WiFi adapter =============================

The M.2 A/E key adapter enables the use of M.2 WiFi cards in the Pinebook Pro ARM laptop.

This adapter was designed as a replacement for the available NVMe M.2 (M-key) adapter. It uses the same flat flex cable, mounting screws and mounting position.

USB is not present on the PBP FFC and needs to be connected manually if required. Test points for D- and D+ are present on the PCB. Most WiFi+Bluetooth combo cards use USB for Bluetooth, but the PBPs internal UART HCI bluetooth adapter can still be used, even after disabling the SDIO…

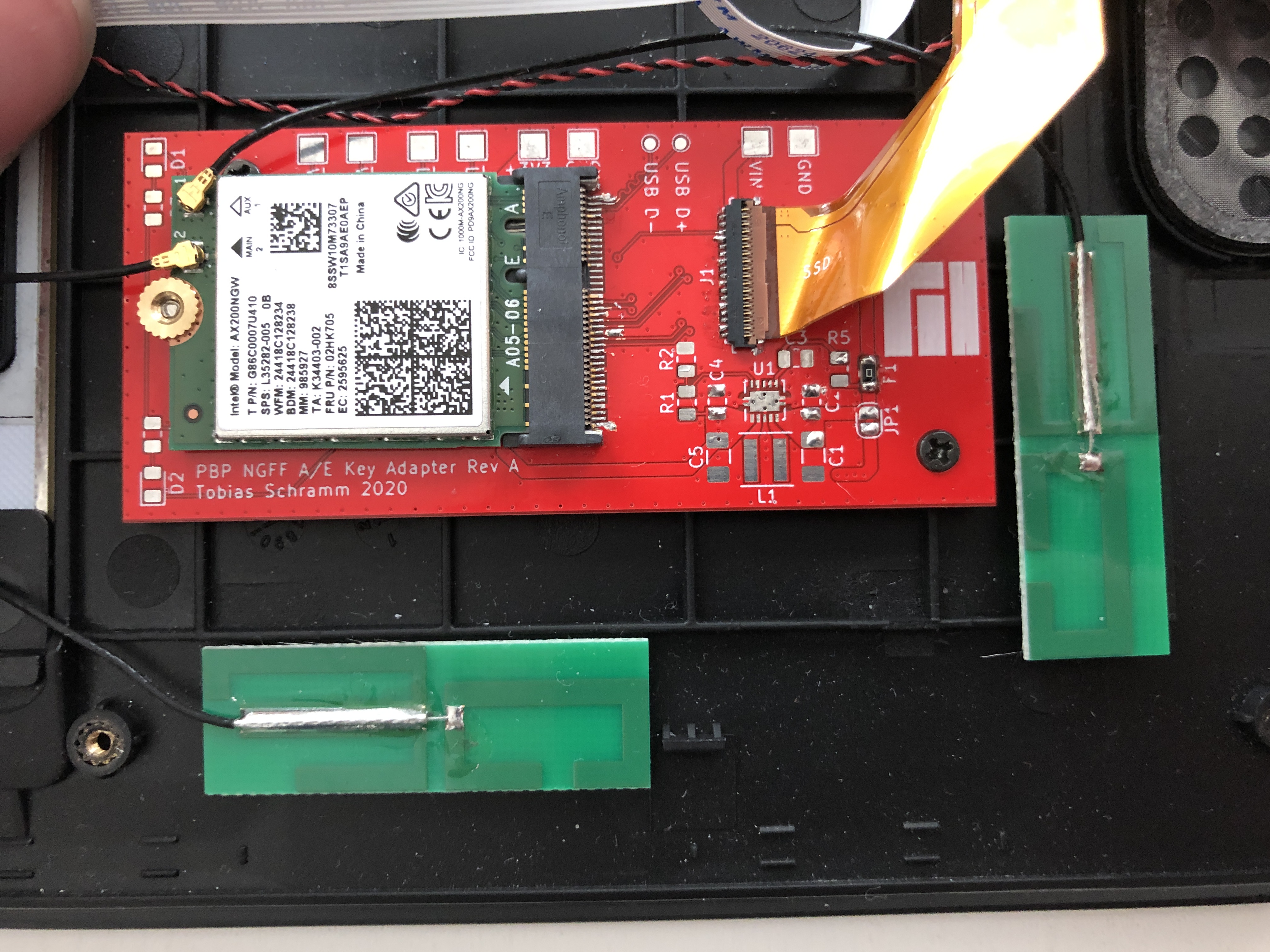

PBP-NGFF-A-E-adapter, from the project README
From the project README

Main components on the PBP-NGFF-A-E-adapter

TPS63001

PBP-NGFF-A-E-adapter bill of materials (BOM)

17 components, 13 distinct parts.

QtyPartRefs
1
TPS63001
U1
1
Conn_01x35_MountingPin
J1
1
M.2-NGFF-A+E-Key
J2
1
2 A
F1
2
LED
D1, D2
1
2.2 µH
L1
2
DNP
C1, C5
2
10 µF
C2, C4
1
100 nF
C3
1
0 R
R1
1
DNP
R2
2
330 R
R3, R4
1
100 R
R5

PBP-NGFF-A-E-adapter design files

The KiCad project lives in the TobleMiner/PBP-NGFF-A-E-adapter repository on GitHub; these links point at the commit this page was built from.

PBP-NGFF-A-E-adapter: common questions

How big is the PBP-NGFF-A-E-adapter PCB?

The PBP-NGFF-A-E-adapter measures 70.5 × 32 mm, has 2 copper layers and is 1 mm thick.

How many components are on the PBP-NGFF-A-E-adapter?

17 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the PBP-NGFF-A-E-adapter design files?

From the TobleMiner/PBP-NGFF-A-E-adapter repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PBP-NGFF-A-E-adapter design in my own project?

Yes, under the terms of its MIT license, which TobleMiner chose for the repository.
