Ida

tomasr8·ida·kicad/micropad.kicad_pcb

Ida PCB layout, top view — open source board by tomasr8

About the Ida PCB

Ida is an open source PCB design by tomasr8, published on GitHub. It is a 2-layer board measuring 38.3 × 40.4 mm, with 6 components from 5 distinct parts.

Other key parts include the ProMicro. By type, the board carries 4 switches, 1 IC and 1 diode.

It belongs with the keyboards designs in this gallery.

From the project

3-key macropad

- Bill of Materials - Getting the parts made - Build guide - Programming - Schematics

- 2x 12x1 pin header - 1x Diode (1N4148 DO-35) - 1x Push button for resetting the board (4x4x1.5mm) - 1x Pro Micro or something with compatible pinout - 3x Keyboard switch - 1x 2u stabilizer - 4x 8mm rubber feet - 3x M2.5 screws - Steady hands

The gerbers are included in the repo in the kicad directory. You can simply upload the gerbers to a service like JLCPCB.

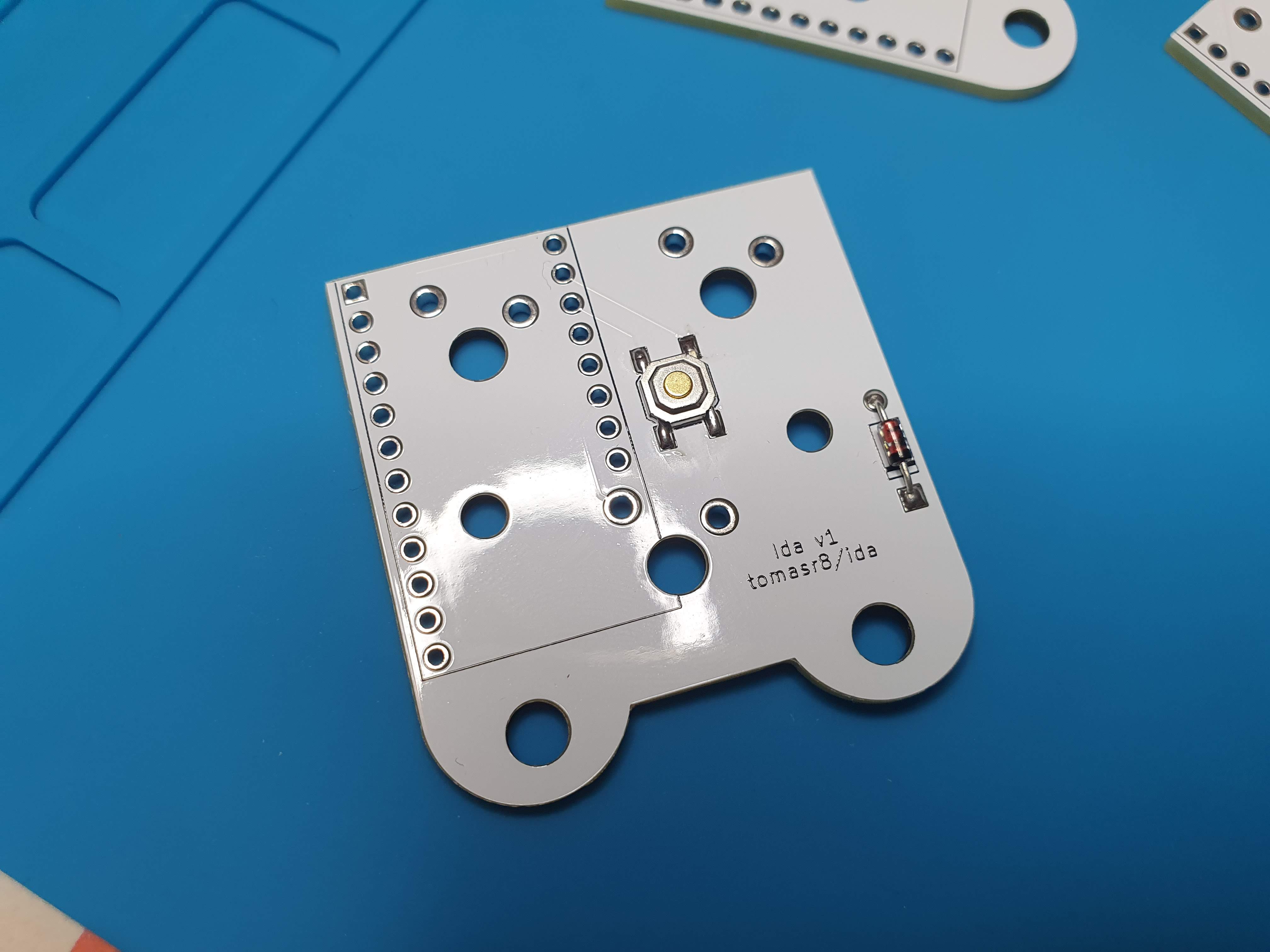

Ida, from the project README
From the project README

Main components on the Ida

ProMicro

Ida bill of materials (BOM)

6 components, 5 distinct parts.

QtyPartRefs
1
ProMicro
U1
2
SW_Push
SW1, SW2
1
SW_Push
SW3
1
SW_Push
SW4
1
1N4148
D1

Ida design files

The KiCad project lives in the tomasr8/ida repository on GitHub; these links point at the commit this page was built from.

Ida: common questions

How big is the Ida PCB?

The Ida measures 38.3 × 40.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ida?

6 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ida design files?

From the tomasr8/ida repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Ida design in my own project?

The repository has no license, so all rights stay with tomasr8. Use it as a reference, and ask the author before reusing the design.
