Vonreg Top
About the Vonreg Top PCB
Vonreg Top is an open source PCB design by tompi, published on GitHub. It is a 2-layer board measuring 110 × 81.5 mm, with 17 components from 3 distinct parts.
By type, the board carries 13 relays and 2 resistors.
It belongs with the keyboards designs in this gallery.
From the project

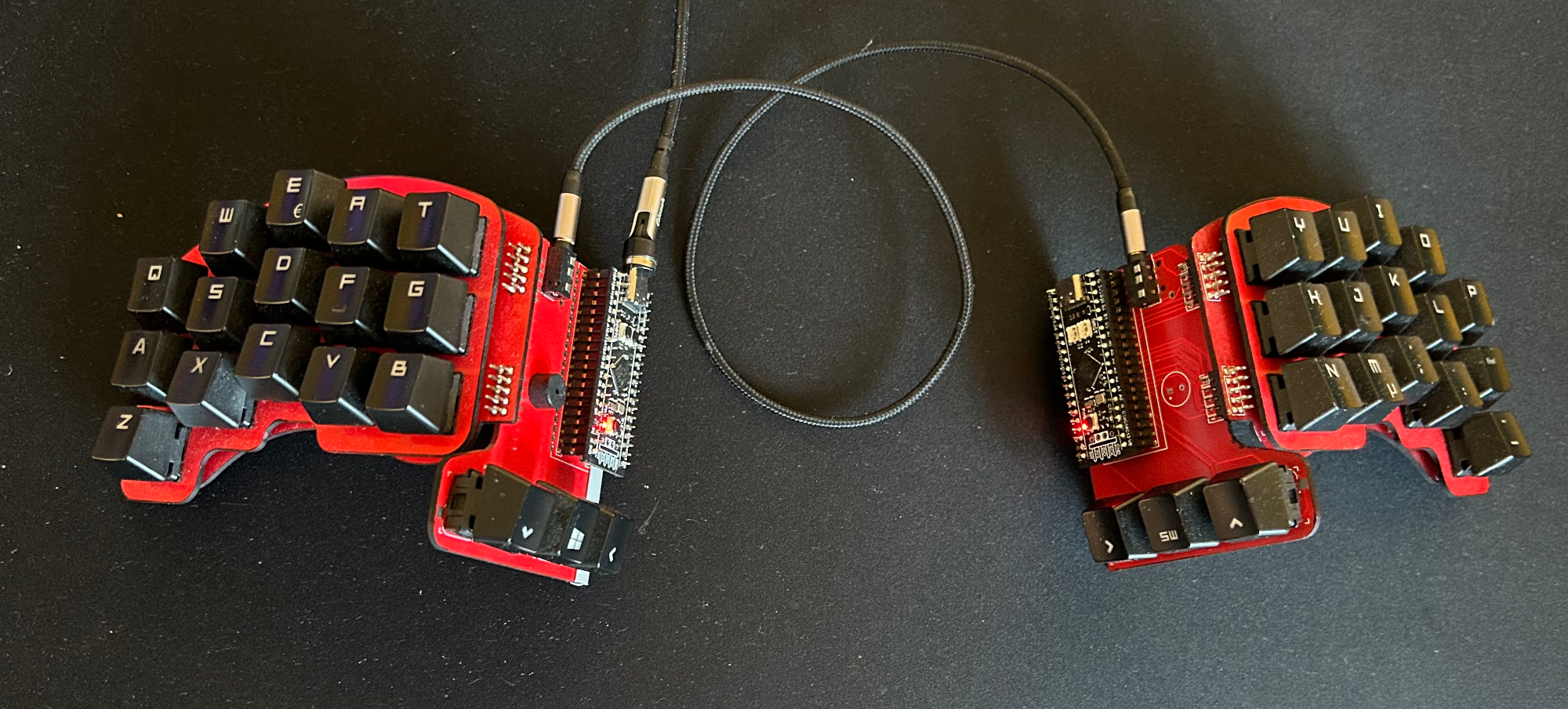

The Vonreg is an attempt at exploiting 3 dimensions with just pcb. (vertical thumb cluster)
The Vonreg is an attempt at exploiting 3 dimensions with just pcb. (vertical thumb cluster)
N.B: Although this board works fine, its a bit difficult to use, since it will slide around, due to only 2 edges touching the table.
To build it you need to order pcbs, check out the releases.
You will also need the following parts: 2 x Blackpill MCU 2 x TRRS Jack 36 x MX switches and keycaps 4 x 2.54mm Double Row Right angle Male Breakaway PCB Board Pin Header Connector(2x5 pins) 1 x USB C cable 1 x TRRS cable (only need 3 poles)
Vonreg Top bill of materials (BOM)
17 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 13 | SW_Push | Kailh_socket_MX_optional_reversible | K1, K2, K3, K4, K5, K6, K7, K8 +5 |
| 2 | Conn_02x05_Odd_Even | PinHeader_2x05_P2.54mm_Vertical | PinsTopA1, PinsTopB1 |
| 2 | SW_Push | Kailh_socket_MX_optional_reversible | R13, R14 |
Vonreg Top design files
The KiCad project lives in the tompi/vonreg repository on GitHub; these links point at the commit this page was built from.
- Layouttop/vonreg_top.kicad_pcb
- Schematictop/vonreg_top.kicad_sch
Vonreg Top: common questions
How big is the Vonreg Top PCB?
The Vonreg Top measures 110 × 81.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Vonreg Top?
17 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Vonreg Top design files?
From the tompi/vonreg repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Vonreg Top design in my own project?
The repository has no license, so all rights stay with tompi. Use it as a reference, and ask the author before reusing the design.
