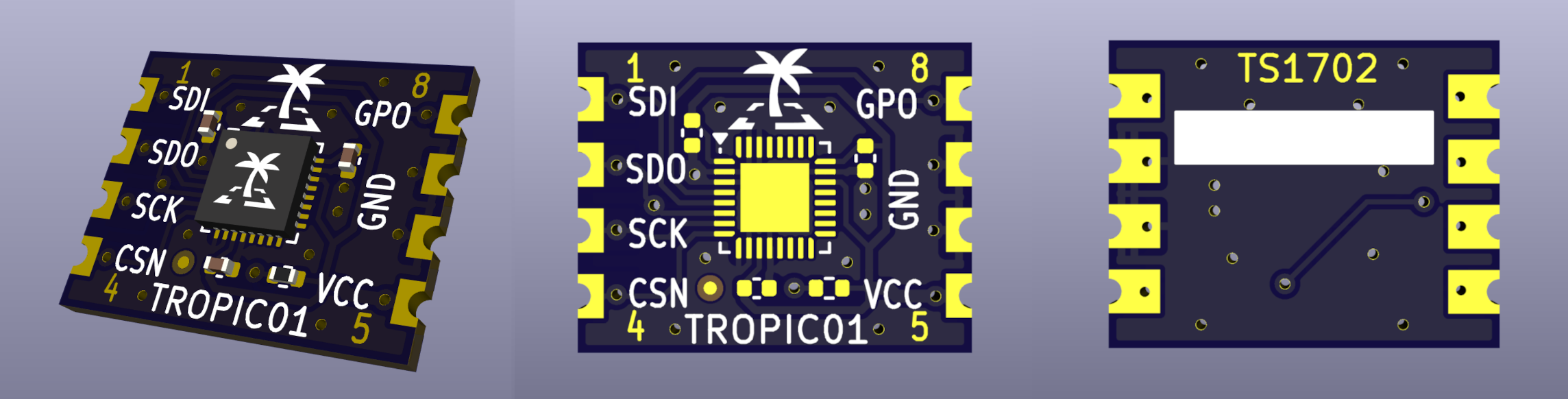

Ts17-tropic01-mini
About the Ts17-tropic01-mini PCB
Ts17-tropic01-mini is an open source PCB design by tropicsquare, published on GitHub under the BSD-3-Clause-Clear license. It is a 2-layer board measuring 15.2 × 12 mm, with 5 components from 3 distinct parts.
Other key parts include the TROPIC01_chip. By type, the board carries 3 capacitors, 1 IC and 1 resistor.
From the project
This repository contains design files for the TROPIC01 minimal integration board TS17xx. The ultimately small board for any purpose. Just control pins with power pins and that’s it.
This repository contains design files for the TROPIC01 minimal integration board TS17xx. The ultimately small board for any purpose. Just control pins with power pins and that’s it.
.kicadpro - KiCad project file .kicadsch - Schematic file .kicadpcb - PCB layout file ./gerber/ - Generated gerber data for PCB manufacturing ./bom/ - Bill of materials including order codes, interactive BOM and assembly coordinates ./img/ - Images (PCB renders) schematics.pdf - Exported schematic diagrams (latest version)
Main components on the Ts17-tropic01-mini
Ts17-tropic01-mini bill of materials (BOM)
5 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TROPIC01_chip | QFN-32-1EP_4x4mm_P0.4mm_EP2.65x2.65mm | IC1 |
| 3 | 100n | C_0402_1005Metric | C1, C2, C3 |
| 1 | 47k | R_0402_1005Metric | R1 |
Ts17-tropic01-mini design files
The KiCad project lives in the tropicsquare/ts17-tropic01-mini-pcb repository on GitHub; these links point at the commit this page was built from.
- Layoutts17-tropic01-mini.kicad_pcb
- Schematicts17-tropic01-mini.kicad_sch
Ts17-tropic01-mini: common questions
How big is the Ts17-tropic01-mini PCB?
The Ts17-tropic01-mini measures 15.2 × 12 mm, has 2 copper layers and is 1.09 mm thick.
How many components are on the Ts17-tropic01-mini?
5 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Ts17-tropic01-mini design files?
From the tropicsquare/ts17-tropic01-mini-pcb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Ts17-tropic01-mini design in my own project?
Yes, under the terms of its BSD-3-Clause-Clear license, which tropicsquare chose for the repository.
