Bny6x2 pcb plt cut gh60

Tsuiha·BNY6XV2·Plate/MX/bny6x2_pcb_plt_cut_gh60.kicad_pcb

Bny6x2 pcb plt cut gh60 layout, top view — open source board by Tsuiha
Simulate this board

About the Bny6x2 pcb plt cut gh60

Bny6x2 pcb plt cut gh60 is an open source PCB design by Tsuiha, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 285.2 × 94.7 mm, with 62 components from 7 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

BNY6X V2 is 60% KBD for MX or KS-33B switches, and compatible GH60 case.

「BNY6X V2」は2025年に製作した60%キーボードです。 多親指キー＋矢印キー配列、MXとロープロに両対応、GH60互換ケース対応、の特徴があります。

- 対応マウント方式 GH60互換設計で、6か所のネジ穴が設けられています。 加えて外周に5か所の切り欠きが設けられており、独自のプレートマウントにも対応します。

- 対応スイッチ 「Cherry MX 」または「KS-33B GateronLowProfile 3.0」に互換性のあるスイッチが使用できます。 キースイッチはMX用ホットスワップソケットにてPCBに接続します。 ロープロ対応及び低背化のため基板は1.2mm を使用します。

- サイドスイッチ 背面type-C横には3方向（左、右、押し込み）のレバースイッチが取り付け可能です。 既製品のGH60互換ケースに使用する際は、干渉するためレバースイッチは実装しない必要があります。

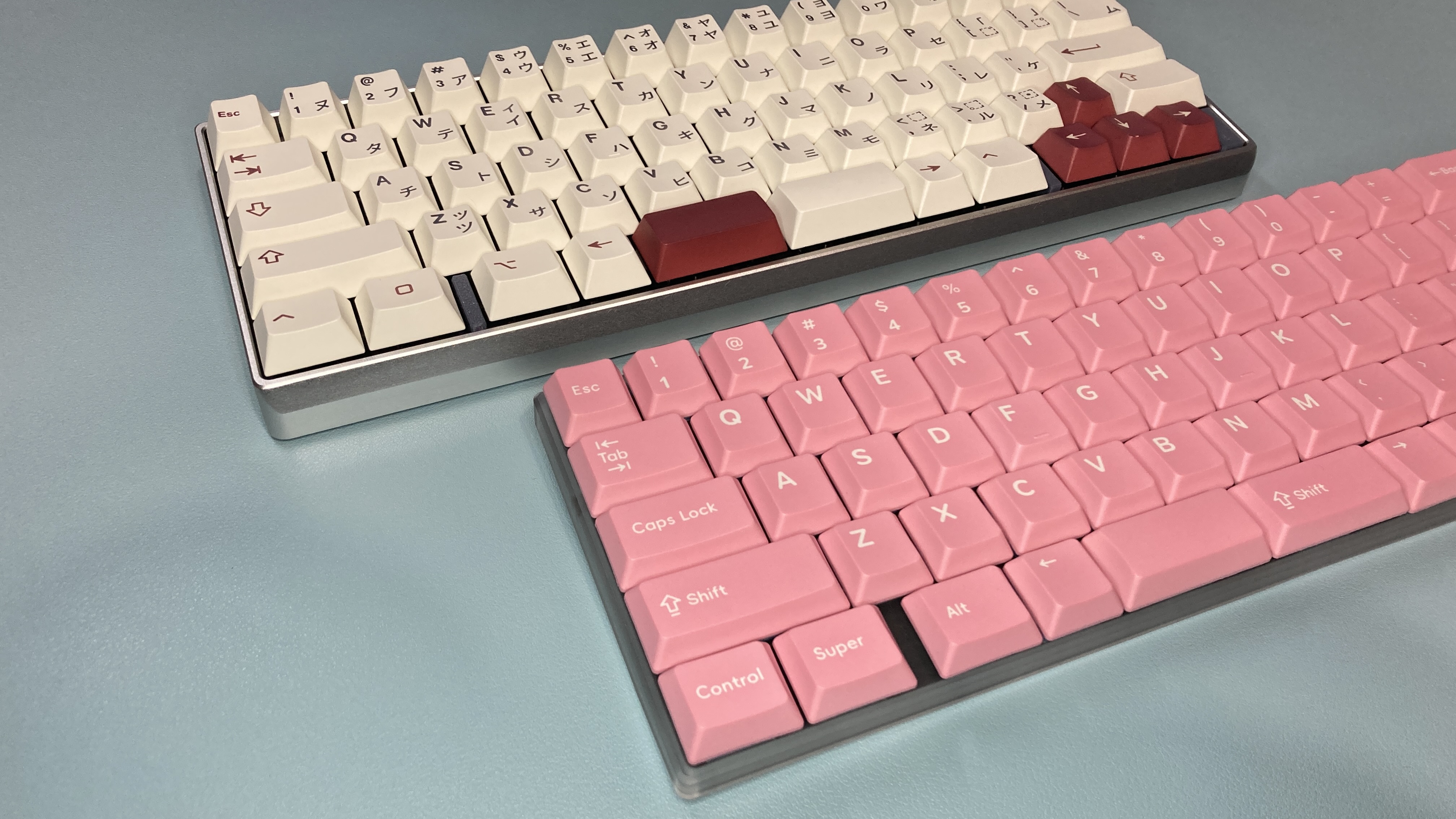

Bny6x2 pcb plt cut gh60, from the project README
From the project README

Bny6x2 pcb plt cut gh60 bill of materials (BOM)

62 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
48
SW_PUSH
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +40
2
SW_PUSH_2
SW14, SW59
3
SW_PUSH_15
SW15, SW28, SW58
2
SW_PUSH_175
SW29, SW54
2
SW_PUSH_225
SW41, SW42
4
SW_PUSH_125
SW55, SW56, SW57, SW62
1
SW_PUSH_15
SW60

Bny6x2 pcb plt cut gh60 design files

The KiCad project lives in the Tsuiha/BNY6XV2 repository on GitHub; these links point at the commit this page was built from.

Bny6x2 pcb plt cut gh60: common questions

How big is the Bny6x2 pcb plt cut gh60?

The Bny6x2 pcb plt cut gh60 measures 285.2 × 94.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bny6x2 pcb plt cut gh60?

62 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Bny6x2 pcb plt cut gh60 design files?

From the Tsuiha/BNY6XV2 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Bny6x2 pcb plt cut gh60 design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which Tsuiha chose for the repository.
