Phase frequency detector
About the Phase frequency detector PCB
Phase frequency detector is an open source PCB design by TU-Darmstadt-APQ, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 160 × 100 mm, with 86 components from 37 distinct parts.
Other key parts include the HMC439QS16GE, LT3045EMSE#PBF, LT3094EMSE#PBF, ADA4896-2ARMZ and HMC365S8GETR. By type, the board carries 39 capacitors, 26 resistors, 9 ICs, 6 connectors, 3 diodes and 2 jumpers.
From the project
Use the HMC439 phase-frequency detector to phase-lock a laser beat note to an external reference frequency between 10MHz and 1.3GHz.

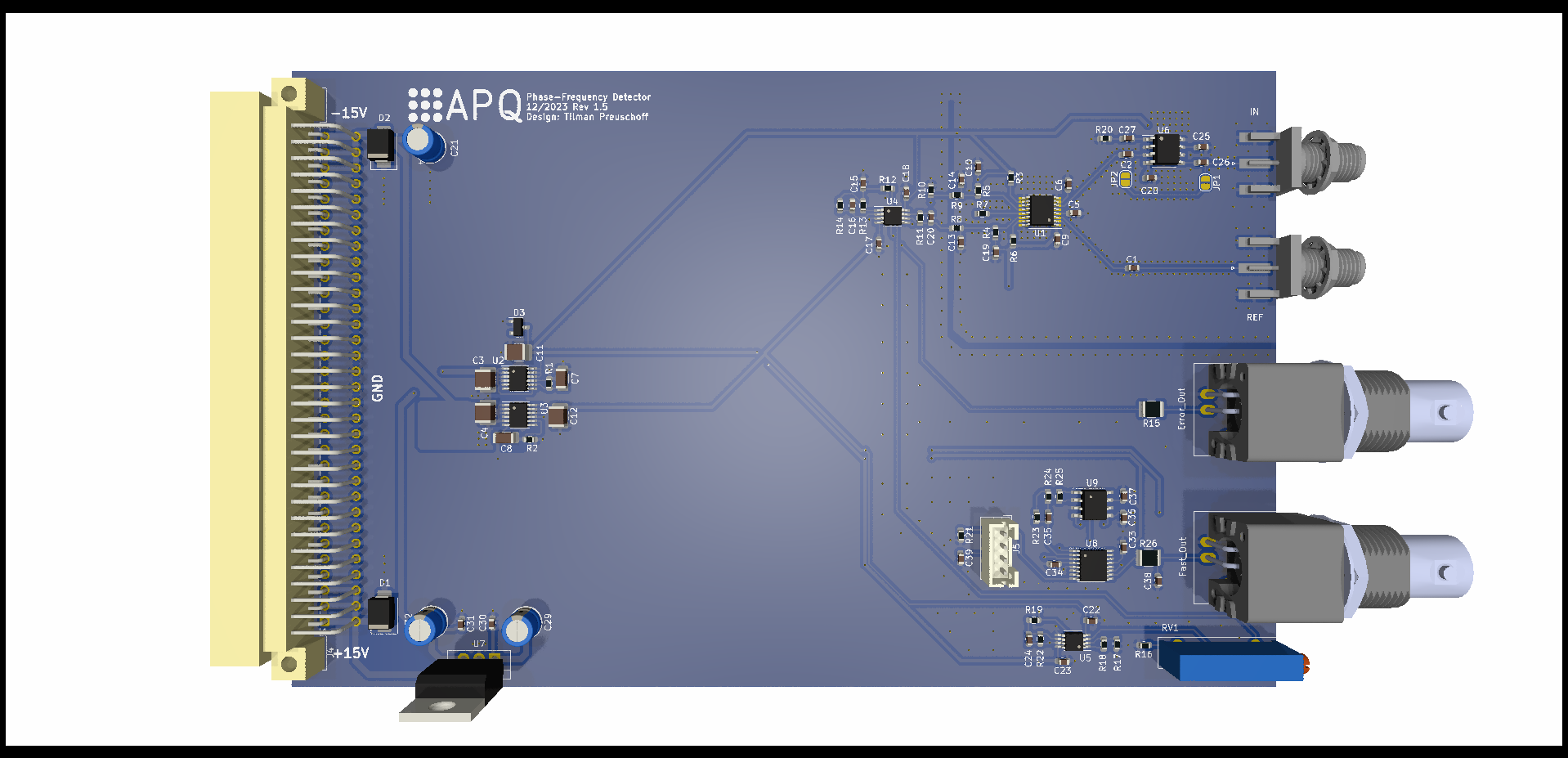

Phase-Frequency Detector ===================== This repository contains the KiCad design files of a phase-frequency detector designed for application in optical phase-locked loops (OPLL). The detector compares a beat-note signal with a reference signal and creates an output signal proportional to the phase deviation of the beat-note from the reference. Optionally, the beat-note input can be equipped with a divider (default: 4) for a larger input-frequency range. The module also comprises a fast analog proportional-derivative controller for high-bandwidth feedback.
Main components on the Phase frequency detector
Phase frequency detector bill of materials (BOM)
86 components, 37 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | HMC439QS16GE HMC439QS16G | QSOP-16_3.9x4.9mm_P0.635mm_EP_2.3mmx1.75mm_DNF | U1 |
| 1 | LT3045EMSE#PBF LT3045EMSE | MSOP-12-1EP_3x4mm_P0.65mm_EP1.65x2.85mm | U2 |
| 1 | LT3094EMSE#PBF LT3094EMSE | MSOP-12-1EP_3x4mm_P0.65mm_EP1.65x2.85mm | U3 |
| 2 | ADA4896-2ARMZ | MSOP-8_3x3mm_P0.65mm_mod | U4, U5 |
| 1 | HMC365S8GETR HMC365S8G | SOIC-8-1EP_3.9x4.9mm_P1.27mm_EP2.41x3.81mm | U6 |
| 1 | L7808ABV-DG L7808 | TO-220-3_Vertical | U7 |
| 1 | ADG1613BRUZ ADG1613 | TSSOP-16_4.4x5mm_P0.65mm | U8 |
| 1 | LTC6228IS8#PBF LTC6228xS8 | SO-8_3.9x4.9mm_P1.27mm | U9 |
| 1 | 132289 REF | SMA_Amphenol_132289_EdgeMount | J1 |
| 1 | 132289 IN | SMA_Amphenol_132289_EdgeMount | J2 |
| 1 | CONBNC002 Error_Out | BNC_Amphenol_B6252HB-NPP3G-50_Horizontal | J3 |
| 1 | 9031646921 C64AC | DIN41612_C_2x32_Male_Horizontal_THT | J4 |
| 1 | B4B-PH-K-S Switch | JST_PH_B4B-PH-K_1x04_P2.00mm_Vertical | J5 |
| 1 | CONBNC002 Fast_Out | BNC_Amphenol_B6252HB-NPP3G-50_Horizontal | J6 |
| 2 | no_divider | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP1, JP2 |
| 1 | M43P501KB40 500 | Potentiometer_Vishay_43_Horizontal | RV1 |
| 2 | SMBJ40CA-QH SMB | D_SMB | D1, D2 |
| 1 | PMEG2010AET,215 PMEG2010 | SOT-23 | D3 |
| 4 | CGJ3E2C0G2A101J080AA 100p | C_0603_1608Metric | C1, C2, C25, C26 |
| 4 | C3225X7R2A106K250AC 10u | C_1210_3225Metric | C3, C4, C11, C12 |
Show 17 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | C0603X102K4RACAUTO 1n | C_0603_1608Metric | C5, C6, C10, C19, C27, C35 |
| 2 | GRM3195C2A104JA01D 100n | C_1206_3216Metric | C7, C8 |
| 13 | C0603C104K5RAC3121 100n | C_0603_1608Metric | C9, C17, C18, C22, C23, C28, C30, C31 +5 |
| 4 | VJ0603A150JXBAC 15p | C_0603_1608Metric | C13, C14, C20, C24 |
| 1 | VJ0603A561JXAAC 560p | C_0603_1608Metric | C15 |
| 1 | VJ0603A151JXBAC 150p | C_0603_1608Metric | C16 |
| 3 | ECA-1AM101I 100u | CP_Radial_D5.0mm_P2.50mm | C21, C29, C32 |
| 1 | DNF | C_0603_1608Metric | C38 |
| 2 | ERJ-UP3F4992V 49.9k | R_0603_1608Metric | R1, R2 |
| 13 | RC0603FR-13200RL 200 | R_0603_1608Metric | R3, R4, R5, R8, R9, R12, R13, R17 +5 |
| 3 | AC0603FR-0720RL 20 | R_0603_1608Metric | R6, R7, R16 |
| 2 | RC0603FR-13390RL 390 | R_0603_1608Metric | R10, R11 |
| 1 | RC0603FR-13100RL 100 | R_0603_1608Metric | R14 |
| 2 | CRCW121049R9FKEA 49.9 | R_1210_3225Metric | R15, R26 |
| 1 | ERJ-UP3F49R9V 49.9 | R_0603_1608Metric | R20 |
| 1 | ERJ-3GEYJ103V 10k | R_0603_1608Metric | R21 |
| 1 | SDR03EZPF4R70 4.7 | R_0603_1608Metric | R24 |
