Reviungdash top plate flipped

tumler·ReviungDash·reviungdash52/pcb/reviungdash_top-plate_flipped.kicad_pcb

Reviungdash top plate flipped PCB layout, top view — open source board by tumler

About the Reviungdash top plate flipped PCB

Reviungdash top plate flipped is an open source PCB design by tumler, published on GitHub under the MIT license. It is a 2-layer board measuring 292.1 × 128.6 mm, with 52 components from 1 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

Single Body Mechanical Keyboard inspired by the Reviung and Ergodash keyboards

The REVIUNGDASH52 is a 52 key column staggered keyboard. Based on the REVIUNGDASH47 but with a larger thumb cluster.

REVIUNGDASH52 The REVIUNGDASH47 is 47/8 key column staggered keyboard. Inspired by the Reviung41 (& ERGODASH) hence the name!

Addition of a thumb cluster - inspired by the Ergodash cluster 2 Extra thumb keys each side Left / Right sides further apart to accomodate thumb cluster, while remaining as close as possible to remain small yet comfortable Every layer designed as PCBs (could easily be swapped out for acrylic / metal layers)

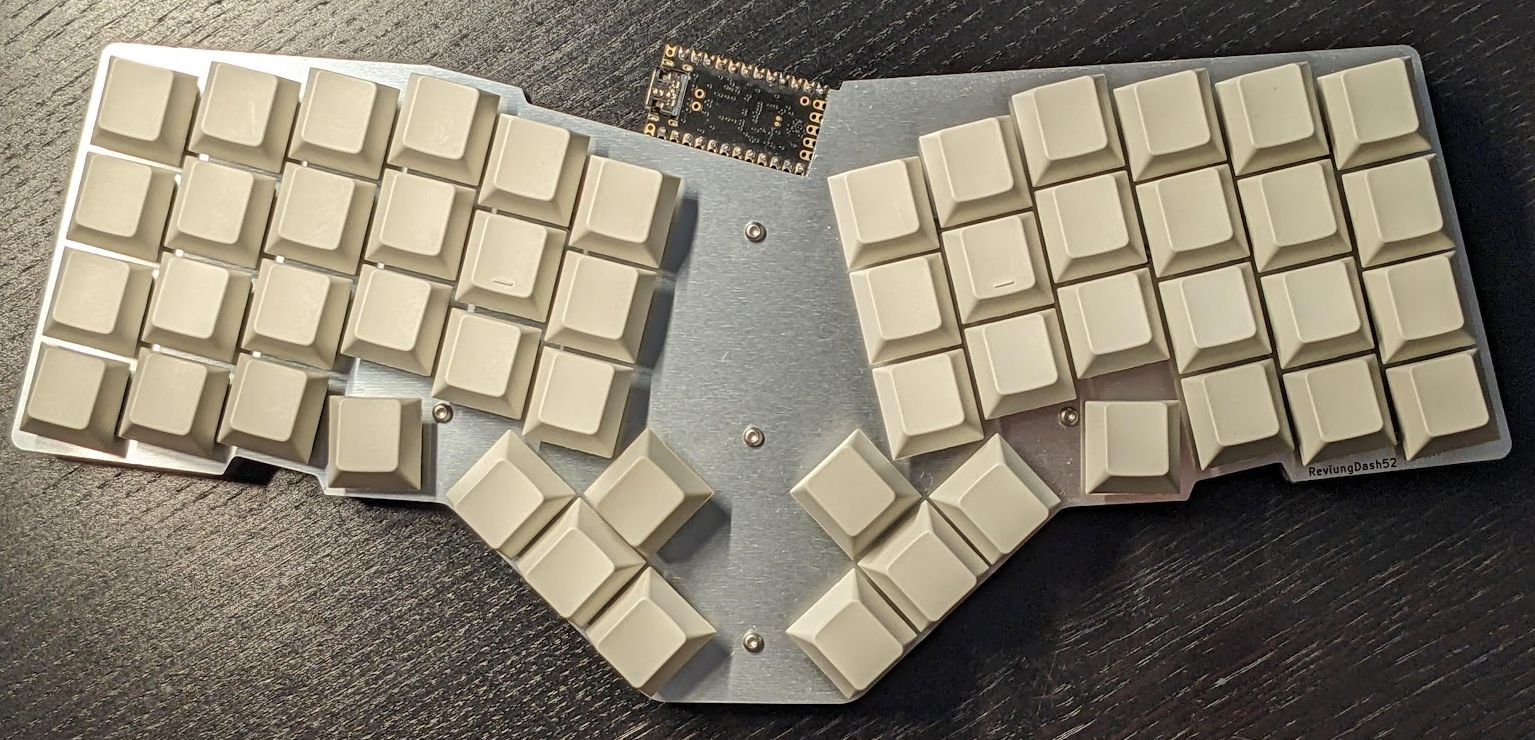

Reviungdash top plate flipped, from the project README
From the project README

Reviungdash top plate flipped bill of materials (BOM)

52 components, 1 distinct parts.

QtyPartRefs
52
SW_PUSH
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +44
