Reviungdash
About the Reviungdash PCB
Reviungdash is an open source PCB design by tumler, published on GitHub under the MIT license. It is a 2-layer board measuring 260.9 × 107.2 mm, with 110 components from 7 distinct parts.
Other key parts include the ProMicro. By type, the board carries 49 switches, 48 diodes, 11 inductors and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

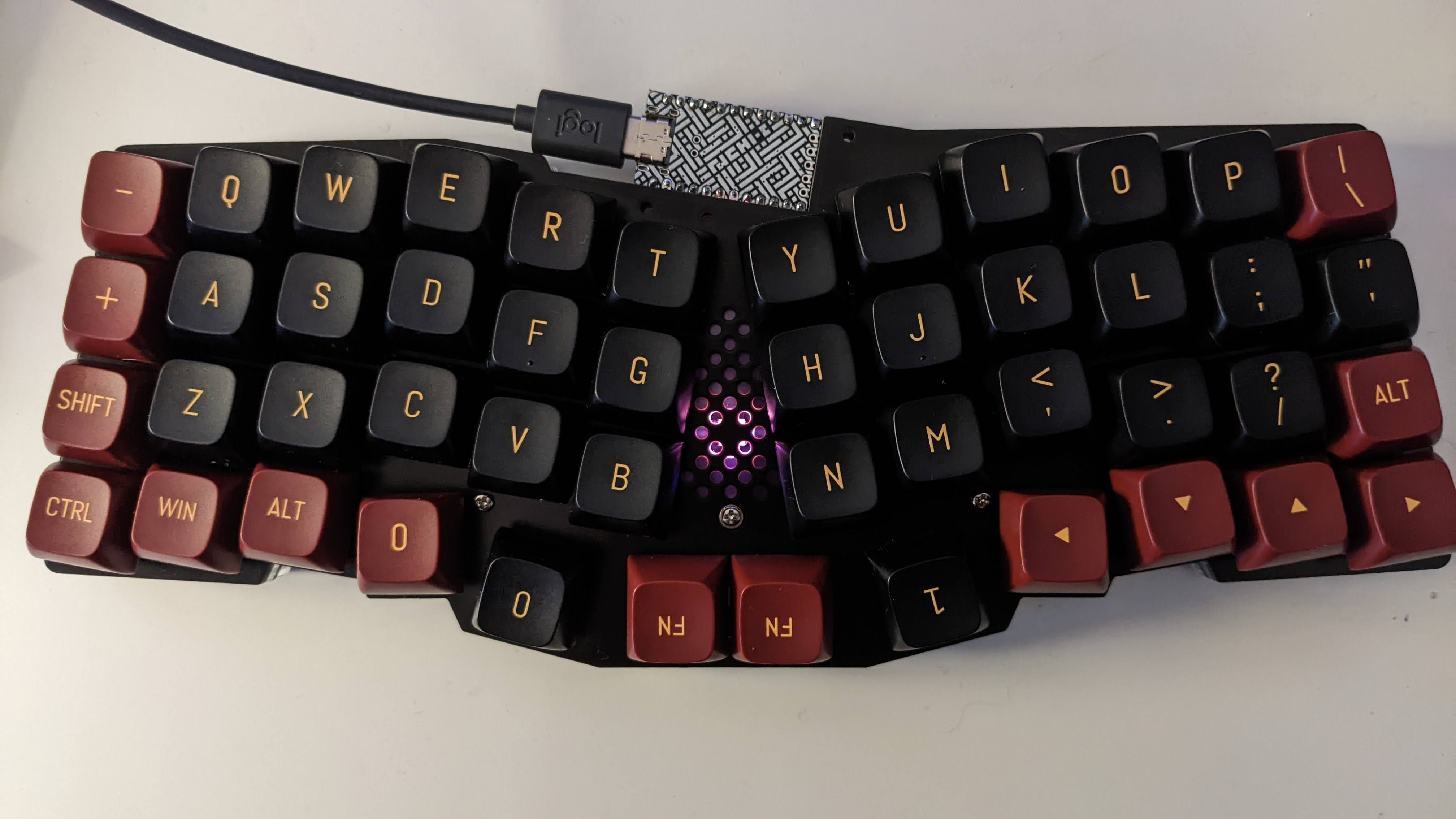

Single Body Mechanical Keyboard inspired by the Reviung and Ergodash keyboards
The REVIUNGDASH47 is 47/8 key column staggered keyboard. Inspired by the Reviung41 (& ERGODASH) hence the name!
Addition of 6 corner keys Spacebar can be either a single switch or have 2x 1u switches (inspired by the Ergodash which allows choosing the thumb keys) * The RGB led on the front was rerouted to be first (as I would rather have 1 led and don't use the underglow - this allows to not have to solder all the other leds but they can be if wanted later)
Main components on the Reviungdash
Reviungdash bill of materials (BOM)
110 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro | U1 |
| 1 | SW_PUSH | ResetSW_1side | RESET1 |
| 47 | SW_PUSH | MXOnly-1U-Hotswap | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +39 |
| 1 | SW_PUSH | MXOnly-2U-Hotswap-ReversedStabilizers | SW37 |
| 1 | SW_2U_PUSH | MXOnly-1U-Hotswap | SW39 |
| 48 | 1N4148W | D3_SMD_1side | D1, D2, D3, D4, D5, D6, D7, D8 +40 |
| 11 | WS2812B | LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm | L1, L2, L3, L4, L5, L6, L7, L8 +3 |
Reviungdash design files
The KiCad project lives in the tumler/ReviungDash repository on GitHub; these links point at the commit this page was built from.
Reviungdash: common questions
How big is the Reviungdash PCB?
The Reviungdash measures 260.9 × 107.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Reviungdash?
110 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Reviungdash design files?
From the tumler/ReviungDash repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Reviungdash design in my own project?
Yes, under the terms of its MIT license, which tumler chose for the repository.
