Flipdot-Array

tylerebowers·Flipdot-Array·array pcb/array.kicad_pcb

Flipdot-Array PCB layout, top view — open source board by tylerebowers
Simulate this board

About the Flipdot-Array PCB

Flipdot-Array is an open source PCB design by tylerebowers, published on GitHub. It is a 2-layer board measuring 218.3 × 76.2 mm, with 0 components from 0 distinct parts.

It belongs with the displays & leds designs in this gallery.

From the project

A flipdot display from 21x 1x7 flipdot modules.

This project is a mini flipdot display to display the time/weather/drawings/etc. This repo contains the array PCB, test PCB, controller PCB, software for the controller, and the case. For more details see my post on my website.

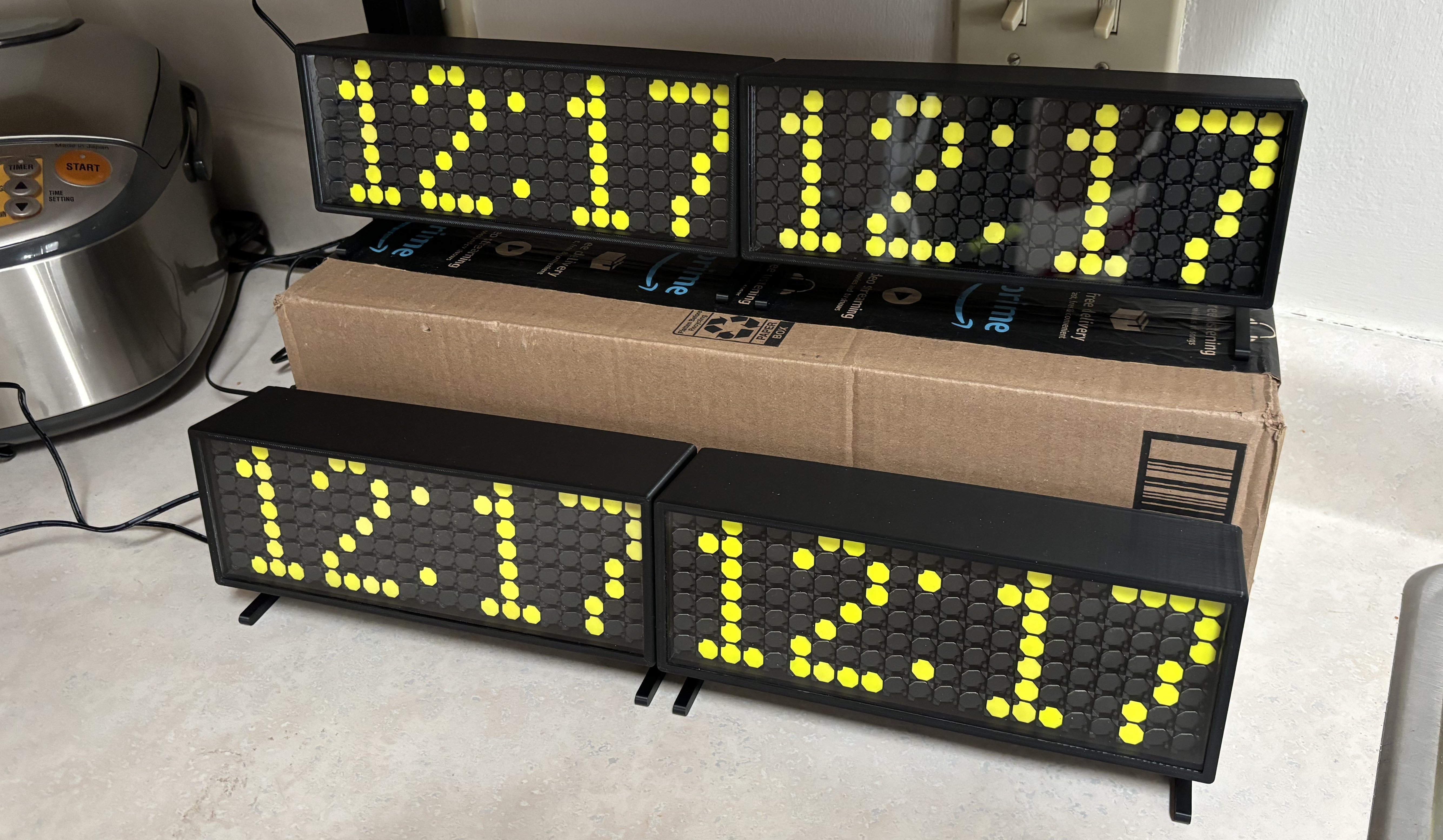

Flipdot-Array, from the project README
From the project README

Flipdot-Array design files

The KiCad project lives in the tylerebowers/Flipdot-Array repository on GitHub; these links point at the commit this page was built from.

Flipdot-Array: common questions

How big is the Flipdot-Array PCB?

The Flipdot-Array measures 218.3 × 76.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Flipdot-Array?

0 components, from 0 distinct parts. The full bill of materials is listed on this page.

Where can I download the Flipdot-Array design files?

From the tylerebowers/Flipdot-Array repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Flipdot-Array design in my own project?

The repository has no license, so all rights stay with tylerebowers. Use it as a reference, and ask the author before reusing the design.
