Tympan Rev C Hardware
About the Tympan Rev C Hardware PCB
Tympan Rev C Hardware is an open source PCB design by Tympan, published on GitHub under the MIT license. It is a 4-layer board measuring 38.5 × 97.6 mm, with 78 components from 32 distinct parts.
Other key parts include the RN42-I/RM, TLV320AIC3206IRSBT, MCP73831T-2ACI/OT and LP5907MFX-1.8/NOPB. By type, the board carries 26 capacitors, 24 resistors, 11 connectors, 5 diodes, 4 ICs and 2 test points.
From the project

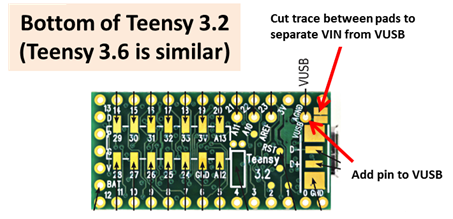

Repository for the board files for Tympan Rev C
These design files were made with KiCAD PCB capture software. The custom component files for parts used in this design are located in the repo as well. Everything should render correctly in the Schematic and the PCB. If not, you may need to adjust the library paths.
This work is based on work done by Creare and their team in Spring of 2017. Modifications have been made to their Rev A hardware design to overcome bugs and improve the design.
Main components on the Tympan Rev C Hardware
Tympan Rev C Hardware bill of materials (BOM)
78 components, 32 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RN42-I/RM RN42 Microchip | RN42 | U1 |
| 1 | TLV320AIC3206IRSBT Texas Insturment | UQFN-40-1EP_5x5mm_Pitch0.4mm | U2 |
| 1 | MCP73831T-2ACI/OT MCP73831 Microchip | SOT-23-5 | U3 |
| 1 | LP5907MFX-1.8/NOPB LP5907MFX-1.8 Texas Insturment | SOT-23-5 | U4 |
| 1 | SJ-3523-SMT SJ-3523-SMT-TR CUI Inc | SJ-3523-SMT-TR | J1 |
| 1 | SJ-3524-SMT-TR-PI CUI Inc | SJ-3524-SMT-TR | J2 |
| 1 | SSW-104-01-G-S CONN_01X04 Samtec | Pin_Header_Straight_1x04_Pitch2.54mm | P2 |
| 2 | SSW-124-01-G-S CONN_01X24 Samtec | Pin_Header_Straight_1x24_Pitch2.54mm | P4, P6 |
| 1 | SSW-101-01-G-S CONN_01X01 Samtec | Pin_Header_Straight_1x01_Pitch2.54mm | P5 |
| 5 | CONN_02X01 | Pin_Header_Straight_1x02_Pitch2.54mm | P7, P8, P9, P10, P11 |
| 1 | LiPo | JST_PH_B2B-PH-K_02x2.00mm_Straight | BT1 |
| 1 | FUSE | C_1206 | F1 |
| 2 | SPH1642HT5H-1 Knowles | SPH1642HT5H | MIC1, MIC2 |
| 1 | 3386F-1-103TLF POT Bourns | Bourns_3386F | RV1 |
| 1 | CL-SB-22A-11T CL-SB-22A Copal | CL-SB-22A | SW1 |
| 2 | CONN_01X01 | Pin_Header_Straight_1x01_Pitch2.54mm | TP1, TP2 |
| 1 | LTST-C150TBKT LED Lite-On | C_1206 | D1 |
| 2 | LTST-C150EKT LED Lite-On | C_1206 | D2, D4 |
| 1 | LTST-C150AKT LED Lite-On | C_1206 | D3 |
| 1 | LTST-C150GKT LED Lite-On | C_1206 | D5 |
Show 12 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 10 | C1005X7R1H104K050BB 0.1uF TDK Corporation | C_0402 | C1, C3, C5, C7, C10, C12, C13, C14 +2 |
| 8 | C1005X6S1C225K050BC 2.2uF TDK Corporation | C_0402 | C2, C8, C17, C19, C23, C24, C25, C26 |
| 5 | CL05A106MP5NUNC 10uF Samsung | C_0402 | C4, C6, C11, C15, C21 |
| 3 | C1005X5R1C105K050BC 1uF TDK Corporation | C_0402 | C9, C20, C22 |
| 5 | CRCW0402220RFKED 220 Vishay Dale | R_0402 | R1, R18, R21, R22, R23 |
| 10 | RC0201FR-0733RL 33 Yageo | R_0201_NoSilk | R2, R3, R4, R5, R6, R7, R8, R9 +2 |
| 2 | CRCW06030000Z0EA 0 Vishay Dale | C_0603 | R12, R13 |
| 2 | DNP | C_0603 | R14, R17 |
| 1 | CRCW06032K20FKEAHP 0 Vishay Dale | C_0603 | R15 |
| 1 | 0 | C_0603 | R16 |
| 2 | CRCW04021K00FKED 1K Vishay Dale | R_0402 | R19, R20 |
| 1 | CRCW04022K00FKED 2K Vishay Dale | R_0402 | R24 |
Tympan Rev C Hardware design files
The KiCad project lives in the Tympan/Tympan_Rev_C_Hardware repository on GitHub; these links point at the commit this page was built from.
Tympan Rev C Hardware: common questions
How big is the Tympan Rev C Hardware PCB?
The Tympan Rev C Hardware measures 38.5 × 97.6 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Tympan Rev C Hardware?
78 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Tympan Rev C Hardware design files?
From the Tympan/Tympan_Rev_C_Hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Tympan Rev C Hardware design in my own project?
Yes, under the terms of its MIT license, which Tympan chose for the repository.
