ESP32-7in-EPaper-Weather-Station-Hardware

About the ESP32-7in-EPaper-Weather-Station-Hardware PCB

ESP32-7in-EPaper-Weather-Station-Hardware is an open source PCB design by UnsignedArduino, published on GitHub. It is a board, with 6 components from 5 distinct parts.

Other key parts include the DFR0478. By type, the board carries 2 ICs, 2 resistors, 1 battery holder and 1 switch.

It belongs with the displays & leds designs in this gallery.

From the project

The hardware for a weather display on a 7.5in Waveshare E-Paper screen with the Firebeetle ESP32 using Open-Meteo!

A weather station based on a Firebeetle ESP32 and a 7.5in Waveshare E-paper display. The data is fetched from Open-Meteo.

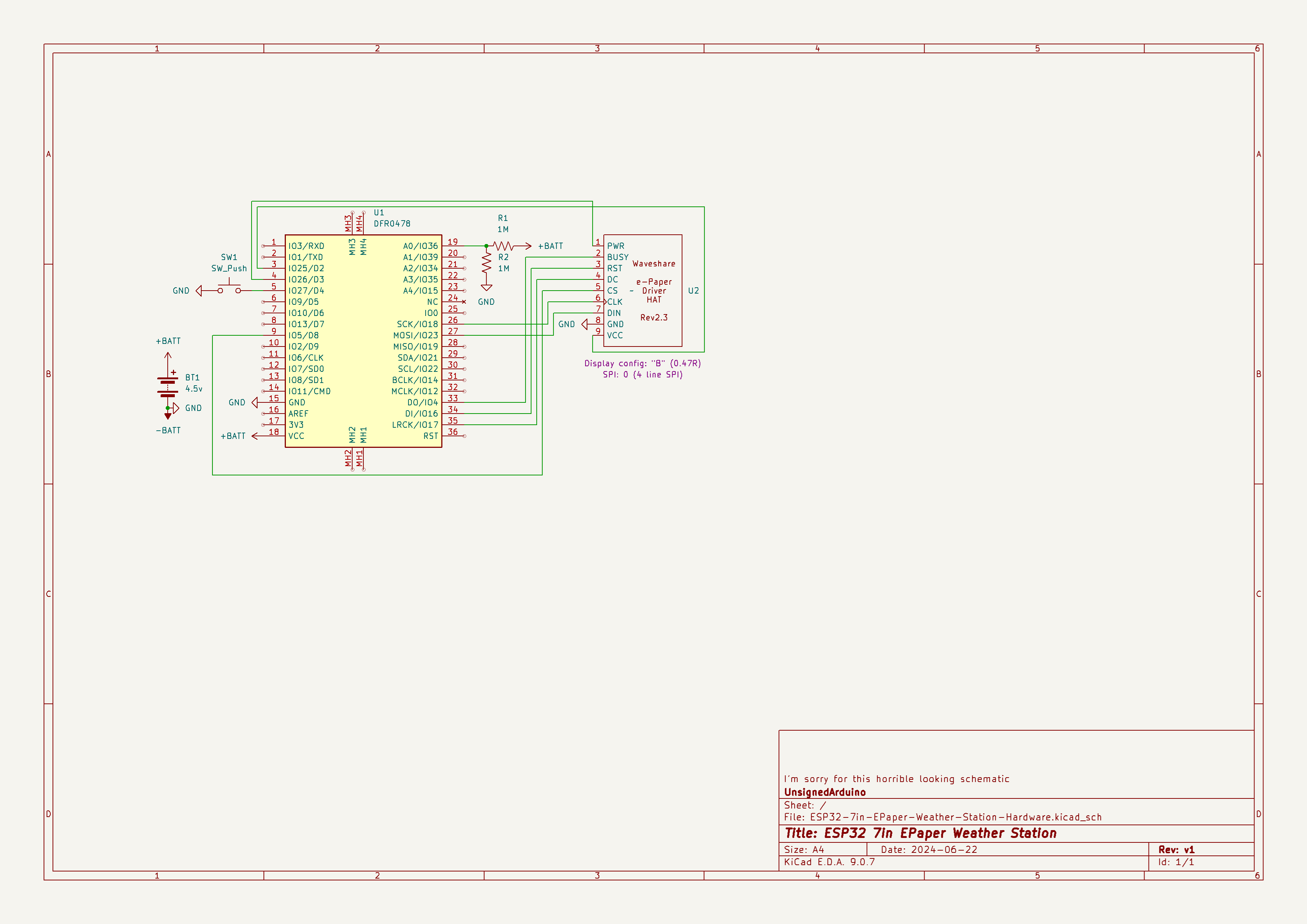

This repo is a KiCad project - clone it to view the schematic. (there is no custom PCB so far)

Main components on the ESP32-7in-EPaper-Weather-Station-Hardware

DFR0478

ESP32-7in-EPaper-Weather-Station-Hardware bill of materials (BOM)

6 components, 5 distinct parts.

QtyPartRefs
1
DFR0478
U1
1
~
U2
1
4.5v
BT1
1
SW_Push
SW1
2
1M
R1, R2

ESP32-7in-EPaper-Weather-Station-Hardware design files

The KiCad project lives in the UnsignedArduino/ESP32-7in-EPaper-Weather-Station-Hardware repository on GitHub; these links point at the commit this page was built from.

ESP32-7in-EPaper-Weather-Station-Hardware: common questions

How many components are on the ESP32-7in-EPaper-Weather-Station-Hardware?

6 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESP32-7in-EPaper-Weather-Station-Hardware design files?

From the UnsignedArduino/ESP32-7in-EPaper-Weather-Station-Hardware repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the ESP32-7in-EPaper-Weather-Station-Hardware design in my own project?

The repository has no license, so all rights stay with UnsignedArduino. Use it as a reference, and ask the author before reusing the design.
