About the ADS1292R-Breakout

ADS1292R-Breakout is an open source PCB design by upsidedownlabs, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 35.7 × 27.5 mm, with 38 components from 19 distinct parts.

Other key parts include the ADS1292RIPBS and TLV7163318PDPQR. By type, the board carries 19 capacitors, 9 resistors, 5 diodes, 3 connectors and 2 ICs.

It belongs with the dev boards & breakouts and test & measurement designs in this gallery.

From the project

Upside Down Lab's ADS1292R breakout board for ECG & Respiration.

Upside Down Lab's ADS1292R breakout board for 2ch ECG + 1ch Respiration.

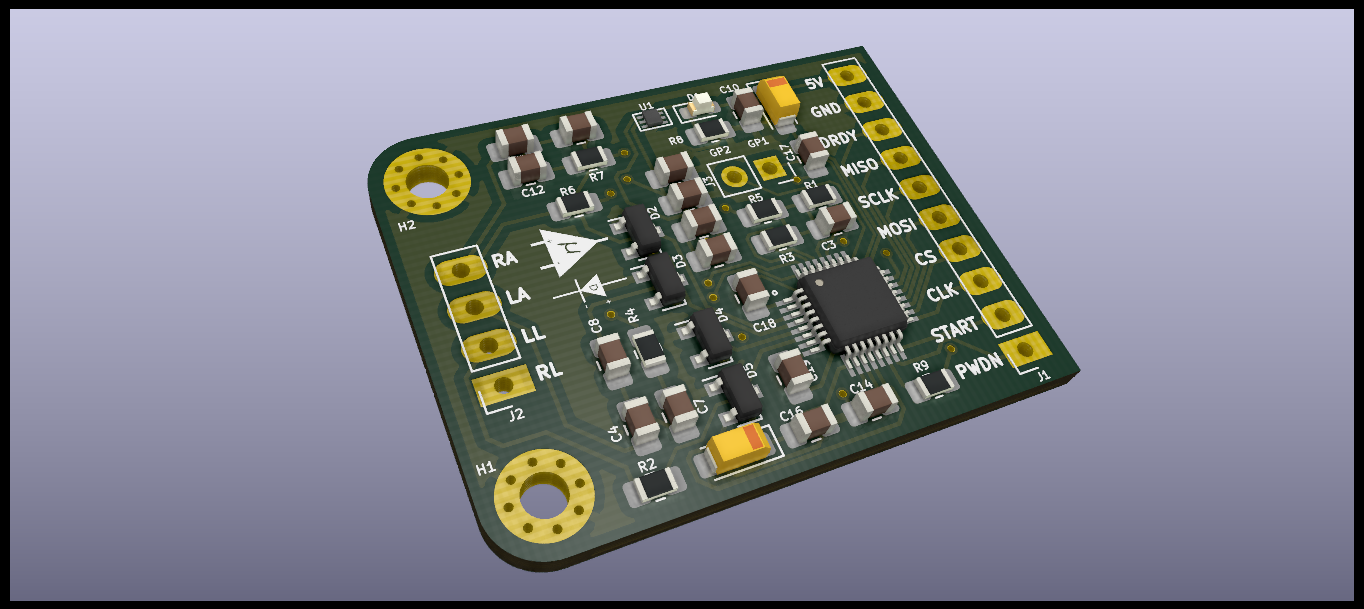

ADS1292R-Breakout, from the project README — From the project README

Main components on the ADS1292R-Breakout

ADS1292RIPBSTLV7163318PDPQR

ADS1292R-Breakout bill of materials (BOM)

38 components, 19 distinct parts.

Qty	Part	Footprint	Refs
1	ADS1292RIPBS	ADS1292RIPBS	IC1
1	TLV7163318PDPQR	S-PX2SON-N6	U1
1	Conn_01x10_Male	PinSocket_1x10_P2.54mm_Vertical	J1
1	Conn_01x04_Male	PinSocket_1x04_P2.54mm_Vertical	J2
1	Conn_01x02_Male	PinSocket_1x02_P2.54mm_Vertical	J3
1	LED	LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder	D1
4	BAV99	SOT-23	D2, D3, D4, D5
4	2.2uF	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C1, C2, C14, C17
1	1.5nF	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C3
6	100nF	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C4, C5, C6, C10, C11, C16
4	2.2nF	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C7, C8, C12, C13
2	22uF	CP_EIA-3216-18_Kemet-A_Pad1.58x1.35mm_HandSolder	C9, C15
2	4.7nF	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C18, C19
1	1M	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R1
2	51K	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R2, R6
2	100K	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R3, R5
2	40K	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R4, R7
1	1K	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R8
1	10K	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R9

ADS1292R-Breakout design files

The KiCad project lives in the upsidedownlabs/ADS1292R-Breakout repository on GitHub; these links point at the commit this page was built from.

LayoutADS1292RIPBS/ads1292r.kicad_pcb

ADS1292R-Breakout: common questions

How big is the ADS1292R-Breakout?

The ADS1292R-Breakout measures 35.7 × 27.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ADS1292R-Breakout?

38 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the ADS1292R-Breakout design files?

From the upsidedownlabs/ADS1292R-Breakout repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ADS1292R-Breakout design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which upsidedownlabs chose for the repository.
