S1nT PCB layout, top view — open source AVR/Arduino board by usini

About the S1nT PCB

S1nT is an open source AVR/Arduino PCB design by usini, published on GitHub under the MIT license. It is a 2-layer board measuring 127 × 49.5 mm, with 20 components from 20 distinct parts.

Its main chip is the NaN0, from the AVR/Arduino family. By type, the board carries 12 switches, 7 connectors and 1 module.

It belongs with the audio designs in this gallery.

From the project

Based on thesynth by dzlonline : https://github.com/dzlonline/the_synth

Based on thesynth by dzlonline : https://github.com/dzlonline/the_synth

Présentation du montage en version Breadboard FR : https://www.youtube.com/watch?v=l1WhdirNEj4

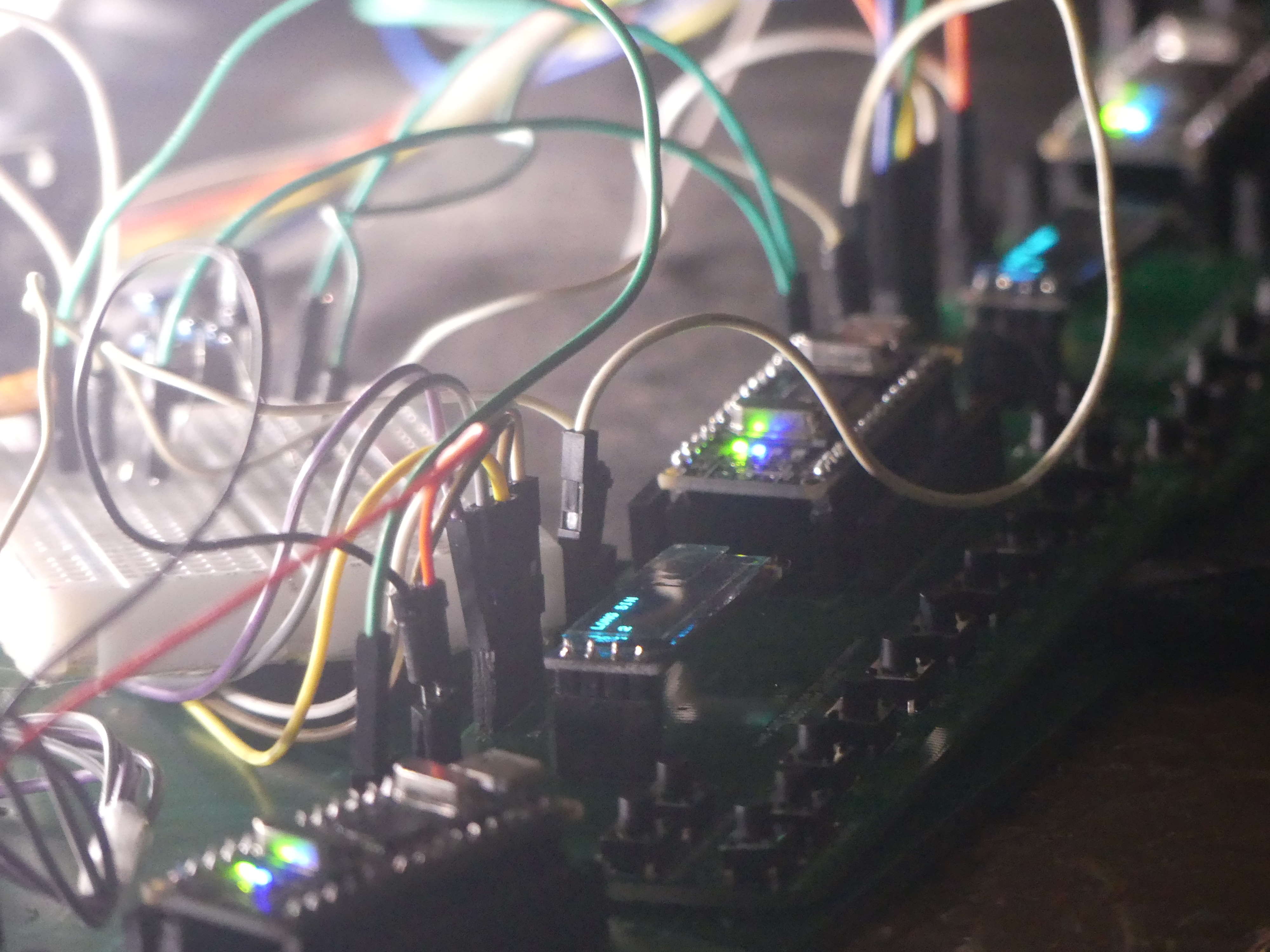

S1nT, from the project README
From the project README

Main components on the S1nT

NaN0

S1nT bill of materials (BOM)

20 components, 20 distinct parts.

QtyPartRefs
1
NaN0
A1
1
JOYSTICK
J1
1
OLED
J2
1
Duplicate LEFT
J3
1
AUDIO
J4
1
SERIAL
J5
1
MERGER
J6
1
Duplicate Right
J7
1
KEY1
SW1
1
KEY2
SW2
1
KEY3
SW3
1
KEY4
SW4
1
KEY5
SW5
1
KEY6
SW6
1
KEY7
SW7
1
KEY8
SW8
1
TRANSPOSE+
SW9
1
TRANSPOSE-
SW10
1
INSTRUMENT+
SW11
1
INSTRUMENT-
SW12

S1nT design files

The KiCad project lives in the usini/s1nT repository on GitHub; these links point at the commit this page was built from.

S1nT: common questions

What microcontroller does the S1nT use?

The S1nT is built around the NaN0, from the AVR/Arduino family.

How big is the S1nT PCB?

The S1nT measures 127 × 49.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the S1nT?

20 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the S1nT design files?

From the usini/s1nT repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the S1nT design in my own project?

Yes, under the terms of its MIT license, which usini chose for the repository.

Can I test firmware for the S1nT without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
