KiCad-EXT-PHY-RTL8201F
About the KiCad-EXT-PHY-RTL8201F PCB

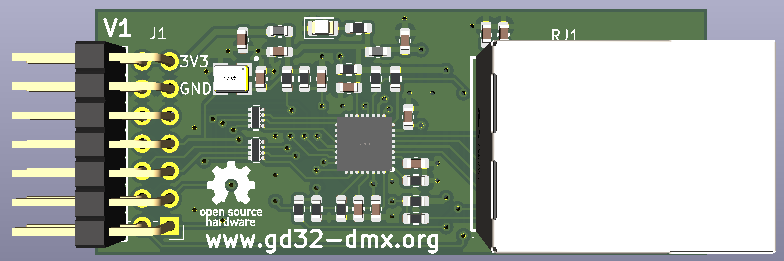

KiCad-EXT-PHY-RTL8201F is an open source PCB design by vanvught, published on GitHub under the MIT license. It is a 2-layer board measuring 56.8 × 22.8 mm, with 32 components from 12 distinct parts.
Other key parts include the RTL8201F-VB-CG. By type, the board carries 14 resistors, 12 capacitors, 2 inductors, 1 IC, 1 crystal and 1 diode.
From the project
KiCad External phy with RTL8201F
More information https://www.gd32-dmx.org/ethernet.html
Main components on the KiCad-EXT-PHY-RTL8201F
KiCad-EXT-PHY-RTL8201F bill of materials (BOM)
32 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RTL8201F-VB-CG REALTEK(瑞昱) | QFN-32_L5.0-W5.0-P0.50-BL-EP3.4 | U1 |
| 1 | HSO321S 50MHZ 3.3V 50PPM -40~+85℃ HSO321S 50MHZ 3.3V HELE(台湾加高) | OSC-SMD_4P-L3.2-W2.5-BL | X1 |
| 1 | HR913550A HANRUN(汉仁) | RJ45-TH_HR913550A | RJ1 |
| 1 | LED | LED_0805_2012Metric | D1 |
| 2 | C14709 FerriteBead | L_0603_1608Metric | FB1, FB2 |
| 11 | 100NF/16V 100nF/16V | C_0603_1608Metric | C1, C2, C3, C4, C5, C6, C7, C8 +3 |
| 1 | 10UF/16V 10uF/16V | C_0603_1608Metric | C12 |
| 2 | 510 | R_0603_1608Metric | R1, R2 |
| 3 | 1K5 | R_0603_1608Metric | R3, R6, R9 |
| 1 | 2K49 | R_0603_1608Metric | R4 |
| 6 | 4K7 | R_0603_1608Metric | R5, R7, R8, R10, R11, R12 |
| 2 | 33Ω | R_Array_Concave_4x0402 | RN1, RN2 |
KiCad-EXT-PHY-RTL8201F design files
The KiCad project lives in the vanvught/KiCad-EXT-PHY-RTL8201F repository on GitHub; these links point at the commit this page was built from.
- LayoutEXT-PHY-RTL8201F.kicad_pcb
- SchematicEXT-PHY-RTL8201F.kicad_sch
- BOMproduction/bom.csv
KiCad-EXT-PHY-RTL8201F: common questions
How big is the KiCad-EXT-PHY-RTL8201F PCB?
The KiCad-EXT-PHY-RTL8201F measures 56.8 × 22.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KiCad-EXT-PHY-RTL8201F?
32 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the KiCad-EXT-PHY-RTL8201F design files?
From the vanvught/KiCad-EXT-PHY-RTL8201F repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the KiCad-EXT-PHY-RTL8201F design in my own project?
Yes, under the terms of its MIT license, which vanvught chose for the repository.
