VArm6
About the VArm6 PCB
VArm6 is an open source AVR/Arduino PCB design by VJPatz, published on GitHub under the MIT license. It is a board, with 11 components from 11 distinct parts.
Its main chip is the U1, from the AVR/Arduino family. Other key parts include the U2. By type, the board carries 6 switches, 3 connectors and 2 ICs.
It belongs with the robotics & motion and wearables designs in this gallery.
From the project

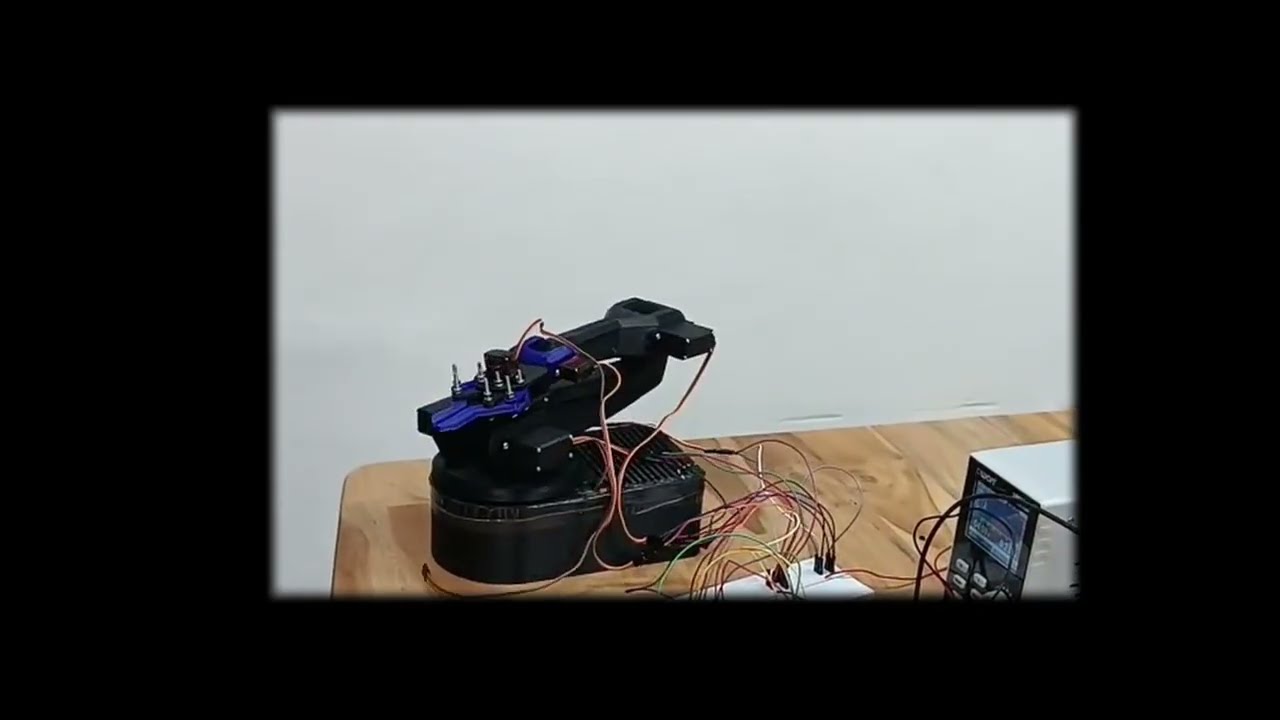

Open-source 6-DOF joystick-controlled robotic arm — Arduino Mega + PCA9685
A fully open-source, 6-degree-of-freedom robotic arm controlled by three analog joysticks. Built on an Arduino Mega 2560 + PCA9685 PWM driver. Designed to be hacked, extended, and rebuilt.
- 6 independent servo joints — Base, Shoulder, Elbow, Wrist, Rotate, Grip - Preventing sloppy multi-joint drift - Momentum-based motion with configurable acceleration and deceleration - One-button hold to glide all joints back to a safe home position - PCA9685 I2C health check on boot — halts with error if driver is missing
Main components on the VArm6
VArm6 bill of materials (BOM)
11 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | U1 | U1 | |
| 1 | U2 | U2 | |
| 1 | J1 | J1 | |
| 1 | J2 | J2 | |
| 1 | J3 | J3 | |
| 1 | S1 | S1 | |
| 1 | S2 | S2 | |
| 1 | S3 | S3 | |
| 1 | S4 | S4 | |
| 1 | S5 | S5 | |
| 1 | S6 | S6 |
VArm6 design files
The KiCad project lives in the VJPatz/VArm6 repository on GitHub; these links point at the commit this page was built from.
- Schematicschematic/VArm6.kicad_sch
VArm6: common questions
What microcontroller does the VArm6 use?
The VArm6 is built around the U1, from the AVR/Arduino family.
How many components are on the VArm6?
11 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the VArm6 design files?
From the VJPatz/VArm6 repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the VArm6 design in my own project?
Yes, under the terms of its MIT license, which VJPatz chose for the repository.
Can I test firmware for the VArm6 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
