Chocofly fz

vlkv·chocofly·pcb/chocofly_fz.kicad_pcb

Chocofly fz PCB layout, top view — open source board by vlkv
Simulate this board

About the Chocofly fz PCB

Chocofly fz is an open source PCB design by vlkv, published on GitHub under the MIT license. It is a 2-layer board measuring 304 × 133.5 mm, with 134 components from 10 distinct parts.

Other key parts include the ProMicro. By type, the board carries 63 switches, 62 diodes, 4 jumpers, 2 connectors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

Ergonomic monosplit keyboard on kailh choc switches

The Chocofly is an ergonomic monosplit keyboard with 4x6 column staggered keys, 4 thumb keys and 2 additional inner keys for the index finger (60 keys total) plus one rotary encoder.

The main idea of the Chocofly is to be thin and suitable for "sonshi"-style usage (putting it ontop the laptop keyboard). It is also pretty minimalistic - no LEDs/OLEDs/labels on keycaps/wires... and in my build it even has no case. It's just a pcb with switches on top of it and small silicone legs on the bottom. And this setup works pefectly! Well, for me at least.

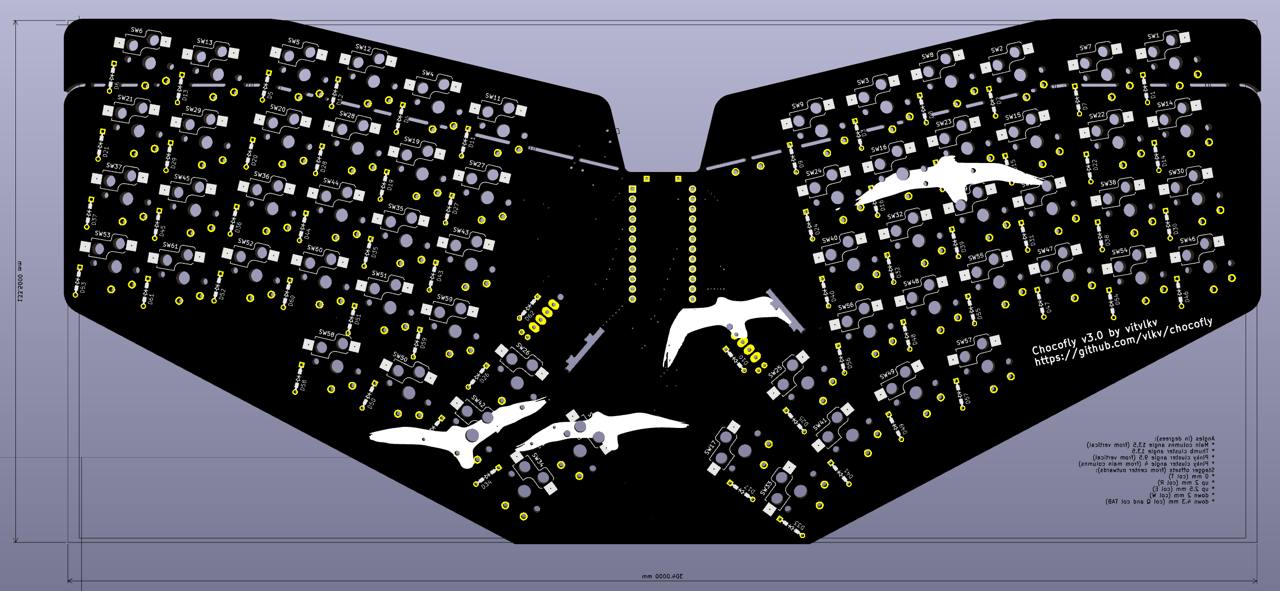

Chocofly fz, from the project README
From the project README

Main components on the Chocofly fz

ProMicro

Chocofly fz bill of materials (BOM)

134 components, 10 distinct parts.

QtyPartRefs
1
ProMicro
MCU1
1
battery+
P1
1
battery-
P2
2
EVQWGD001
ENC1, ENC2
2
Jumper_NC_Small
JP1, JP2
2
Jumper_NC_Small
JP3, JP4
60
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +52
1
Reset
SW62
2
Power
SW63, SW64
62
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +54

Chocofly fz design files

The KiCad project lives in the vlkv/chocofly repository on GitHub; these links point at the commit this page was built from.

Chocofly fz: common questions

How big is the Chocofly fz PCB?

The Chocofly fz measures 304 × 133.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Chocofly fz?

134 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Chocofly fz design files?

From the vlkv/chocofly repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Chocofly fz design in my own project?

Yes, under the terms of its MIT license, which vlkv chose for the repository.
