Lory
About the Lory PCB

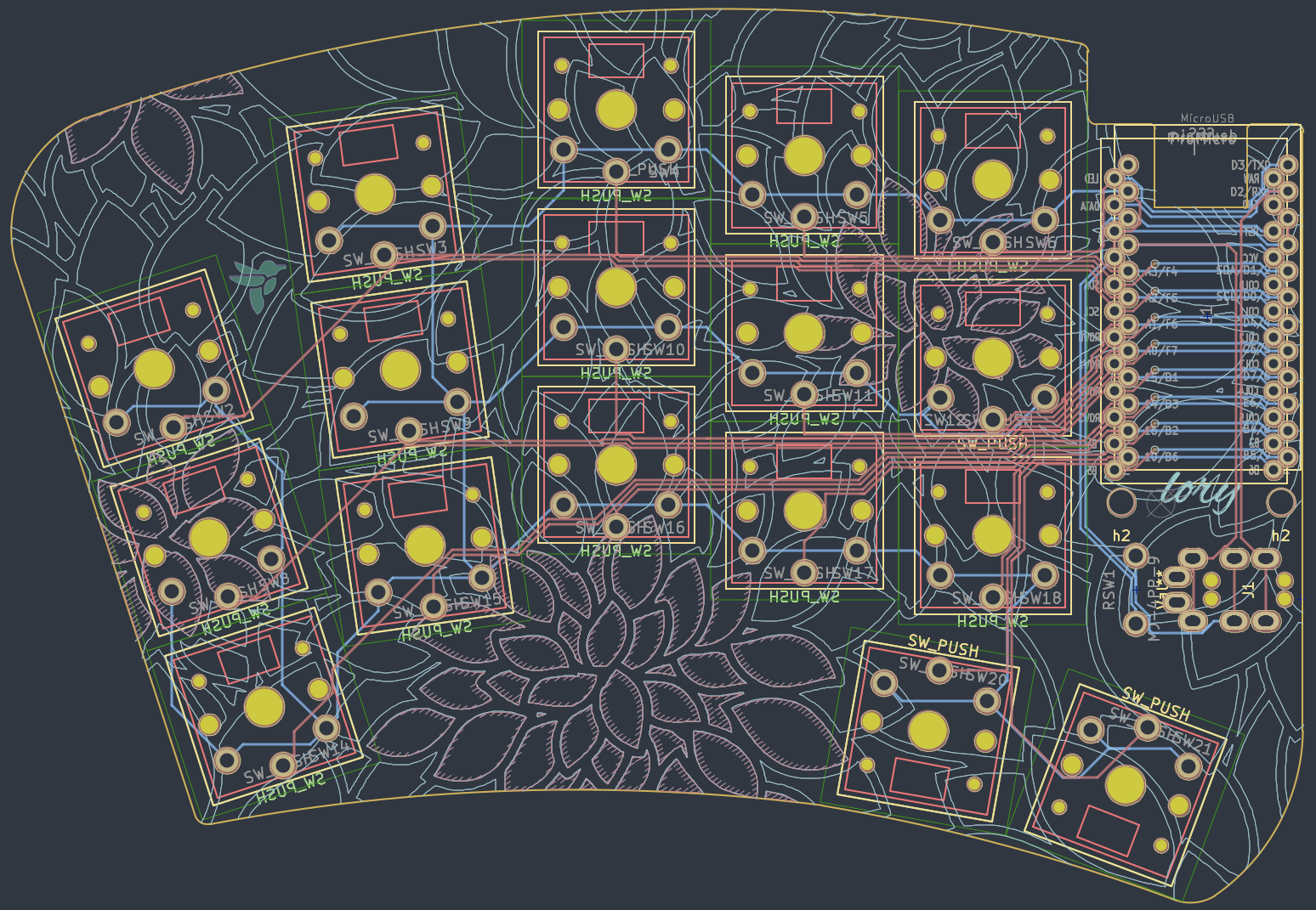

Lory is an open source PCB design by vloth, published on GitHub. It is a 2-layer board measuring 123.5 × 85.4 mm, with 20 components from 4 distinct parts.
Other key parts include the ProMicro. By type, the board carries 17 switches, 1 IC and 1 connector.
It belongs with the keyboards designs in this gallery.
From the project
34 keys diodeless low profile ergonomic keyboard
Main components on the Lory
Lory bill of materials (BOM)
20 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro_v2 | U1 |
| 1 | MJ-4PP-9 | MJ-4PP-9 | J1 |
| 1 | Val** | ResetSW | RSW1 |
| 17 | SW_PUSH | SW_PG1350_reversible_b2 | SW2, SW3, SW4, SW5, SW6, SW8, SW9, SW10 +9 |
Lory design files
The KiCad project lives in the vloth/lory repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/lory.kicad_pcb
Lory: common questions
How big is the Lory PCB?
The Lory measures 123.5 × 85.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Lory?
20 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Lory design files?
From the vloth/lory repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Lory design in my own project?
The repository has no license, so all rights stay with vloth. Use it as a reference, and ask the author before reusing the design.
