Motherboards PCB layout, top view — open source board by wafer-space
Simulate this board

About the Motherboards PCB

Motherboards is an open source PCB design by wafer-space, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 16.5 × 90.2 mm, with 6 components from 3 distinct parts.

From the project

Wire bonded chip on board PCB designs.

We've designed several example breakout and motherboard PCBs to simplify development and integration with your custom chips.

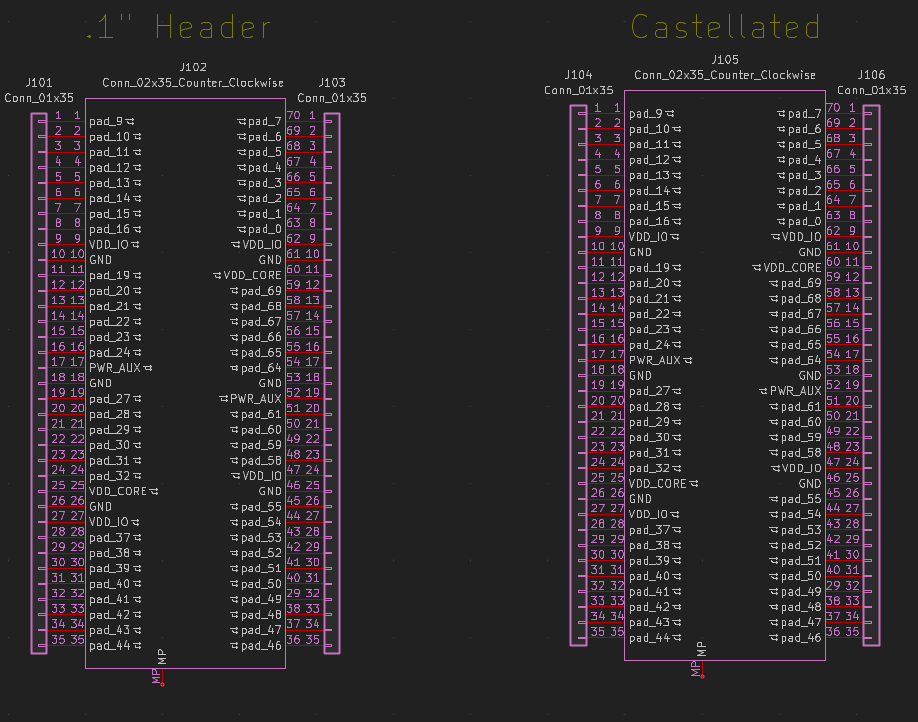

We have also developed a set of KiCad symbols to support design and integration with our COB layouts. These symbols are included in the Motherboards examples and can be used as a reference for your own designs.

Motherboards, from the project README
From the project README

Motherboards bill of materials (BOM)

6 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
Conn_01x35
J101, J103
2
Conn_02x35_Counter_Clockwise
J102, J105
2
Conn_01x35
J104, J106

Motherboards design files

The KiCad project lives in the wafer-space/chip-on-board-wire-bonded-pcbs repository on GitHub; these links point at the commit this page was built from.

Motherboards: common questions

How big is the Motherboards PCB?

The Motherboards measures 16.5 × 90.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Motherboards?

6 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Motherboards design files?

From the wafer-space/chip-on-board-wire-bonded-pcbs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Motherboards design in my own project?

Yes, under the terms of its Apache-2.0 license, which wafer-space chose for the repository.
