RC2014-front panel i2c
About the RC2014-front panel i2c PCB
RC2014-front panel i2c is an open source PCB design by wdl1908, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 64 × 27.7 mm, with 24 components from 7 distinct parts.
Other key parts include the DS1233-5 and TCA9555PWR. By type, the board carries 19 resistors, 3 connectors and 2 ICs.
From the project

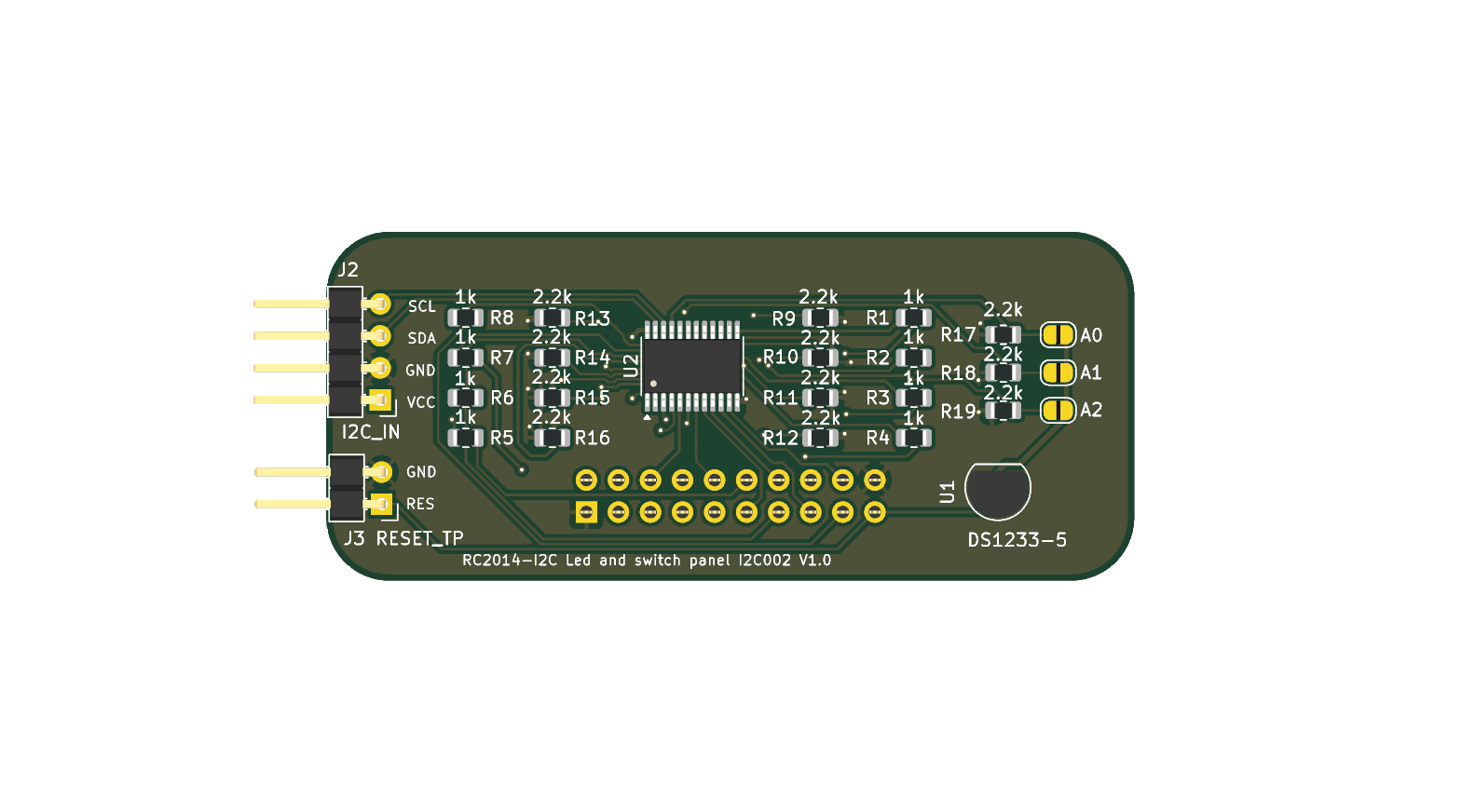

An I2C adapter board for the RC2014 Blue Box front panel.
An I2C adapter board for the RC2014 Blue Box front panel.
The RC2014 Universal Front Panel I/O Kit is one kit, but ships as two separate PCBs connected by a ribbon cable: the I/O Module (plugs into the RC2014 backplane, decodes I/O port 0, drives the LED/switch logic over the Z80 I/O bus, includes a DS1233 reset supervisor) and the Front Panel (the physical board carrying the actual 8 switches and 8 LEDs plus reset switch/power LED, no logic of its own).
Main components on the RC2014-front panel i2c
RC2014-front panel i2c bill of materials (BOM)
24 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DS1233-5 | TO-92 | U1 |
| 1 | TCA9555PWR | TSSOP-24_4.4x7.8mm_P0.65mm | U2 |
| 1 | TO_PANEL | PinSocket_2x10_P2.54mm_Vertical | J1 |
| 1 | I2C_IN | PinHeader_1x04_P2.54mm_Horizontal | J2 |
| 1 | RESET_TP | PinHeader_1x02_P2.54mm_Horizontal | J3 |
| 8 | 1k | R_0805_2012Metric | R1, R2, R3, R4, R5, R6, R7, R8 |
| 11 | 2.2K 2.2k | R_0805_2012Metric | R9, R10, R11, R12, R13, R14, R15, R16 +3 |
RC2014-front panel i2c design files
The KiCad project lives in the wdl1908/RC2014-front-panel-i2c repository on GitHub; these links point at the commit this page was built from.
RC2014-front panel i2c: common questions
How big is the RC2014-front panel i2c PCB?
The RC2014-front panel i2c measures 64 × 27.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RC2014-front panel i2c?
24 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RC2014-front panel i2c design files?
From the wdl1908/RC2014-front-panel-i2c repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the RC2014-front panel i2c design in my own project?
Yes, under the terms of its CERN-OHL-W-2.0 license, which wdl1908 chose for the repository.
