Lisn

westonb·leery-lisn·pcb/lisn-pcb/lisn-pcb.kicad_pcb

Lisn PCB layout, top view — open source board by westonb

About the Lisn PCB

Lisn is an open source PCB design by westonb, published on GitHub. It is a 2-layer board measuring 160 × 159 mm, with 86 components from 26 distinct parts.

By type, the board carries 42 resistors, 12 inductors, 12 capacitors, 9 connectors and 4 diodes.

It belongs with the test & measurement designs in this gallery.

From the project

The leery-lisn contains a LISN network on both the neutral and line connections of the AC plug and a common mode / differential mode separator, allowing for measurement of both the differential mode and common mode noise generated by a device. It also contains a transient limiter

The leery-lisn contains a LISN network on both the neutral and line connections of the AC plug and a common mode / differential mode separator, allowing for measurement of both the differential mode and common mode noise generated by a device. It also contains a transient limiter to protect a connected spectrum analyzer from transients on the AC line or plugging the LISN into the AC line when the spectrum analyzer is already connected.

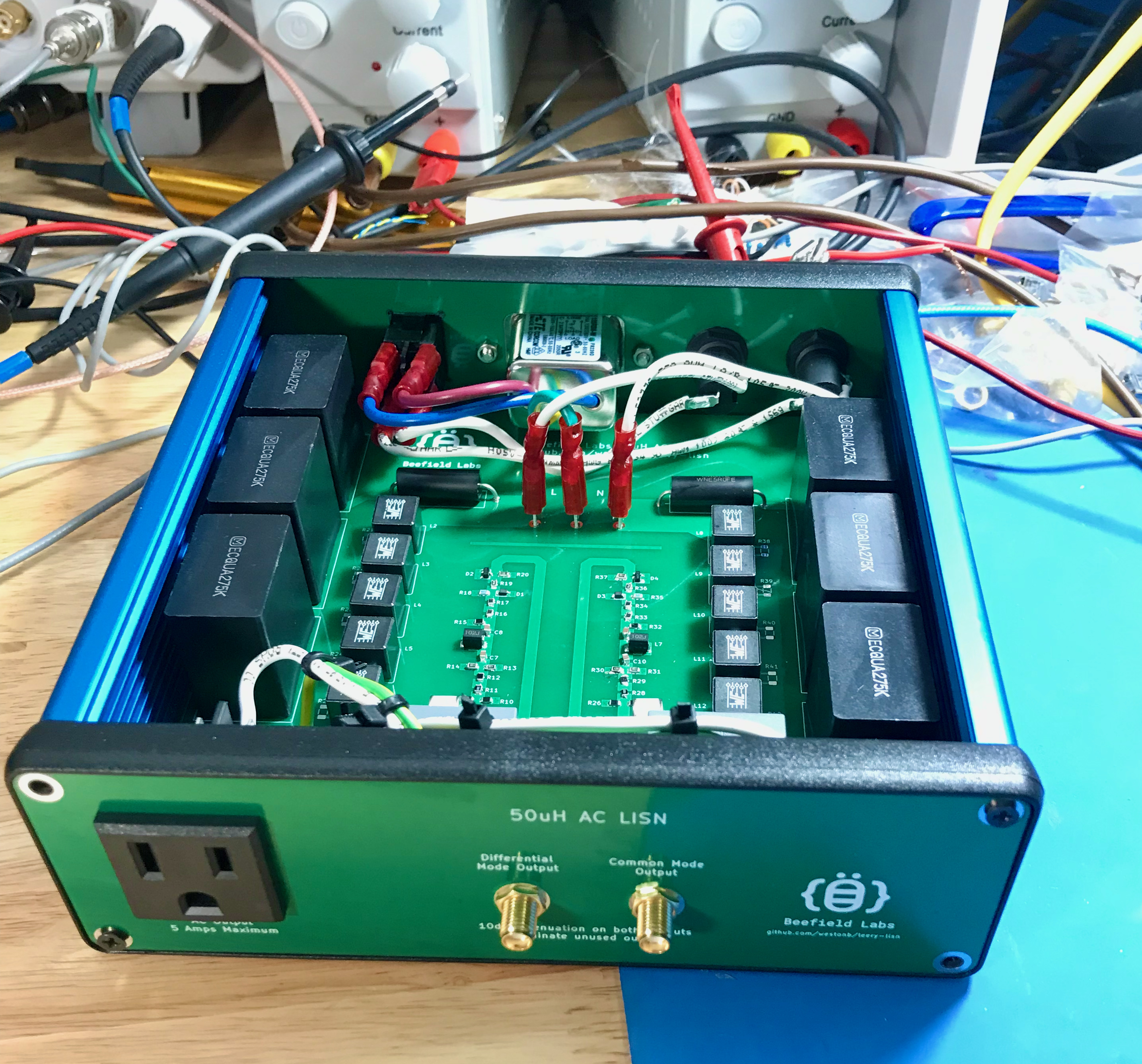

Lisn, from the project README
From the project README

Lisn bill of materials (BOM)

86 components, 26 distinct parts.

QtyPartRefs
2
Conn_Coaxial
J1, J2
7
62409-1
J3, J4, J5, J6, J7, J8, J9
2
2045-09-BLF
GD1, GD2
4
MountingHole_Pad
H1, H2, H3, H4
1
ADT2-71T+
TR1
2
D_TVS
D1, D3
2
BAV23S
D2, D4
2
1m
L1, L7
10
10u
L2, L3, L4, L5, L6, L8, L9, L10 +2
6
2.7u
C1, C2, C3, C4, C5, C6
4
0.47u
C7, C8, C10, C11
2
0.1u
C9, C12
2
5
R1, R2
1
50
R3
2
0
R4, R7
3
DNP
R5, R6, R8
2
620
R9, R26
2
560
R10, R27
2
10
R11, R28
2
7.5
R12, R29
Show 6 more
QtyPartRefs
6
430
R13, R14, R20, R30, R31, R37
2
220
R15, R32
4
15
R16, R17, R33, R34
2
127
R18, R35
2
12
R19, R36
10
DNP
R21, R22, R23, R24, R25, R38, R39, R40 +2

Lisn design files

The KiCad project lives in the westonb/leery-lisn repository on GitHub; these links point at the commit this page was built from.

Lisn: common questions

How big is the Lisn PCB?

The Lisn measures 160 × 159 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Lisn?

86 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the Lisn design files?

From the westonb/leery-lisn repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Lisn design in my own project?

The repository has no license, so all rights stay with westonb. Use it as a reference, and ask the author before reusing the design.
