Geki pico
About the Geki pico PCB
Geki pico is an open source PCB design by whowechina, published on GitHub. It is a 2-layer board measuring 268 × 88.6 mm, with 89 components from 25 distinct parts.
Other key parts include the PiPico, LM4040DBZ-3, 8002A, SS49E and DC/DC. By type, the board carries 38 diodes, 17 capacitors, 8 switches, 8 resistors, 7 ICs and 1 inductor.
From the project
Ongeki Style Controller

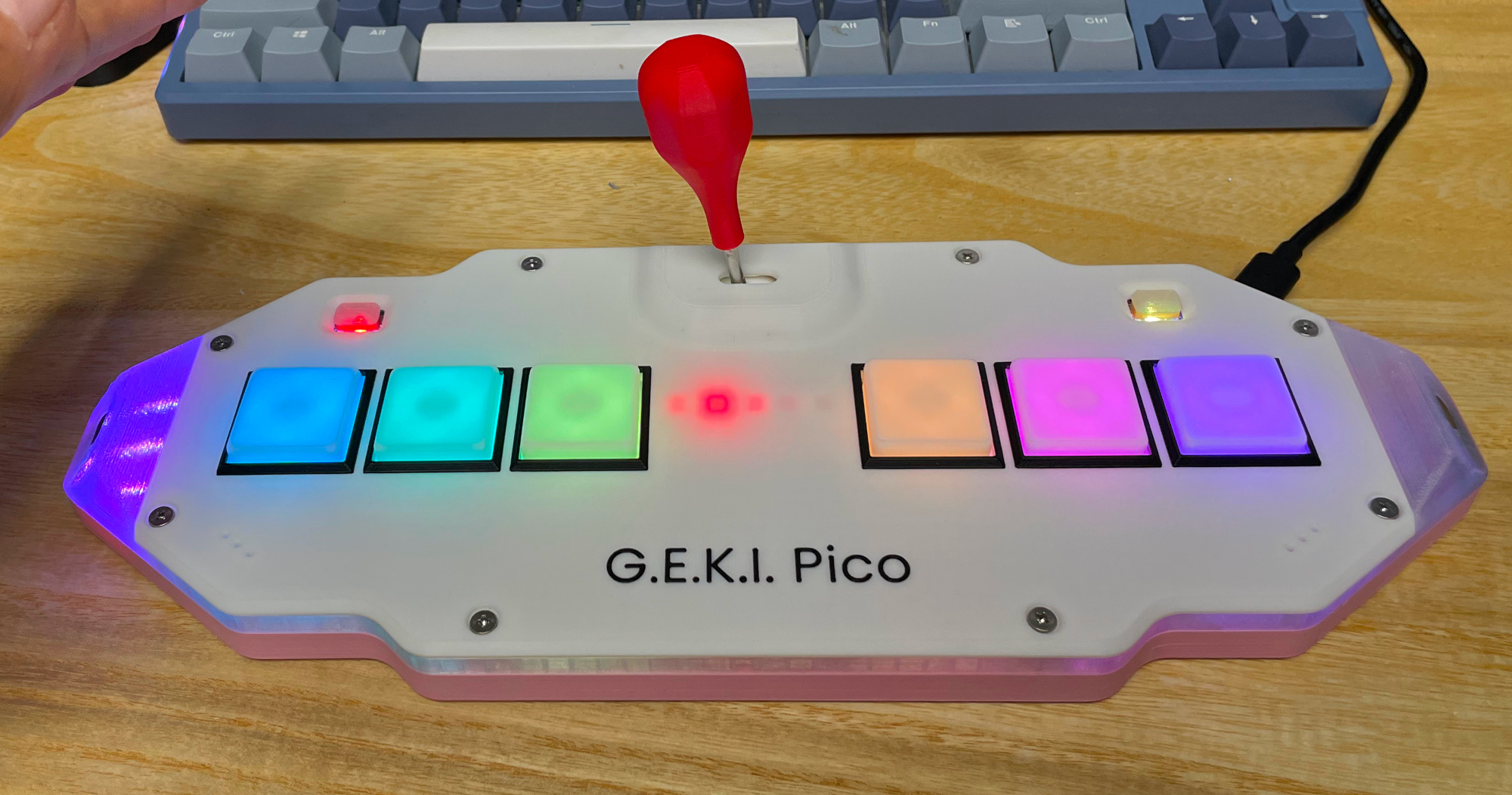

Features: It's small but closely replicates the feel of the arcade controller. Smooth lever action with adjustable resistance. Air WAD with sound feedback. IO4 emulation. Built-in AIME card reader. Command line for configurations. * All source files open.
Thanks to many respectful guys/companies who made their tools or materials free or open source (KiCad, OnShape, InkScape, Raspberry things).
Main components on the Geki pico
Geki pico bill of materials (BOM)
89 components, 25 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PiPico | RPi_Pico_SMD_Pins | U1 |
| 1 | LM4040DBZ-3 | SOT-23 | U2 |
| 2 | 8002A | SO-8_3.9x4.9mm_P1.27mm | U3, U4 |
| 1 | SS49E | SS49E_Bend | U5 |
| 1 | DC/DC | DCDC_3to5 | U6 |
| 1 | HT7750A | SOT-23-5_HandSoldering | U7 |
| 2 | Conn_01x06 | 8002A_TAP | AMP1, AMP2 |
| 1 | Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | PN532 |
| 2 | Conn_01x02 | Solder_2P | SPK1, SPK2 |
| 8 | SW_DIP_x01 | SW_Kailh_Choc_V1V2_1.00u_LED | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 |
| 4 | Conn_01x04 | SH1.0_4P_Solder_Combo | TOF1, TOF2, TOF3, TOF4 |
| 1 | U262-161N-4BVC11 | HRO-TYPE-C-31-M-12-Assembly | USB1 |
| 2 | WS2812B_Unified | WS2812B-2835 | D1, D37 |
| 6 | WS2812B_Unified | WS2812B-4020 | D2, D3, D4, D34, D35, D36 |
| 29 | WS2812B_Unified | WS2812B-4020_UP | D5, D6, D7, D8, D9, D10, D11, D12 +21 |
| 1 | SS14 | D_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D38 |
| 1 | 22uH | L_Changjiang_FNR5020S | L1 |
| 10 | 1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 +2 |
| 2 | 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C9, C10 |
| 1 | 1nF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C13 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 22uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C14, C15 |
| 2 | 10uF | CP_Elec_6.3x3 | C16, C17 |
| 2 | 5K1 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2 |
| 3 | 10K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R4, R6, R8 |
| 3 | 20K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5, R7, R9 |
Geki pico design files
The KiCad project lives in the whowechina/geki_pico repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/main/geki_main.kicad_pcb
- SchematicPCB/main/geki_main.kicad_sch
