Groove pico
About the Groove pico PCB
Groove pico is an open source PCB design by whowechina, published on GitHub. It is a 2-layer board measuring 214 × 99 mm, with 116 components from 32 distinct parts.
Other key parts include the PiPico, CD4052B and LM4040DBZ-3. By type, the board carries 43 diodes, 32 connectors, 9 capacitors, 5 switches, 5 resistors and 3 ICs.
From the project

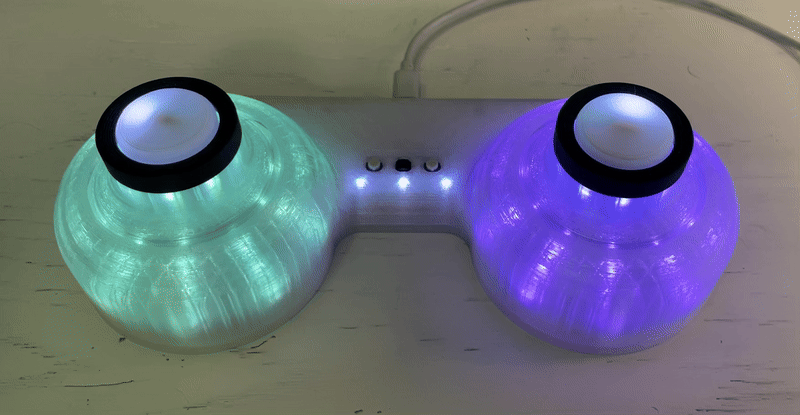

Groove Coaster Style Pico Controller
Features: It's small but closely replicates the feel of the arcade controller. Works as a Nintendo Switch controller. Stereo haptic feedback. Command line for configurations. * All source files open.
Thanks to many respectful guys/companies who made their tools or materials free or open source (KiCad, OnShape, InkScape, Raspberry things).
Special thanks to community developers that inspired me and helped me: CrazyRedMachine (https://github.com/CrazyRedMachine), asesidaa (https://github.com/asesidaa).
Main components on the Groove pico
Groove pico bill of materials (BOM)
116 components, 32 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PiPico | RPi_Pico_SMD_Pins | U1 |
| 1 | CD4052B | TSSOP-16_4.4x5mm_P0.65mm | U2 |
| 1 | LM4040DBZ-3 | SOT-23 | U3 |
| 2 | AO3400A | SOT-23 | Q1, Q2 |
| 1 | Left_X | SH1.25_Thruhole_3P | J1 |
| 1 | Left_Y | SH1.25_Thruhole_3P | J2 |
| 1 | Right_X | SH1.25_Thruhole_3P | J3 |
| 1 | Right_Y | SH1.25_Thruhole_3P | J4 |
| 1 | Left_X | SH1.25mm_3P_SMD | J5 |
| 1 | Left_Y | SH1.25mm_3P_SMD | J6 |
| 1 | Right_X | SH1.25mm_3P_SMD | J7 |
| 1 | Right_Y | SH1.25mm_3P_SMD | J8 |
| 1 | Left_X | Solder_3P_S | J9 |
| 1 | Left_Y | Solder_3P_S | J10 |
| 1 | Right_X | Solder_3P_S | J11 |
| 1 | Right_Y | Solder_3P_S | J12 |
| 4 | SW | Solder_1P_S | J13, J14, J23, J24 |
| 6 | V | Solder_1P_S | J15, J19, J25, J26, J30, J32 |
| 4 | LED | Solder_1P_S | J16, J17, J20, J21 |
| 4 | G | Solder_1P_S | J18, J22, J27, J28 |
Show 12 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | HAP | Solder_1P_S | J29, J31 |
| 16 | ScrewHole | Hole2.0 | SCR1, SCR2, SCR3, SCR4, SCR5, SCR6, SCR7, SCR8 +8 |
| 3 | SWITCH_SPST | EVQP1K05M | SW1, SW2, SW3 |
| 2 | SWITCH_SPST | SW_Kailh_Choc_V1V2_1.00u_LED | SW4, SW5 |
| 1 | U262-161N-4BVC11 | HRO-TYPE-C-31-M-12-Assembly | USB1 |
| 19 | WS2812B_Unified | WS2812B-2835 | D1, D2, D3, D4, D5, D6, D7, D8 +11 |
| 16 | WS2812B_Unified | WS2812B-4020 | D20, D21, D22, D23, D24, D25, D26, D27 +8 |
| 8 | WS2812B_Unified | WS2812B-4020_UP | D28, D29, D30, D31, D40, D41, D42, D43 |
| 9 | 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 +1 |
| 2 | 5K1 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2 |
| 2 | 10R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3, R4 |
| 1 | 100 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5 |
Groove pico design files
The KiCad project lives in the whowechina/groove_pico repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/Main/groove_main.kicad_pcb
- SchematicPCB/Main/groove_main.kicad_sch
Groove pico: common questions
How big is the Groove pico PCB?
The Groove pico measures 214 × 99 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Groove pico?
116 components, from 32 distinct parts. The full bill of materials is listed on this page.
Where can I download the Groove pico design files?
From the whowechina/groove_pico repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Groove pico design in my own project?
The repository has no license, so all rights stay with whowechina. Use it as a reference, and ask the author before reusing the design.
