WTC PROJECT-XMAS-USB-ORNAMENT

WingTechCorner·WTC_PROJECT-XMAS-USB-ORNAMENT·Hardware/JLCPCB-HOLIDAY-PROJECT.kicad_pcb

WTC PROJECT-XMAS-USB-ORNAMENT PCB layout, top view — open source STM32 board by WingTechCorner

About the WTC PROJECT-XMAS-USB-ORNAMENT PCB

WTC PROJECT-XMAS-USB-ORNAMENT is an open source STM32 PCB design by WingTechCorner, published on GitHub. It is a 2-layer board measuring 44.4 × 58.9 mm, with 69 components from 14 distinct parts.

Its main chip is the STM32F030F4P6, from the STM32 family. Other key parts include the CH340G and AP1117-3v3. By type, the board carries 36 diodes, 14 capacitors, 10 resistors, 3 ICs, 2 crystals and 1 connector.

It belongs with the usb & debug tools and sensors designs in this gallery.

From the project

A little cool XMAS project

ISSUE - Design Seems To produce non-working unit. Investigating...

Something for the holidays. Made using SMT/SMD components so most/all parts on one side. Added header pins on revrse side for adding batteries or different UART(s). Added USB-A PCB top to allow plugging into a laptop or computer USB port or to power with a USB-A extension cable.

This is a project I'm also submitting to the JLCPCB.com Holiday Contest!

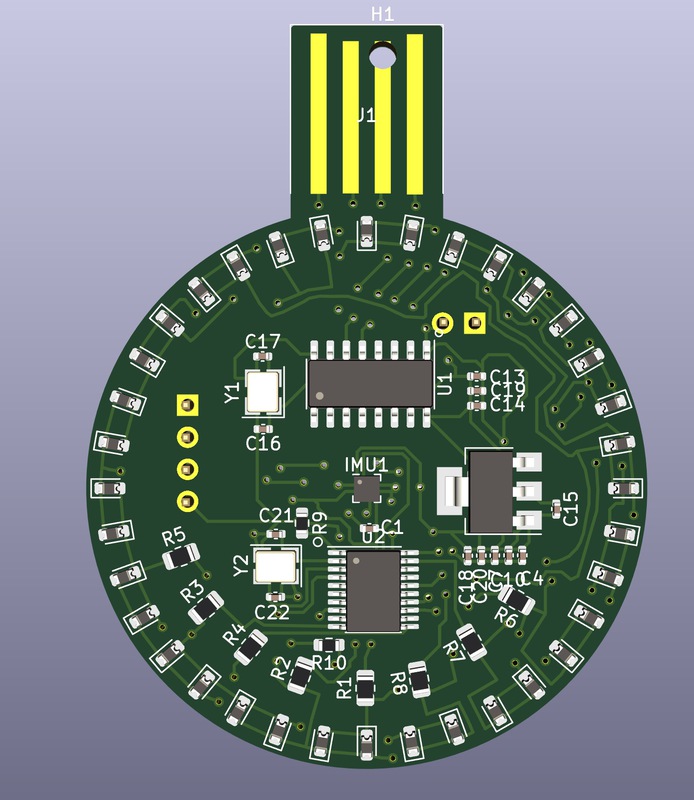

WTC PROJECT-XMAS-USB-ORNAMENT, from the project README
From the project README

Main components on the WTC PROJECT-XMAS-USB-ORNAMENT

CH340GSTM32F030F4P6AP1117-3v3

WTC PROJECT-XMAS-USB-ORNAMENT bill of materials (BOM)

69 components, 14 distinct parts.

QtyPartRefs
1
CH340G
U1
1
STM32F030F4P6
U2
1
AP1117-3v3
U3
2
12mhz-Crystal_GND24
Y1, Y2
1
USB_A_PCB
J1
1
Conn_01x02_Male
5V-IN1
1
QMA7981
IMU1
1
Conn_01x04_Male
SERIAL1
36
BLUE_LED
D1, D2, D3, D4, D5, D6, D7, D8 +28
7
100nF-16V-0402
C1, C4, C7, C10, C13, C14, C19
3
1uF-25V-0402
C15, C18, C20
4
12pF-50V-0402
C16, C17, C21, C22
8
200Ohms-±1%-1_8W-0805
R1, R2, R3, R4, R5, R6, R7, R8
2
4.7KOhms-±1%-1_10W-0603
R9, R10

WTC PROJECT-XMAS-USB-ORNAMENT design files

The KiCad project lives in the WingTechCorner/WTC_PROJECT-XMAS-USB-ORNAMENT repository on GitHub; these links point at the commit this page was built from.

WTC PROJECT-XMAS-USB-ORNAMENT: common questions

What microcontroller does the WTC PROJECT-XMAS-USB-ORNAMENT use?

The WTC PROJECT-XMAS-USB-ORNAMENT is built around the STM32F030F4P6, from the STM32 family.

How big is the WTC PROJECT-XMAS-USB-ORNAMENT PCB?

The WTC PROJECT-XMAS-USB-ORNAMENT measures 44.4 × 58.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WTC PROJECT-XMAS-USB-ORNAMENT?

69 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the WTC PROJECT-XMAS-USB-ORNAMENT design files?

From the WingTechCorner/WTC_PROJECT-XMAS-USB-ORNAMENT repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the WTC PROJECT-XMAS-USB-ORNAMENT design in my own project?

The repository has no license, so all rights stay with WingTechCorner. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the WTC PROJECT-XMAS-USB-ORNAMENT without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
