36 split v3 stack case
36 split v3 stack case is an open source PCB design by wj-zhe: a 2-layer, 141.8 × 95.1 mm board with 46 components (24 distinct parts). It is built around the XC6206P332MR. Filed under keyboards.

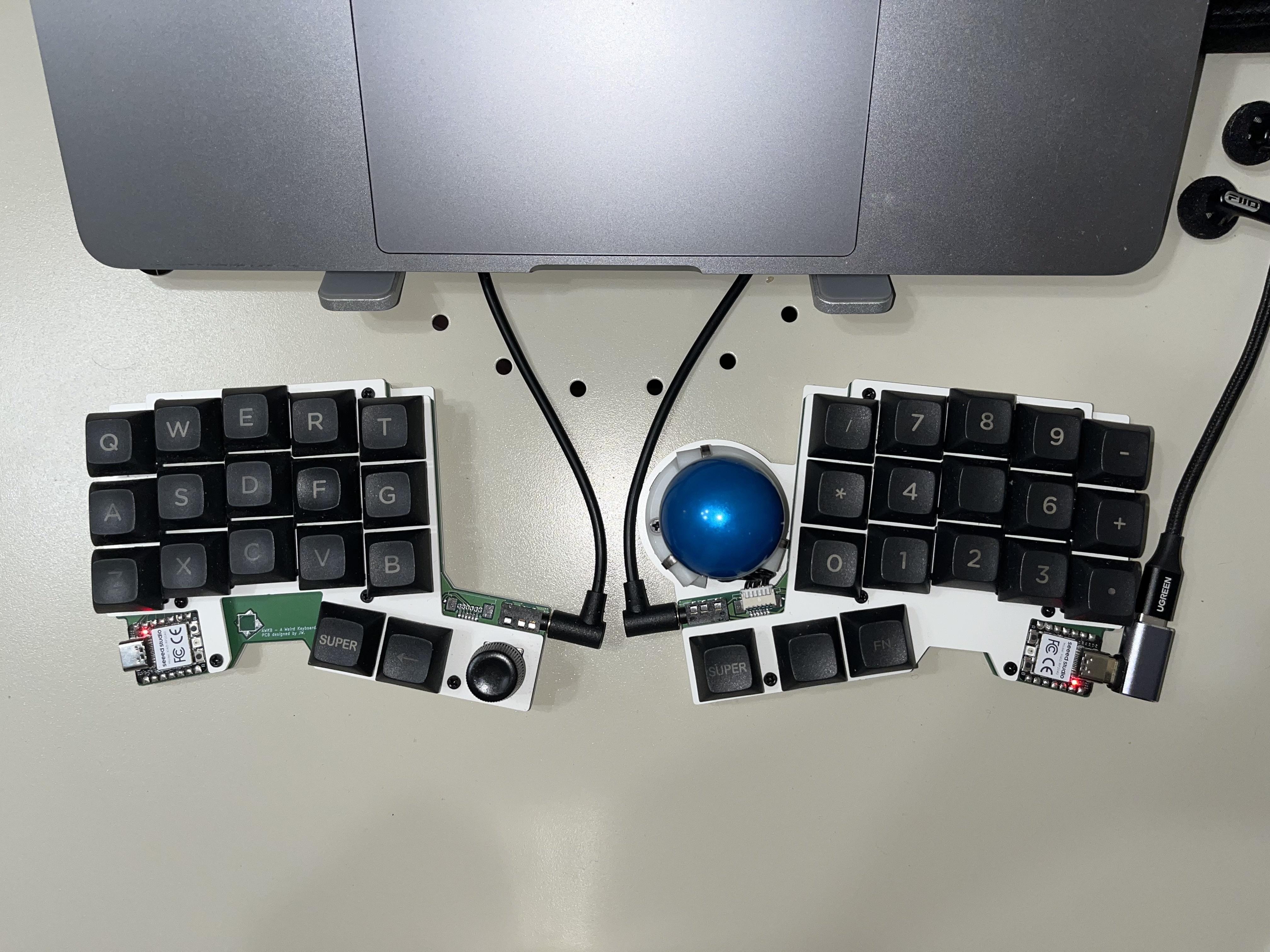

Nothing fancy, just another Seeed Studio Xiao RP2040 based 36key split keyboard with features like Japanese Matrix, trackball (pmw3360 based sensor), rotary encoder, and etc.
Nothing fancy, just another Seeed Studio Xiao RP2040 based 36key split keyboard with features like Japanese Matrix, trackball (pmw3360 based sensor), rotary encoder, and etc.
hardware: https://github.com/wj-zhe/awkb/tree/main/hardware/rev2 firmware: https://github.com/wj-zhe/awkb/tree/main/firmware/rev2
optical sensor: https://github.com/wj-zhe/optical-sensor
Built around
Parts list
46 components, 24 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XC6206P332MR SeeeduinoXIAO | Xiao THT jumper pad_cutout | U1 |
| 1 | CONN_01X06_FEMALE 4PIN | TRRS-PJ-DPB2_cutout | J1 |
| 1 | Conn_01x07_Female | Conn_1x07-1MP_P0.5mm_Horizontal_Flip | J2 |
| 1 | Conn_Coaxial | Coaxial_MHF_2D_MHF_4_RECEPTACLE_20449_1C22_IPEX_4 | J3 |
| 1 | Rotary_Encoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm_cutout_bottom | EC1 |
| 1 | SW1 | CherryMX_Hotswap_cutout_14x14mm | SW1 |
| 1 | SW2 | CherryMX_Hotswap_cutout_14x14mm | SW2 |
| 1 | SW3 | CherryMX_Hotswap_cutout_bottom | SW3 |
| 1 | SW4 | CherryMX_Hotswap_cutout_14x14mm | SW4 |
| 1 | SW5 | CherryMX_Hotswap_cutout_14x14mm | SW5 |
| 1 | SW6 | CherryMX_Hotswap_cutout_14x14mm | SW6 |
| 1 | SW7 | CherryMX_Hotswap_cutout_14x14mm | SW7 |
| 1 | SW8 | CherryMX_Hotswap_cutout_14x14mm | SW8 |
| 1 | SW9 | CherryMX_Hotswap_cutout_bottom | SW9 |
| 1 | SW10 | CherryMX_Hotswap_cutout_14x14mm | SW10 |
| 1 | SW11 | CherryMX_Hotswap_cutout_14x14mm | SW11 |
| 1 | SW12 | CherryMX_Hotswap_cutout_14x14mm | SW12 |
| 1 | SW13 | CherryMX_Hotswap_cutout_14x14mm | SW13 |
| 1 | SW14 | CherryMX_Hotswap_cutout_14x14mm | SW14 |
| 1 | SW15 | CherryMX_Hotswap_cutout_14x14mm | SW15 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SW16 | CherryMX_Hotswap_cutout_14x14mm | SW16 |
| 1 | SW17 | CherryMX_Hotswap_cutout_14x14mm | SW17 |
| 1 | SW18 | CherryMX_Hotswap_cutout_bottom | SW18 |
| 23 | Diode | Diode_SOD123_THT_2_cutout_small | D1, D2, D3, D4, D5, D6, D7, D8 +15 |
