Txboard PCB layout, top view — open source AVR/Arduino board by wlowi

About the Txboard PCB

Txboard is an open source AVR/Arduino PCB design by wlowi, published on GitHub under the MIT license. It is a 2-layer board measuring 84.6 × 49.5 mm, with 24 components from 20 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. By type, the board carries 15 connectors, 7 resistors, 1 IC and 1 capacitor.

From the project

RC Transmitter Software

Diese Software ist ein Beispiel für eine RC Sender firmware. Es wird keine Haftung für Schäden jeglicher Art übernommen.

This is an example of a RC transmitter software. In no event shall the authors or copyright holders be liable for any claim, damage or other liability.

- Joy-IT ADR MEGA2560PRO - ESP32 DevKit (EXPERIMENTELL UND UNGETESTED, NICHT BENUTZEN!)

- Z.Bsp. Spektrum Modul für Graupner MC-24 / MC-22 oder Jeti TU2 Modul.

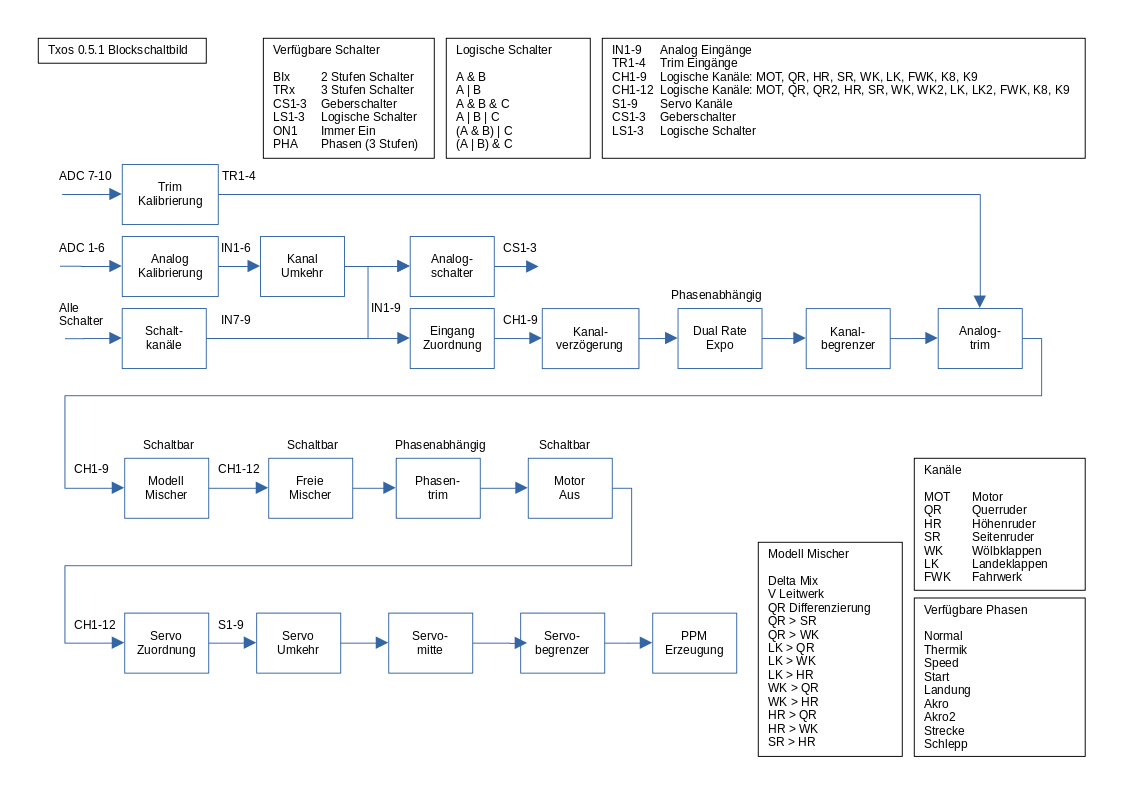

Txboard, from the project README
From the project README

Main components on the Txboard

Arduino_Nano_v3.x

Txboard bill of materials (BOM)

24 components, 20 distinct parts.

QtyPartRefs
1
Arduino_Nano_v3.x
MCU1
1
Power In (JST XH)
J1
1
AnalogIn1 (JST XH)
J2
1
AnalogIn2 (JST XH)
J3
1
AnalogIn3 (JST XH)
J4
1
AnalogIn4 (JST XH)
J5
1
AnalogIn5 (JST XH)
J6
1
DigitalIn1 (JST XH)
J7
1
DigitalIn2 (JST XH)
J8
1
DigitalIn3 (JST XH)
J9
1
DigitalIn4 (JST XH)
J10
1
DigitalIn5 (JST XH)
J11
1
TWI1 (JST XH)
J12
1
TWI2 (JST XH)
J13
1
RotaryEnc1 (JST XH)
J14
1
PPMOut1 (JST XH)
J15
1
100uF / 25V
C1
5
100k
R1, R2, R3, R4, R5
1
22k
R6
1
10k
R7

Txboard design files

The KiCad project lives in the wlowi/TXos repository on GitHub; these links point at the commit this page was built from.

Txboard: common questions

What microcontroller does the Txboard use?

The Txboard is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the Txboard PCB?

The Txboard measures 84.6 × 49.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Txboard?

24 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the Txboard design files?

From the wlowi/TXos repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Txboard design in my own project?

Yes, under the terms of its MIT license, which wlowi chose for the repository.

Can I test firmware for the Txboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
