Splendida PCB layout, top view — open source board by wokwi
Simulate this board

About the Splendida PCB

Splendida is an open source PCB design by wokwi, published on GitHub. It is a 2-layer board measuring 172 × 172 mm, with 514 components from 3 distinct parts.

By type, the board carries 256 diodes, 256 capacitors and 2 connectors.

It belongs with the displays & leds designs in this gallery.

From the project

256 WS2812B LEDs arranged in Fermat's Spiral Shape

The PCB was designed with KiCad and laid out using a Python script.

The design was inspired by Evil Genious Labs' Fibonacci 256.

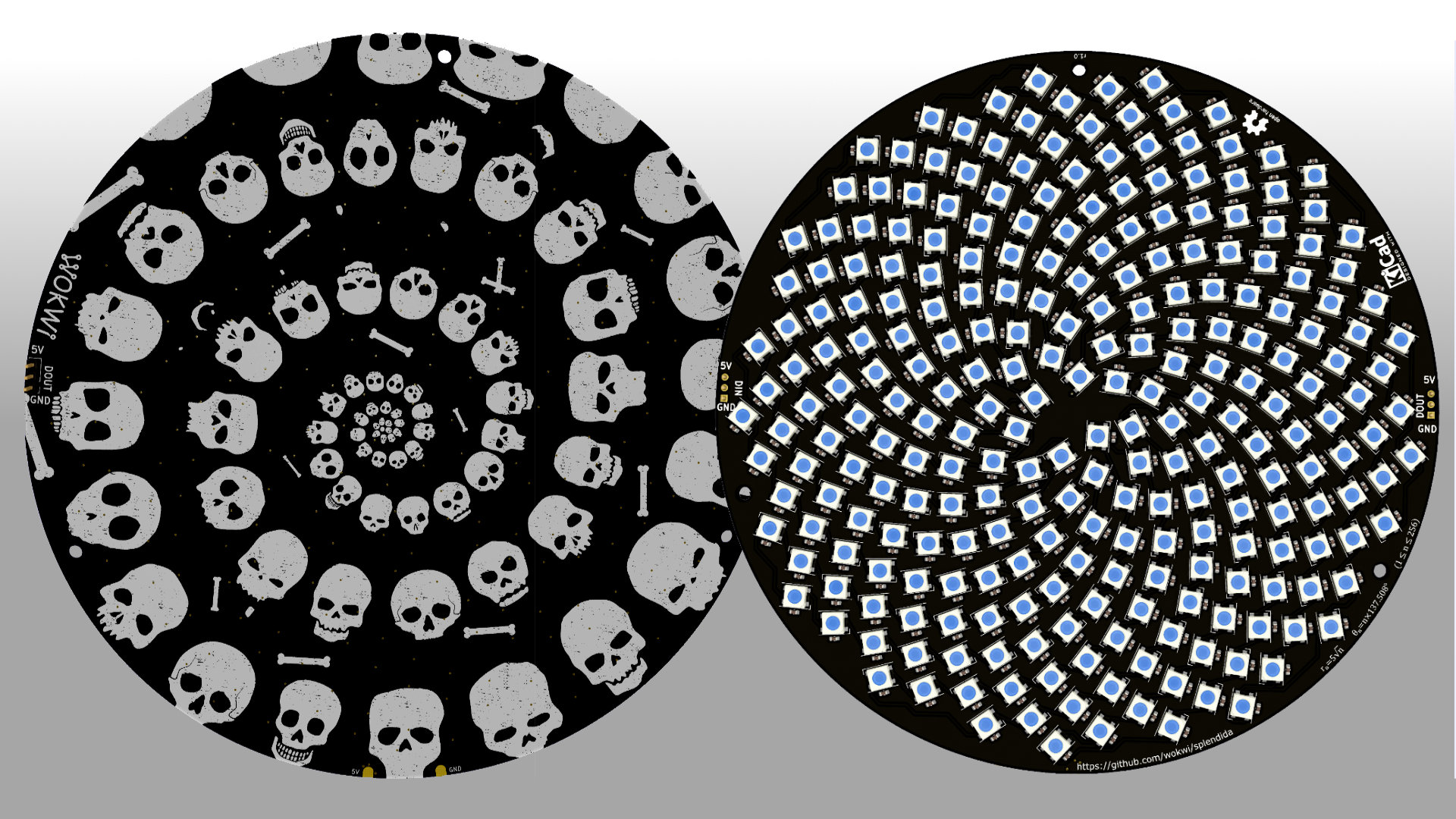

- 256 WS2812B-B RGB LEDs - 256 100nF decoupling capacitors - 2 sets of 3-pin header connectors with standard 0.1" spacing: - 5V, DIN, GND - 5V, DOUT, GND - 172mm board diameter - 3xM3 mounting holes (81.5mm from center) - Hypnotic skull spiral decoration 💀

Splendida, from the project README
From the project README

Splendida bill of materials (BOM)

514 components, 3 distinct parts.

QtyPartRefs
2
Conn_01x03_Female
J1, J2
256
WS2812B
D1, D2, D3, D4, D5, D6, D7, D8 +248
256
100nF
C1, C2, C3, C4, C5, C6, C7, C8 +248

Splendida design files

The KiCad project lives in the wokwi/splendida repository on GitHub; these links point at the commit this page was built from.

Splendida: common questions

How big is the Splendida PCB?

The Splendida measures 172 × 172 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Splendida?

514 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Splendida design files?

From the wokwi/splendida repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Splendida design in my own project?

The repository has no license, so all rights stay with wokwi. Use it as a reference, and ask the author before reusing the design.
