TinyTiM (copy)

wyolum·TinyTiM·KiCad/rev2/TinyTiM (copy).kicad_pcb

TinyTiM (copy) PCB layout, top view — open source board by wyolum

About the TinyTiM (copy) PCB

TinyTiM (copy) is an open source PCB design by wyolum, published on GitHub. It is a board measuring 121.9 × 121.9 mm, with 105 components from 17 distinct parts.

Other key parts include the RGB_WS2811B. By type, the board carries 64 ICs, 16 capacitors, 13 connectors and 12 switches.

It belongs with the displays & leds designs in this gallery.

From the project

small brother to TiM. 8x8 WS2811 RGB LED Matrix

small brother to TiM 8x8 WS2811 RGB LED Matrix Data Input can be Serial (1 input - DIA) or Parallel (8 inputs - DIA thru' DI_H) Boards can be daisy-chained in Serial or Parallel Mode (Limited to Power Supply capacity and Microcontroller capability)

to view 3D render correctly, create a sym_link as follows :

sudo ln -s /home/USERNAME/projects-git/TinyTiM/KiCad/TinyTiM3D /usr/share/kicad/modules/packages3d

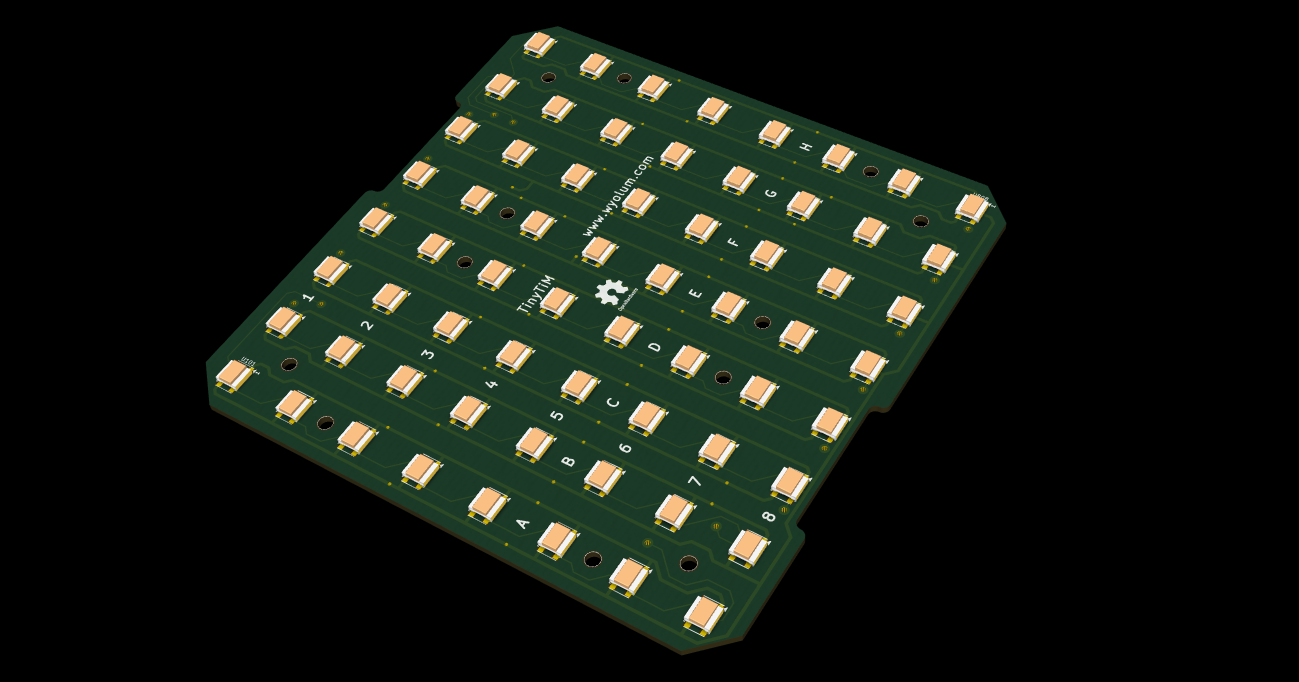

TinyTiM (copy), from the project README
From the project README

Main components on the TinyTiM (copy)

RGB_WS2811B

TinyTiM (copy) bill of materials (BOM)

105 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
64
RGB_WS2811B
U101, U102, U103, U104, U105, U106, U107, U108 +56
1
PWR_W
P1
1
PWR_E
P2
1
Data_In
P3
1
Data_Out
P4
1
Data_In_Serial
P5
1
Data_Out_Serial
P6
1
G>H
P125
1
F>G
P126
1
E>F
P127
1
D>E
P128
1
C>D
P129
1
B>C
P130
1
A>B
P131
12
CONN_1
S101, S102, S103, S104, S401, S402, S501, S502 +4
8
100N
100n
C101, C201, C301, C401, C501, C601, C701, C801
8
47u,8V
C117, C217, C317, C417, C517, C617, C717, C817

TinyTiM (copy) design files

The KiCad project lives in the wyolum/TinyTiM repository on GitHub; these links point at the commit this page was built from.

TinyTiM (copy): common questions

How big is the TinyTiM (copy) PCB?

The TinyTiM (copy) measures 121.9 × 121.9 mm and is 1.6002 mm thick.

How many components are on the TinyTiM (copy)?

105 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TinyTiM (copy) design files?

From the wyolum/TinyTiM repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the TinyTiM (copy) design in my own project?

The repository has no license, so all rights stay with wyolum. Use it as a reference, and ask the author before reusing the design.
