Diy nvg monocular

About the Diy nvg monocular PCB

Diy nvg monocular is an open source PCB design by xhusar2, published on GitHub. It is a board, with 6 components from 3 distinct parts.

By type, the board carries 3 ICs, 2 switches and 1 connector.

It belongs with the displays & leds designs in this gallery.

From the project

DIY Night Vision Device

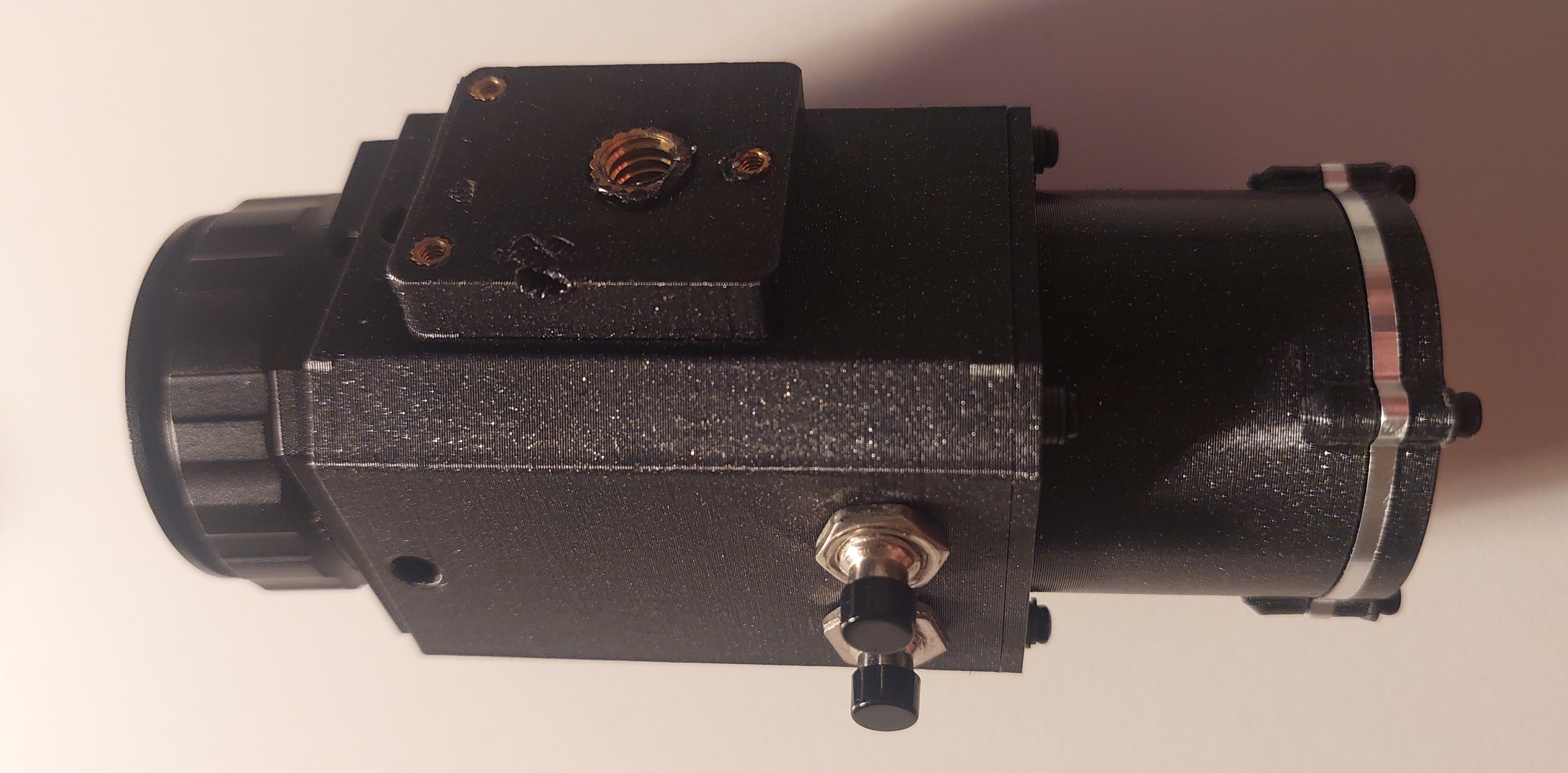

This project is a DIY night-vision monocular built from a RunCam Night Eagle 3 v2 analog camera and a small OLED display in a custom 3D‑printed housing. The case is designed to mount either on a head harness or on any Picatinny rail, making it usable as a helmet-mounted NVG or a simple rail-mounted viewer. It works with any IR torch or illuminator, is cheap and easy to assemble from off‑the‑shelf parts, and because the signal path is fully analog, latency is extremely low—so you can wear it for long periods without the motion sickness or headaches common with digital solutions.

Diy nvg monocular bill of materials (BOM)

6 components, 3 distinct parts.

QtyPartRefs
3
~
U1, U4, U5
1
Barrel_Jack
J1
2
SW_Omron_B3FS
SW2, SW3

Diy nvg monocular design files

The KiCad project lives in the xhusar2/diy_nvg_monocular repository on GitHub; these links point at the commit this page was built from.

Diy nvg monocular: common questions

How many components are on the Diy nvg monocular?

6 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Diy nvg monocular design files?

From the xhusar2/diy_nvg_monocular repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Diy nvg monocular design in my own project?

The repository has no license, so all rights stay with xhusar2. Use it as a reference, and ask the author before reusing the design.
