Diy thermal monocular

About the Diy thermal monocular PCB

Diy thermal monocular is an open source PCB design by xhusar2, published on GitHub under the MIT license. It is a board, with 8 components from 4 distinct parts.

By type, the board carries 3 ICs, 3 switches and 1 connector.

It belongs with the displays & leds designs in this gallery.

From the project

thermal monocular documentation

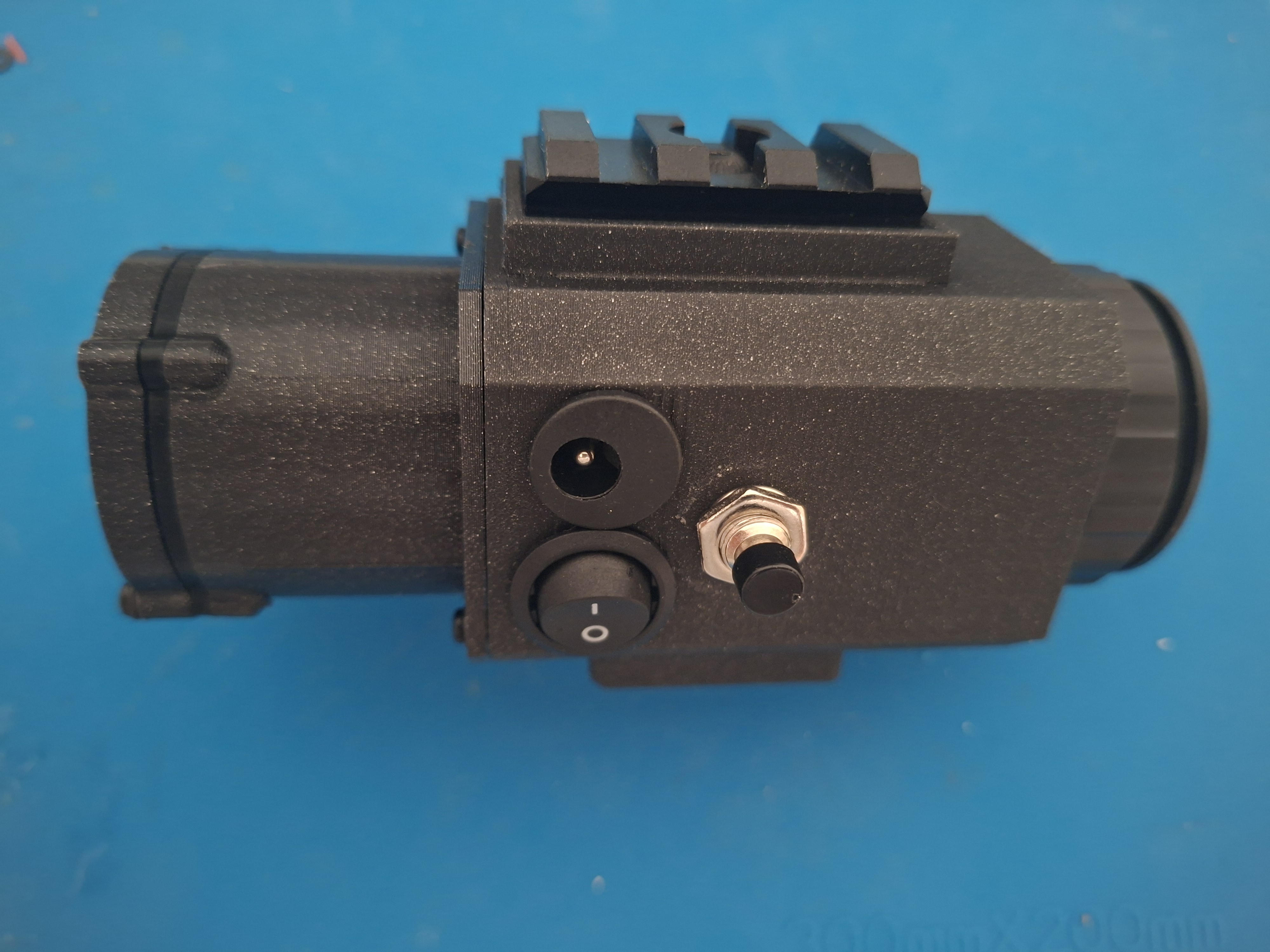

A fully functional DIY thermal imaging monocular built around a 256×192 thermal camera, an ESP32-C3 microcontroller, and a 0.39" OLED display — all packed into a 3D-printed body with an 18× eyepiece. It mounts on any standard Picatinny/RIS rail and costs a fraction of commercial thermal optics.

Commercial thermal monoculars run €1,000–€5,000+. This build costs ~€400.

Diy thermal monocular bill of materials (BOM)

8 components, 4 distinct parts.

QtyPartRefs
3
~
U1, U4, U5
1
Barrel_Jack
J1
1
R_Potentiometer
RV1
3
SW_Omron_B3FS
SW2, SW3, SW4

Diy thermal monocular design files

The KiCad project lives in the xhusar2/diy_thermal_monocular repository on GitHub; these links point at the commit this page was built from.

Diy thermal monocular: common questions

How many components are on the Diy thermal monocular?

8 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Diy thermal monocular design files?

From the xhusar2/diy_thermal_monocular repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Diy thermal monocular design in my own project?

Yes, under the terms of its MIT license, which xhusar2 chose for the repository.
