Snesdump board is an open source PCB design by xunker, published on GitHub. It is a 2-layer board measuring 36.8 × 88.9 mm, with 17 components from 6 distinct parts.
Other key parts include the 74HC595. By type, the board carries 8 resistors, 3 ICs, 1 connector and 1 capacitor.
From the project

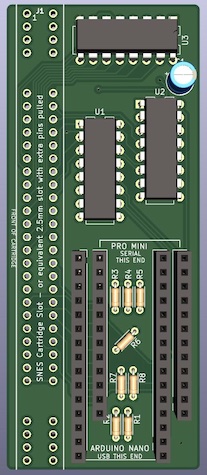

PCB for use with SNESdump
A board for use with [https://github.com/cthill/SNESDump].
It is designed completely with through-hole components because that's what most people have lying around.
The routing is ugly because I wanted the board to be compatible with the original code without any changes.
Cartridge Slot (1) - The cartridge slot can be either A scavenged slot from a real SNES or Super-Famicom A compatible 2.5mm 70-pin slot can be used with the appropriate pins yanked out - This slot MUST* be 2.5mm pitch (so-called "metric spacing") and not the more common 2.54mm pitch (0.1 inches)
Main components on the Snesdump board
Snesdump board bill of materials (BOM)
17 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 74HC595 | DIP-16_W7.62mm | U1, U2, U3 |
| 1 | CARTRIDGE_SLOT | SNES-CONN-EXP | J1 |
| 2 | Conn_01x15_Male | PinSocket_1x15_P2.54mm_Vertical | NANO_1, NANO_2 |
| 2 | Conn_01x12_Male | PinSocket_1x12_P2.54mm_Vertical | PRO_MINI_1, PRO_MINI_2 |
| 1 | 0.47uF | CP_Radial_D5.0mm_P2.50mm | C1 |
| 8 | 10K | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1, R2, R3, R4, R5, R6, R7, R8 |
