Agentboard PCB layout, top view — open source board by YakshithK

About the Agentboard PCB

Agentboard is an open source PCB design by YakshithK, published on GitHub. It is a 2-layer board measuring 41 × 57 mm, with 5 components from 3 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 3 switches, 1 IC and 1 connector.

It belongs with the keyboards and iot & wireless designs in this gallery.

From the project

A macropad for controlling Claude Code and Codex sessions. The hardware design is currently complete; the build is a work in progress.

A macropad for controlling Claude Code and Codex sessions. The hardware design is currently complete; the build is a work in progress.

The board is built around the XIAO RP2040, three push buttons, an Alps EC11 rotary encoder with switch, and a 128x32 SSD1306 OLED connected over I2C.

I always wanted an easy way to control my sessions and having a small macropad definitely doesn't make a substantial decrease in ease of use however it tricks my mind into making it seem very effortless, compared to using an entire keyboard. Just 3-4 keys!

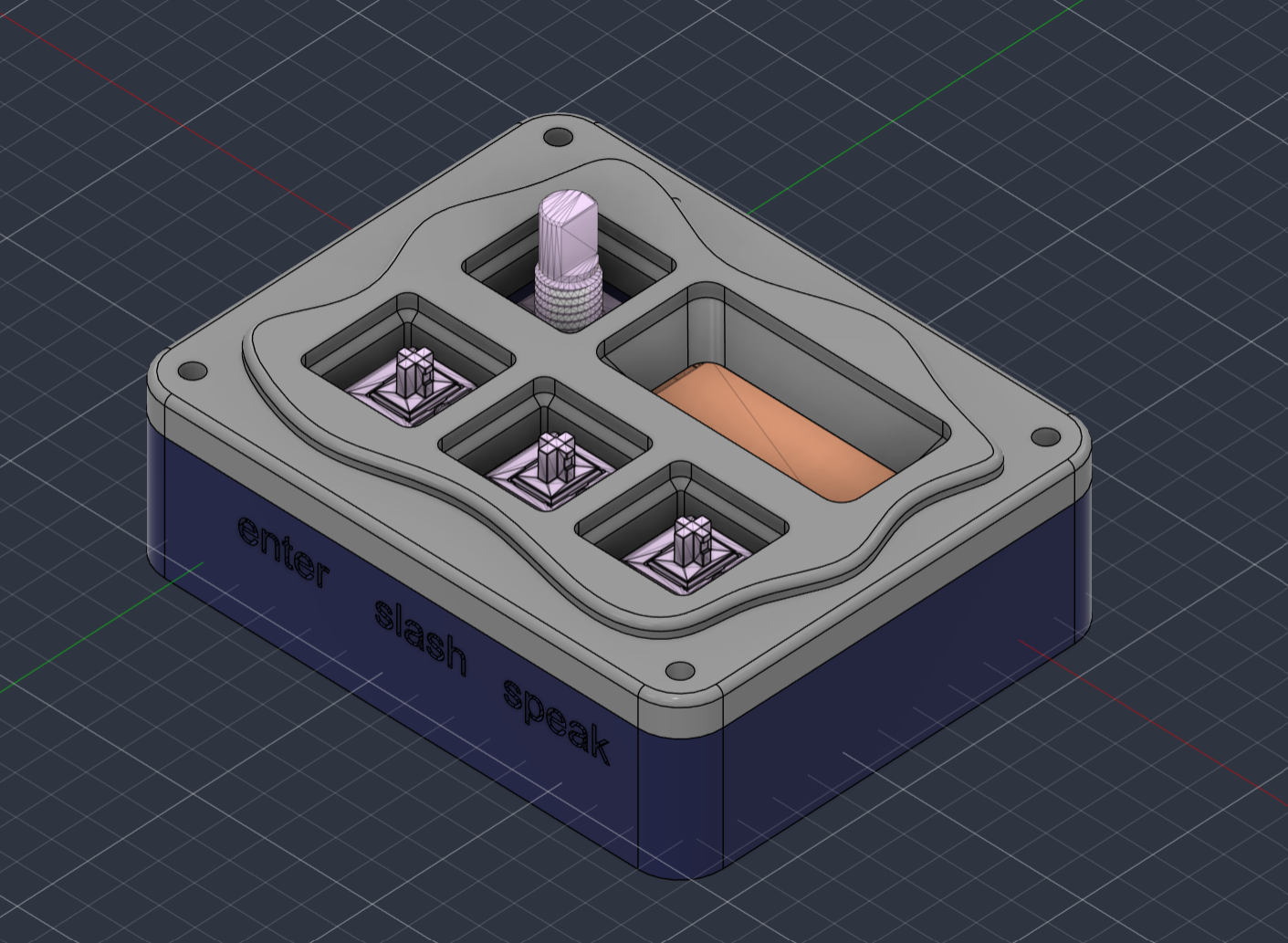

Agentboard, from the project README
From the project README

Main components on the Agentboard

MOUDLE-SEEEDUINO-XIAO

Agentboard bill of materials (BOM)

5 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
Conn_01x04_Pin
J1
3
SW_Push
SW1, SW2, SW3

Agentboard design files

The KiCad project lives in the YakshithK/Agentboard repository on GitHub; these links point at the commit this page was built from.

Agentboard: common questions

How big is the Agentboard PCB?

The Agentboard measures 41 × 57 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Agentboard?

5 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Agentboard design files?

From the YakshithK/Agentboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Agentboard design in my own project?

The repository has no license, so all rights stay with YakshithK. Use it as a reference, and ask the author before reusing the design.
