STM60-Keyboard PCB layout, top view — open source STM32 board by yangdigi

About the STM60-Keyboard PCB

STM60-Keyboard is an open source STM32 PCB design by yangdigi, published on GitHub. It is a 2-layer board measuring 285 × 94.6 mm, with 172 components from 31 distinct parts.

Its main chip is the STM32F103C8T6, from the STM32 family. By type, the board carries 79 resistors, 68 diodes, 15 switches, 4 connectors, 2 transistors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

STM60 Keyboard PCB

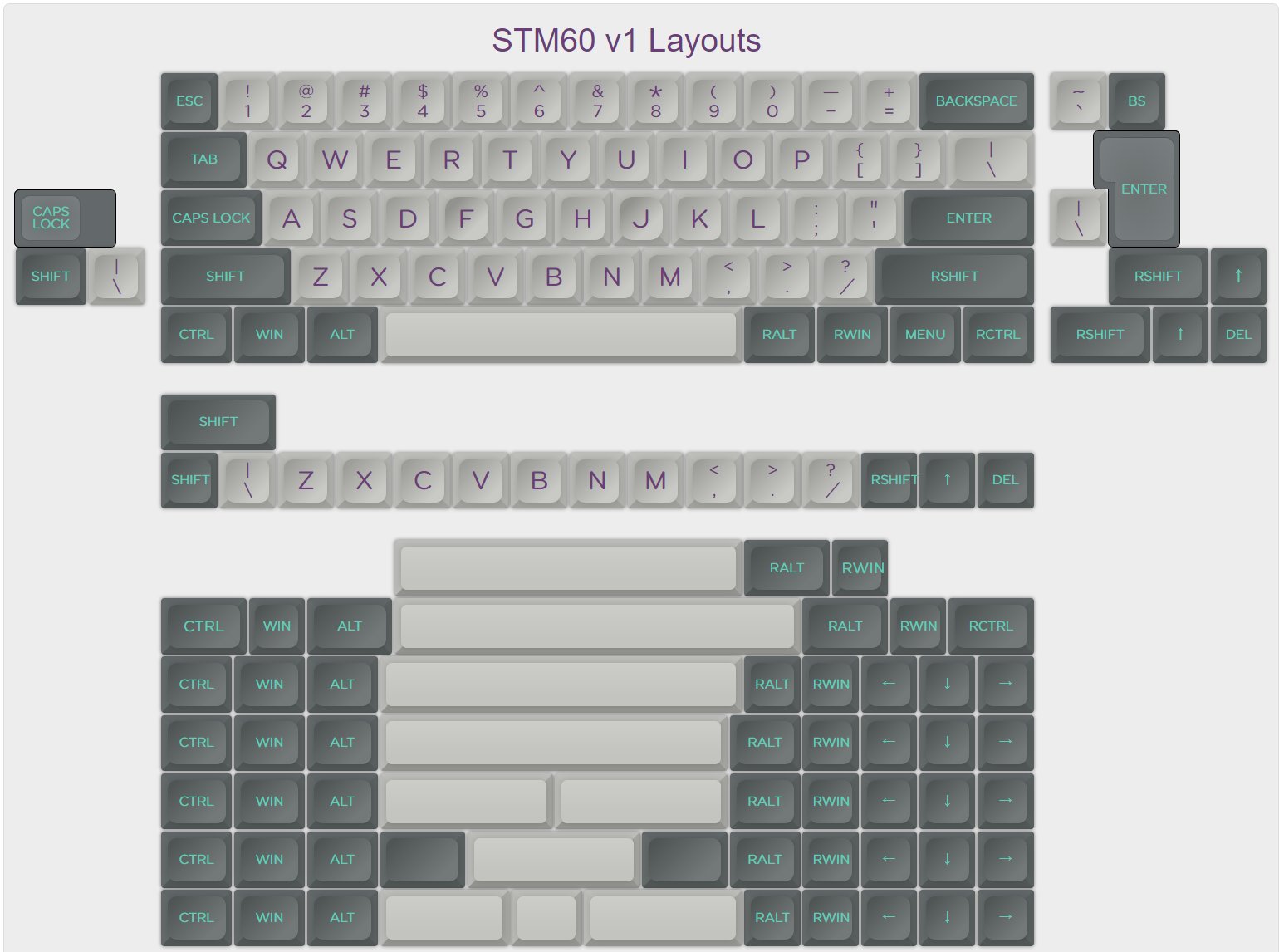

STM60-Keyboard, from the project README
From the project README

Main components on the STM60-Keyboard

STM32F103C8T6

STM60-Keyboard bill of materials (BOM)

172 components, 31 distinct parts.

QtyPartRefs
1
STM32F103C8T6
U1
2
MOS_P
Q1, Q2
1
SWD
J1
1
RGB
J2
1
IIC
J3
1
UART
J4
1
1
S2
1
4
S5
1
9
S10
1
Y
S22
1
]}
S28
1
;:
S40
1
'
S41
1
Enter
S43
1
Win
S60
1
ISO\
S451
1
RShift
S562
1
Del
S581
1
Menu
S622
1
Space
S636
Show 11 more
QtyPartRefs
1
RWin
S641
1
USB_TYPE-C_16PIN
USB2
1
Pad
Val0
1
CAPS
LED2
68
1n4148
D1, D3, D4, D5, D6, D7, D8, D9 +60
69
300
R1, R3, R4, R5, R6, R7, R8, R9 +61
1
1K5
R70
3
10K
R74, R75, R83
2
2K2
R76, R77
2
100K
R78, R79
2
5.1K
R81, R82

STM60-Keyboard design files

The KiCad project lives in the yangdigi/STM60-Keyboard-PCB repository on GitHub; these links point at the commit this page was built from.

STM60-Keyboard: common questions

What microcontroller does the STM60-Keyboard use?

The STM60-Keyboard is built around the STM32F103C8T6, from the STM32 family.

How big is the STM60-Keyboard PCB?

The STM60-Keyboard measures 285 × 94.6 mm, has 2 copper layers and is 1.6002 mm thick.

How many components are on the STM60-Keyboard?

172 components, from 31 distinct parts. The full bill of materials is listed on this page.

Where can I download the STM60-Keyboard design files?

From the yangdigi/STM60-Keyboard-PCB repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the STM60-Keyboard design in my own project?

The repository has no license, so all rights stay with yangdigi. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the STM60-Keyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
