Aieda greenhouse

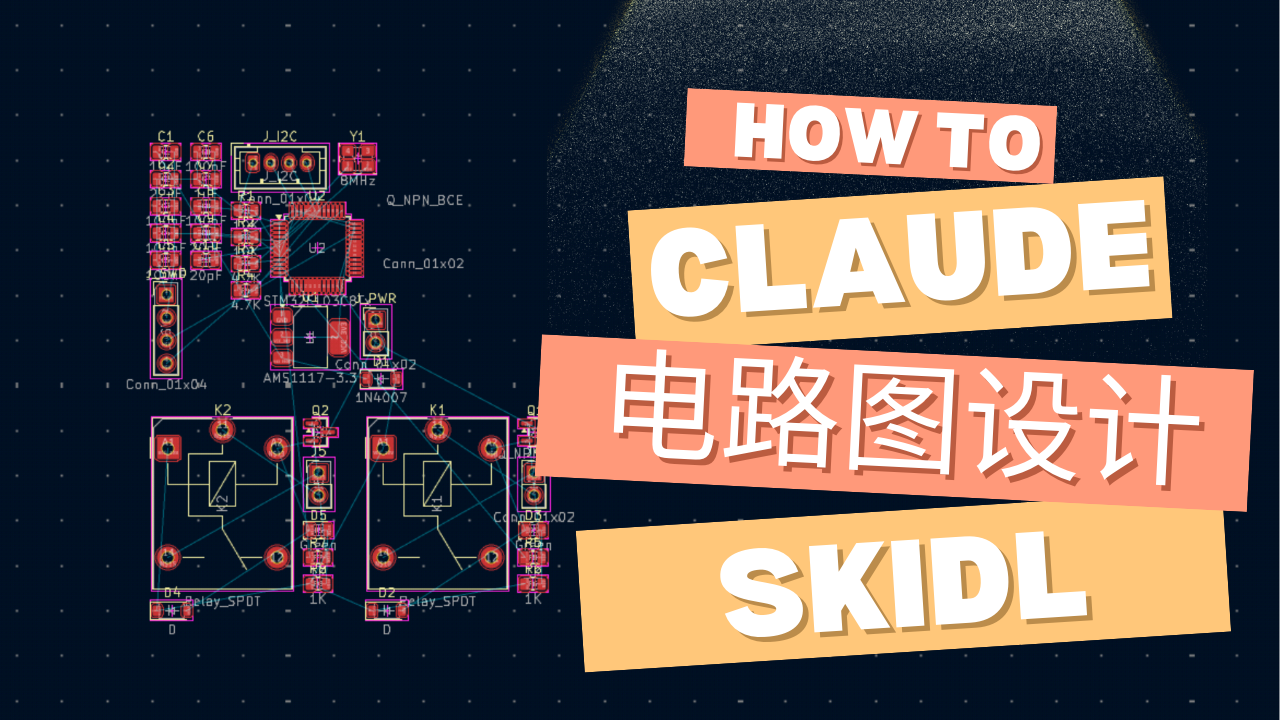

About the Aieda greenhouse PCB

Aieda greenhouse is an open source STM32 PCB design by yplam, published on GitHub. It is a board, with 33 components from 18 distinct parts.

Its main chip is the STM32F103C8Tx, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 10 capacitors, 8 resistors, 5 diodes, 2 ICs, 2 transistors and 2 connectors.

It belongs with the power & battery and sensors designs in this gallery.

From the project

AI generate schematic and code for greenhouse controlling.

⚠️ 注意：这是一个纯 AI 生成的项目，仅为探索 AI 生成原理图与编码的可行性

基于以下应用场景：一个小型温室，通过温湿度传感器感知环境参数，通过水泵洒水、风扇通风来控制温湿度。鉴于 LLM 在编程方面的能力较强，原理图设计也基于 SKiDL Python 脚本生成的方式。

A small automated greenhouse control system built around the STM32F103C8Tx (Blue Pill). It monitors soil moisture and temperature via an Adafruit STEMMA soil sensor and controls a water pump and fan through relay drivers.

- Soil moisture monitoring — Adafruit STEMMA I2C soil sensor (seesaw protocol) - Automatic watering — Relay-driven water pump with hysteresis (on 700) and safety timeout (2 min max-on, 1 min cooldown) - Temperature-controlled fan —…

Main components on the Aieda greenhouse

AMS1117-3.3STM32F103C8Tx

Aieda greenhouse bill of materials (BOM)

33 components, 18 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
STM32F103C8Tx
U2
2
Q_NPN_BCE
Q1, Q2
1
8MHz
Y1
2
Conn_01x02
J4, J5
1
Conn_01x04
J_I2C
2
Relay_SPDT
K1, K2
1
1N4007
D1
2
D
D2, D4
2
Green
D3, D5
1
10uF
C1
1
22uF
C2
5
100nF
C3, C4, C5, C6, C8
1
1uF
C7
2
20pF
C9, C10
2
10K
R1, R2
2
4.7K
R3, R4
4
1K
R5, R6, R7, R8

Aieda greenhouse design files

The KiCad project lives in the yplam/aieda-greenhouse repository on GitHub; these links point at the commit this page was built from.

Aieda greenhouse: common questions

What microcontroller does the Aieda greenhouse use?

The Aieda greenhouse is built around the STM32F103C8Tx, from the STM32 family.

How many components are on the Aieda greenhouse?

33 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the Aieda greenhouse design files?

From the yplam/aieda-greenhouse repository on GitHub, which has a netlist; the links under Design files point to each one.

Can I use the Aieda greenhouse design in my own project?

The repository has no license, so all rights stay with yplam. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Aieda greenhouse without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
