Gemini keyboard

zk-phi·gemini-keyboard·left_pcb/switch42.kicad_pcb

Gemini keyboard PCB layout, top view — open source board by zk-phi
Simulate this board

About the Gemini keyboard PCB

Gemini keyboard is an open source PCB design by zk-phi, published on GitHub under the Custom license license. It is a 2-layer board measuring 135.4 × 80.1 mm, with 69 components from 10 distinct parts.

Other key parts include the ProMicro. By type, the board carries 26 inductors, 21 switches, 20 diodes, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

My endgame split ergo of this month

これまでに購入したり設計したりしてきたキーボードたちのアイデアを豊富に盛り込んだ、個人的に集大成のキーボードです。

- 数字行から上はバッサリカットして、コンパクトにしています - 一方で、横方向にはしっかり12列あるので、Ctrl, Shift を一般的な配列と同様に小指に置くことができます。複雑なショートカットキー (Ctrl+Alt+? など) を変わらず使用できます

- 左右に割れています - 両手に b があります - 横にも縦にもズレた、独特の左右対称配列になっています。横ズレに慣れたタイピングの癖をそこまで矯正することなく、縦ズレのフィット感を享受できます - 逆に、格子配列や縦ズレに慣れた人にとっては、最上段がホームポジションに近づき押しやすくなります（t, y 遠い問題） - 親指キーが他のキーから少し離して配置されていて、手を自然に開いた状態で届くようになっています - スタビライザーが不要です

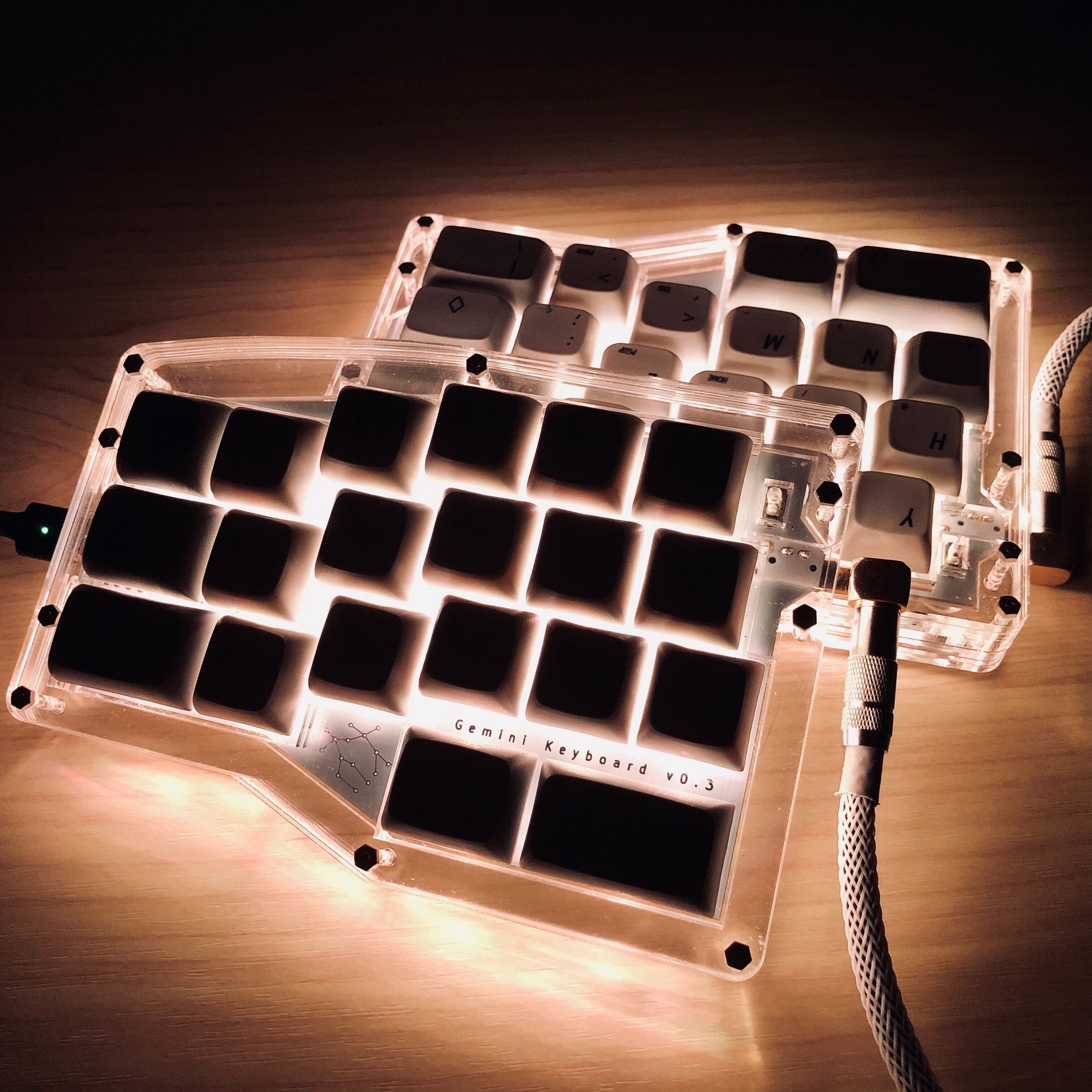

Gemini keyboard, from the project README
From the project README

Main components on the Gemini keyboard

ProMicro

Gemini keyboard bill of materials (BOM)

69 components, 10 distinct parts.

QtyPartRefs
1
ProMicro
U1
1
MJ-4PP-9
J1
1
SW_PUSH
SW1
16
SW_PUSH
SW2, SW5, SW6, SW7, SW8, SW9, SW10, SW11 +8
2
SW_PUSH
SW3, SW18
1
SW_PUSH
SW4
1
SW_PUSH
SW22
20
D
D1, D2, D3, D4, D5, D6, D7, D8 +12
20
SK6812MINI
L1, L2, L3, L4, L5, L6, L7, L8 +12
6
SK6812MINI
L22, L23, L24, L25, L26, L27

Gemini keyboard design files

The KiCad project lives in the zk-phi/gemini-keyboard repository on GitHub; these links point at the commit this page was built from.

Gemini keyboard: common questions

How big is the Gemini keyboard PCB?

The Gemini keyboard measures 135.4 × 80.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Gemini keyboard?

69 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Gemini keyboard design files?

From the zk-phi/gemini-keyboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Gemini keyboard design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
