USB C Daughterboard with ESD Protection

0xCB-dev·SL-060-PCB·rev1.0/daughterboard/daughterboard.kicad_pcb

USB C Daughterboard with ESD Protection PCB layout, top view — open source board by 0xCB-dev
Simulate this board

About the USB C Daughterboard with ESD Protection PCB

USB C Daughterboard with ESD Protection is an open source PCB design by 0xCB-dev, published on GitHub under the Custom license license. It is a 2-layer board measuring 42 × 13 mm, with 13 components from 10 distinct parts.

Other key parts include the USBLC6-2SC6. By type, the board carries 4 resistors, 2 connectors, 2 inductors, 2 capacitors, 1 IC and 1 fuse.

It belongs with the keyboards and audio designs in this gallery.

From the project

Synth Labs 060 PCB Hardware Files

Licence | OSHWA :-------------------------:|:-------------------------: | [](https://certification.oshwa.org/de000116.html)

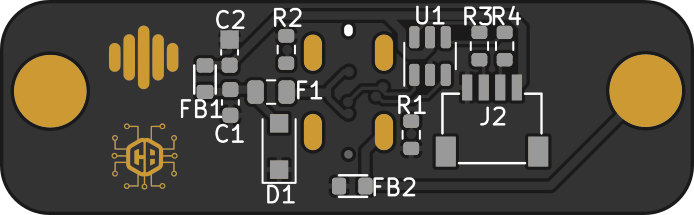

USB C Daughterboard with ESD Protection, from the project README
From the project README

Main components on the USB C Daughterboard with ESD Protection

USBLC6-2SC6

USB C Daughterboard with ESD Protection bill of materials (BOM)

13 components, 10 distinct parts.

QtyPartRefs
1
USBLC6-2SC6
U1
1
USB4120-03-C
J1
1
Conn_01x04
J2
1
3A
F1
1
SMF5.0CA
D1
2
600R
FB1, FB2
1
10u
C1
1
1u
C2
2
5.1k
R1, R2
2
22
R3, R4

USB C Daughterboard with ESD Protection design files

The KiCad project lives in the 0xCB-dev/SL-060-PCB repository on GitHub; these links point at the commit this page was built from.

USB C Daughterboard with ESD Protection: common questions

How big is the USB C Daughterboard with ESD Protection PCB?

The USB C Daughterboard with ESD Protection measures 42 × 13 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the USB C Daughterboard with ESD Protection?

13 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the USB C Daughterboard with ESD Protection design files?

From the 0xCB-dev/SL-060-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the USB C Daughterboard with ESD Protection design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
