ESP-PROG-Adapter PCB layout, top view — open source board by 0xjmux
Simulate this board

About the ESP-PROG-Adapter PCB

ESP-PROG-Adapter is an open source PCB design by 0xjmux, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 37.8 × 25.1 mm, with 6 components from 6 distinct parts.

By type, the board carries 5 connectors and 1 jumper.

It belongs with the usb & debug tools designs in this gallery.

From the project

Adapter PCB and Kicad Library to make adding component-less program and debug footprints to your PCBs as easy as possible

My blog post about this project Look ma, I was featured on Hackaday!

One of the things I've noticed in a lot of beginner ESP32 PCBs is a lack of hardware debugging interfaces, which is understandable since setting up JTAG can be a bit confusing when you're first exposed to it. This project's goal is to make using JTAG and connector-less footprints on your PCBs as easy and cheap as possible.

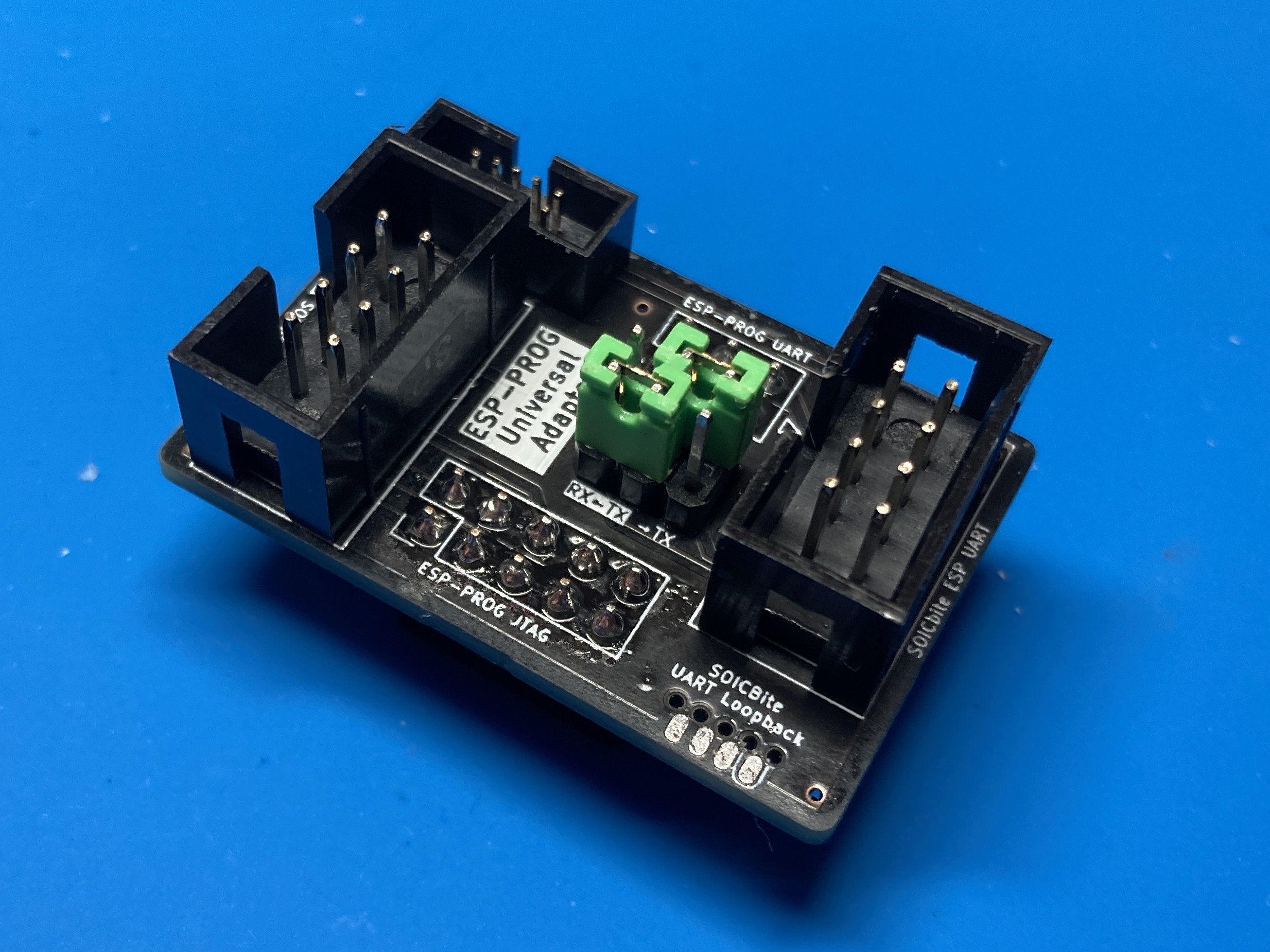

ESP-PROG-Adapter, from the project README
From the project README

ESP-PROG-Adapter bill of materials (BOM)

6 components, 6 distinct parts.

QtyPartRefs
1
Conn ESP-Prog JTAG
J1
1
Conn ESP-Prog UART
J2
1
DebugHeader_Cortex-M_JTAG_10p_TagConnect
J3
1
SOICBite IDC UART
J7
1
SOICBite IDC JTAG
J9
1
ESPPROG_TX_RX_JUMP
JP1

ESP-PROG-Adapter design files

The KiCad project lives in the 0xjmux/ESP-PROG-Adapter repository on GitHub; these links point at the commit this page was built from.

ESP-PROG-Adapter: common questions

How big is the ESP-PROG-Adapter PCB?

The ESP-PROG-Adapter measures 37.8 × 25.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP-PROG-Adapter?

6 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESP-PROG-Adapter design files?

From the 0xjmux/ESP-PROG-Adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ESP-PROG-Adapter design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which 0xjmux chose for the repository.
