About the FW-EC-DongleHiderPlus PCB
FW-EC-DongleHiderPlus is an open source PCB design by LeoDJ, published on GitHub under the CERN-OHL-W-2.0 license. It is a 4-layer board measuring 28.2 × 26.1 mm, with 14 components from 10 distinct parts.
Other key parts include the CH334F and USBLC6-2SC6. By type, the board carries 8 capacitors, 2 ICs, 2 connectors, 1 crystal and 1 resistor.
It belongs with the usb & debug tools designs in this gallery.
From the project

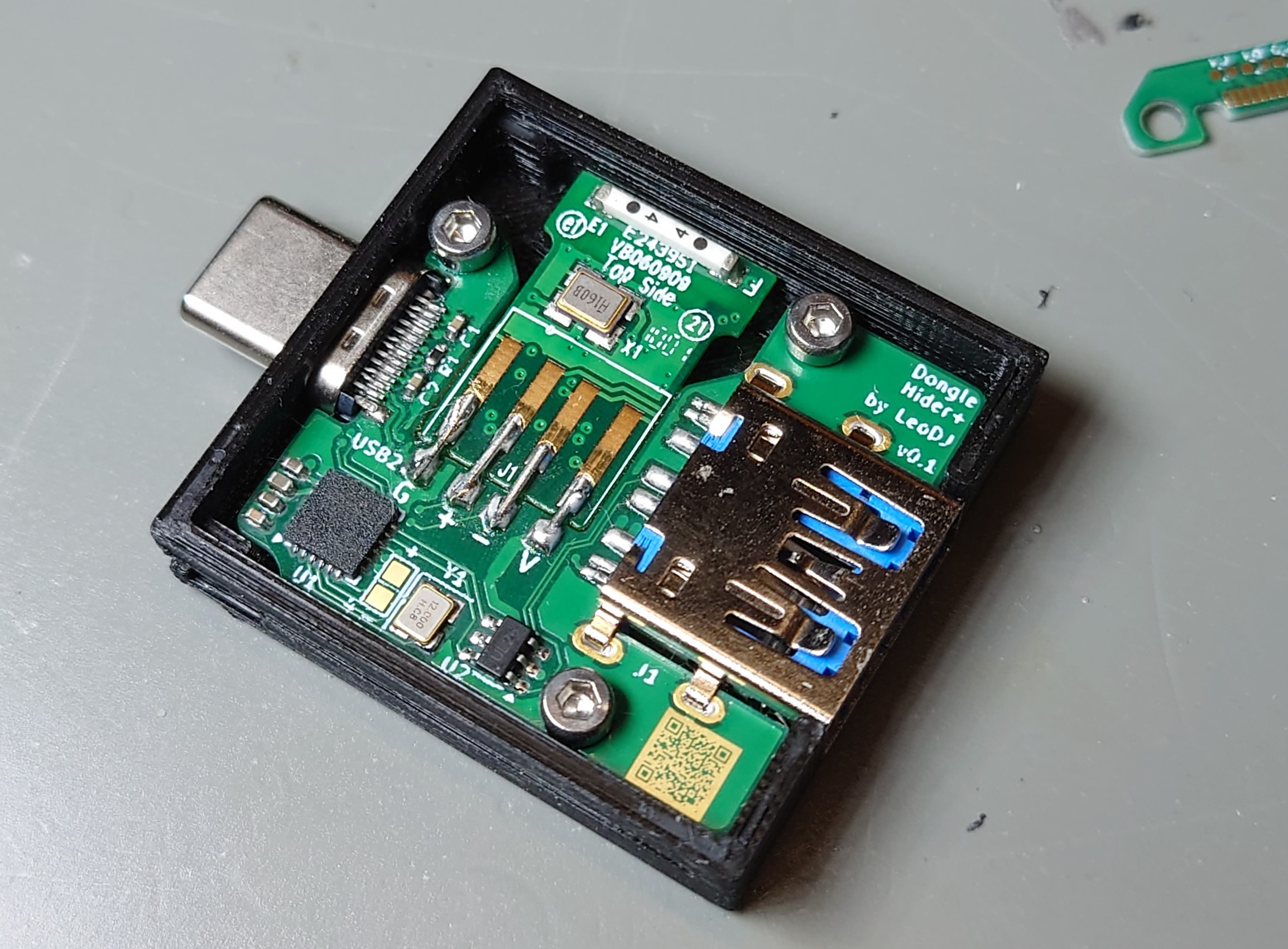

Framework Expansion Card that includes a USB hub to hide a bare dongle inside and still have a USB-A port externally
Want to use a Logitech Unifying Dongle (or similar) without having a dongle permanently sticking out and giving up on a precious expansion card slot?
Simply (permanently) mount the dongle inside the card and still have an USB A port available!
There even is room and solder pads for 1-2 additional dongles. Your imagination (and physics) are the only limits!
See also the thread on Mastodon about the build process etc.

Main components on the FW-EC-DongleHiderPlus
FW-EC-DongleHiderPlus bill of materials (BOM)
14 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CH334F | QFN-24-1EP_4x4mm_P0.5mm_EP2.7x2.7mm | U1 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U2 |
| 1 | 12MHZ 12MHz | Crystal_SMD_2520-4Pin_2.5x2.0mm | Y1 |
| 1 | USB3_A | USB-A-SMD_HC-USB3.0-C345-P | J1 |
| 1 | C561769 USB_C_Plug | USB_C_Plug_Molex_105444 | P1 |
| 4 | 10N 10n | C_0402_1005Metric | C1, C2, C3, C4 |
| 2 | 1u | C_0402_1005Metric | C5, C8 |
| 1 | 100N 100n | C_0402_1005Metric | C6 |
| 1 | 10U 10u | C_0402_1005Metric | C7 |
| 1 | 5K1 5k1 | R_0402_1005Metric | R1 |
FW-EC-DongleHiderPlus design files
The KiCad project lives in the LeoDJ/FW-EC-DongleHiderPlus repository on GitHub; these links point at the commit this page was built from.
FW-EC-DongleHiderPlus: common questions
How big is the FW-EC-DongleHiderPlus PCB?
The FW-EC-DongleHiderPlus measures 28.2 × 26.1 mm, has 4 copper layers and is 0.7912 mm thick.
How many components are on the FW-EC-DongleHiderPlus?
14 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the FW-EC-DongleHiderPlus design files?
From the LeoDJ/FW-EC-DongleHiderPlus repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the FW-EC-DongleHiderPlus design in my own project?
Yes, under the terms of its CERN-OHL-W-2.0 license, which LeoDJ chose for the repository.
