XG Station Power
About the XG Station Power PCB
XG Station Power is an open source PCB design by osy, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 54.3 × 91 mm, with 9 components from 8 distinct parts.
By type, the board carries 4 resistors, 3 connectors, 1 switch and 1 capacitor.
It belongs with the power & battery and usb & debug tools designs in this gallery.
From the project

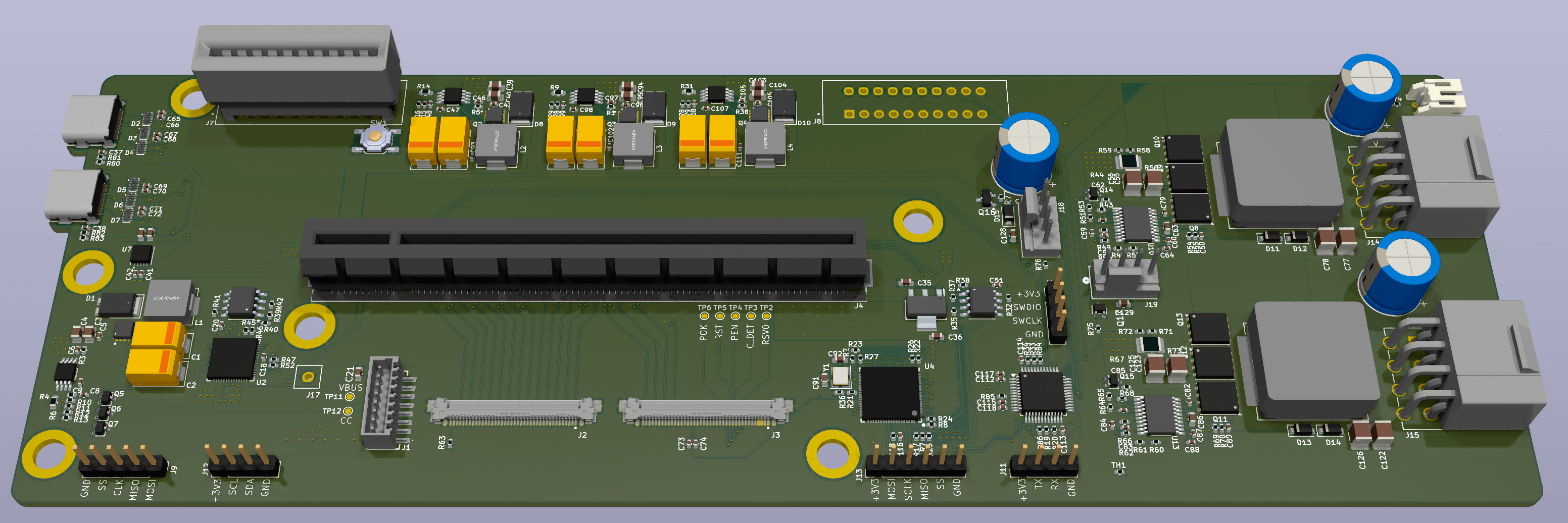

Open source eGPU dock for ROG Ally and ROG Flow
XG Mobile Dock ============== This open source hardware allows you to connect any PCIe card to an ASUS ROG device with the XG Mobile connector.
The standard variant is a drop-in replacement PCB for the [XG Station Pro Thunderbolt 3 eGPU dock][1]. It contains a built in USB 3.1 Gen 2 hub and a USB PD charger.
The lite variant is a standalone board that is compatible in dimensions with the [ADT-UT3G][6]. It requires a standard ATX power supply and passes through the USB to an external port.
XG Station Power bill of materials (BOM)
9 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 20P_Slot_Power | 20P_Slot_Power | J1 |
| 1 | Conn_01x02 | 2351970-1 | J2 |
| 1 | 8730 | KEYSTONE_8730 | J3 |
| 1 | TL1260BQRBLK | TL1260_EWI | SW1 |
| 1 | 90nF | C_0402_1005Metric | C1 |
| 1 | 300 | R_0603_1608Metric | R1 |
| 2 | 0R | R_0402_1005Metric | R2, R4 |
| 1 | 10k | R_0402_1005Metric | R3 |
XG Station Power design files
The KiCad project lives in the osy/XG_Mobile_Station repository on GitHub; these links point at the commit this page was built from.
- LayoutXG_Station_Power.kicad_pcb
- SchematicXG_Station_Power.kicad_sch
XG Station Power: common questions
How big is the XG Station Power PCB?
The XG Station Power measures 54.3 × 91 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the XG Station Power?
9 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the XG Station Power design files?
From the osy/XG_Mobile_Station repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the XG Station Power design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which osy chose for the repository.
