MsiSDR
About the MsiSDR PCB
MsiSDR is an open source PCB design by 11tools, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 46.3 × 90.7 mm, with 76 components from 42 distinct parts.
Other key parts include the msi2500, msi001, RT9193-28 and AP7313-30SAG. By type, the board carries 42 capacitors, 11 connectors, 8 resistors, 6 inductors, 4 ICs and 3 diodes.
It belongs with the rf & radio designs in this gallery.
From the project

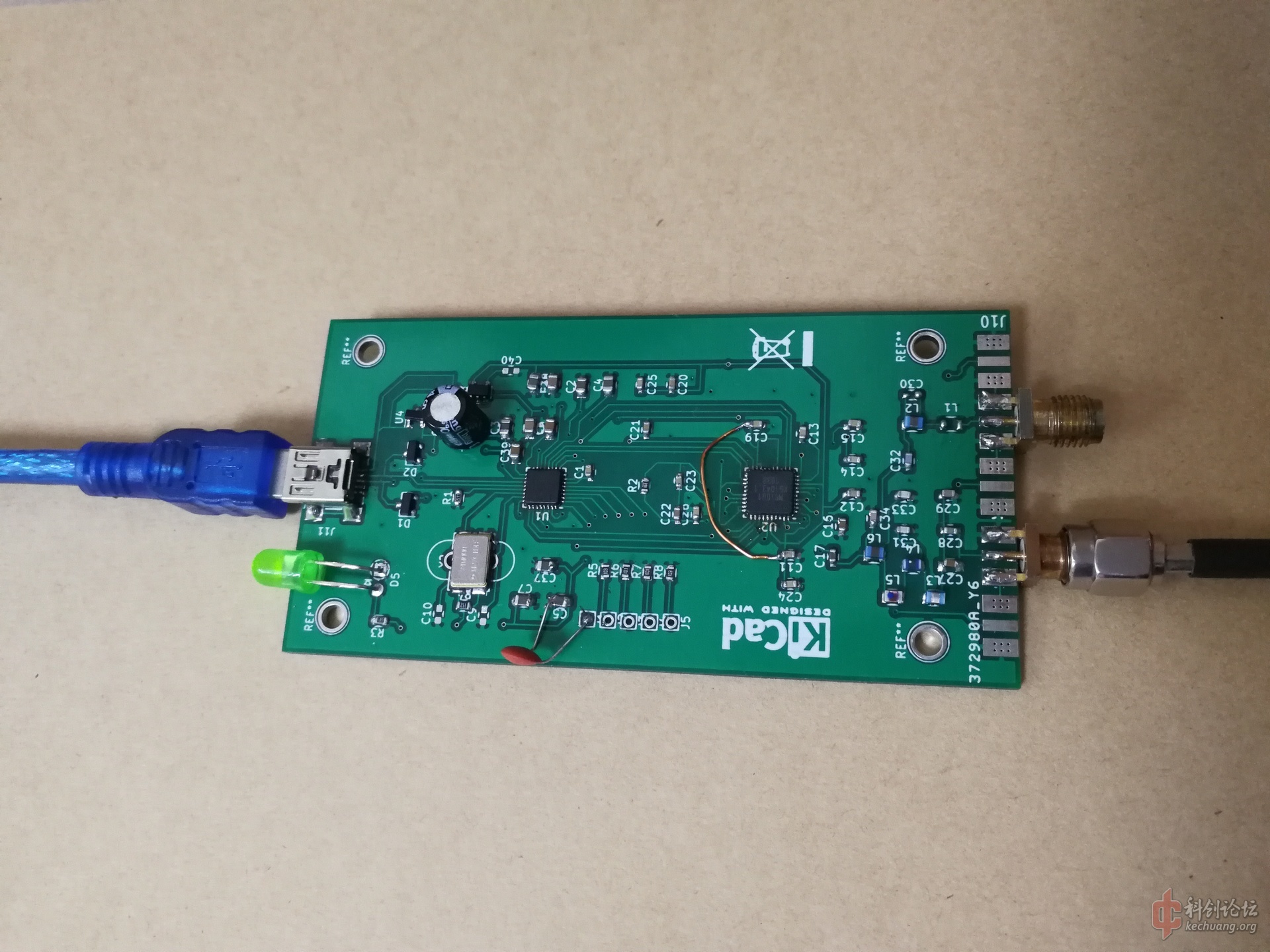

A SDR PCB project base on msi2500 and msi001
this is an Software Define Radio receiver PCB project base on msi2500 and msi001. use kicad to view it
这是一个基于msi2500 和 msi001的软件无线电PCB工程项目， 使用kiCAD浏览此工程
Send gerbar files to PCB factory . you'd better to use SMT
Main components on the MsiSDR
MsiSDR bill of materials (BOM)
76 components, 42 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | msi2500 | QFN-32-1EP_5x5mm_Pitch0.5mm | U1 |
| 1 | msi001 | QFN-40-1EP_6x6mm_Pitch0.5mm | U2 |
| 1 | RT9193-28 | SOT-23-5 | U3 |
| 1 | AP7313-30SAG | SOT-23 | U4 |
| 1 | 24MHz | Crystal_HC50_Vertical | Y1 |
| 1 | 24MHZ | Crystal_SMD_7050-4pin_7.0x5.0mm | Y2 |
| 1 | VCC_GPIO | Pin_d0.7mm_L6.5mm_W1.8mm_FlatFork | J1 |
| 1 | GPIO0 | Pin_d0.7mm_L6.5mm_W1.8mm_FlatFork | J2 |
| 1 | GPIO1 | Pin_d0.7mm_L6.5mm_W1.8mm_FlatFork | J3 |
| 1 | GPIO2 | Pin_d0.7mm_L6.5mm_W1.8mm_FlatFork | J4 |
| 1 | GPIO3 | Pin_d0.7mm_L6.5mm_W1.8mm_FlatFork | J5 |
| 1 | SMA_0_30MHZ | SMA_OPL_EM | J6 |
| 1 | SMA_30_60MHZ | SMA_OPL_EM | J7 |
| 1 | SMA_VHF2 | SMA_OPL_EMPTYHEAD | J8 |
| 1 | SMA_UHF | SMA_OPL_EMPTYHEAD | J9 |
| 1 | SMA_VHF1 | SMA_OPL_EMPTYHEAD | J10 |
| 1 | USB_OTG | USB_Mini-B | J11 |
| 2 | BAV99LT1G | SOT-23 | D1, D2 |
| 1 | LED | D_DO-35_SOD27_P2.54mm_Vertical_AnodeUp | D5 |
| 1 | 220nH | L_0805 | L1 |
Show 22 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 330nH | L_0805 | L2, L3, L6 |
| 1 | 270nH | L_0805 | L4 |
| 1 | 150nH | L_0805 | L5 |
| 13 | 10nF | C_0603 | C1, C11, C12, C13, C14, C15, C19, C20 +5 |
| 8 | 10uF | C_0805 | C2, C3, C4, C5, C7, C36, C37, C38 |
| 5 | 1uF | C_0805 | C6, C8, C18, C39, C41 |
| 2 | 18pF | C_0603 | C9, C10 |
| 2 | 100nF | C_0603 | C16, C17 |
| 1 | 6800pF | C_0603 | C22 |
| 1 | 33nF | C_0603 | C23 |
| 1 | 470nF | C_0805 | C27 |
| 1 | 1nF | C_0603 | C28 |
| 2 | 56pF | C_0603 | C29, C34 |
| 1 | 3.9pF | C_0603 | C30 |
| 2 | 160pF | C_0603 | C31, C33 |
| 1 | 39pF | C_0603 | C32 |
| 1 | 100uF | CP_Radial_D5.0mm_P2.50mm | C35 |
| 1 | 22nF | C_0603 | C40 |
| 1 | 510R | R_0603 | R1 |
| 1 | 390R | R_0603 | R2 |
| 1 | 512 | R_0603 | R3 |
| 5 | 10K | R_0603 | R4, R5, R6, R7, R8 |
MsiSDR design files
The KiCad project lives in the 11tools/msiSDR repository on GitHub; these links point at the commit this page was built from.
- Layoutmsisdr.kicad_pcb
MsiSDR: common questions
How big is the MsiSDR PCB?
The MsiSDR measures 46.3 × 90.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MsiSDR?
76 components, from 42 distinct parts. The full bill of materials is listed on this page.
Where can I download the MsiSDR design files?
From the 11tools/msiSDR repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the MsiSDR design in my own project?
Yes, under the terms of its GPL-3.0 license, which 11tools chose for the repository.
