About the USB Dongle PCB
USB Dongle is an open source STM32 PCB design by 2sayle, published on GitHub. It is a 6-layer board measuring 70 × 27 mm, with 56 components from 34 distinct parts.
Its main chip is the STM32F730R8Tx, from the STM32 family. Other key parts include the AMS1117-3.3, USB3343, USBULC6-2M6, ESDA14V2-2BF3 and CAT811TTBI-GT3. By type, the board carries 27 capacitors, 12 resistors, 6 ICs, 3 connectors, 2 crystals and 2 switches.
From the project

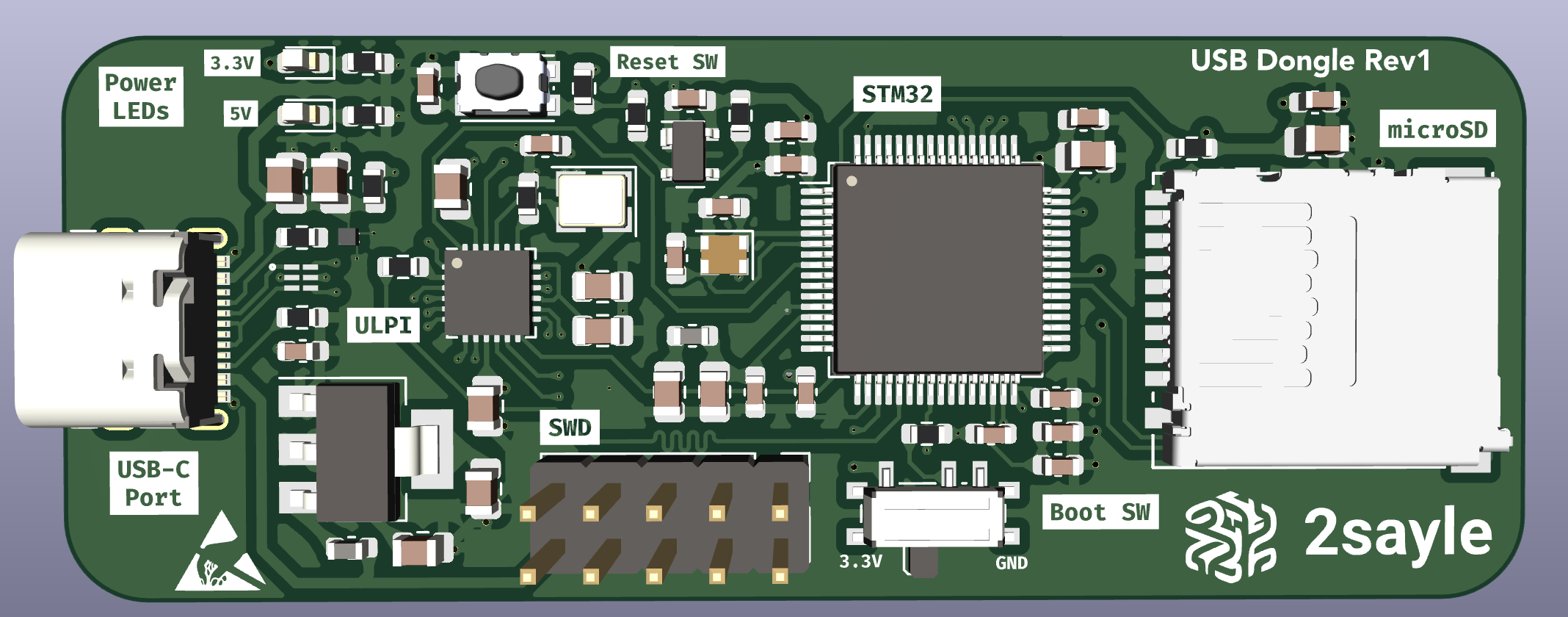

KiCad project to create a custom USB-C key with mass storage
KiCad project to create a custom USB-C key with mass storage and a microSD connector. Find all the KiCad schematics and layout files. Libraries containing custom footprints and symbols are available in ./Libraries folder.
- USB-C connector - USB 2.0 High Speed Interface (through ULPI) - STM32F730R8T microcontroller - MicroSD connector - Power LEDs - GPIOs for SWD (Serial Wire Debug)

Main components on the USB Dongle
USB Dongle bill of materials (BOM)
56 components, 34 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U1 |
| 1 | USB3343 | QFN-24-1EP_4x4mm_P0.5mm_EP2.6x2.6mm | U2 |
| 1 | USBULC6-2M6 | MICROQFN6_1P45X1_STM | U3 |
| 1 | ESDA14V2-2BF3 | BGA_4V2-2BF3_STM | U4 |
| 1 | STM32F730R8Tx | LQFP-64_10x10mm_P0.5mm | U5 |
| 1 | CAT811TTBI-GT3 | SOT-143 | U6 |
| 1 | 26 MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | 24MHz / 10pF / 20ppm | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y2 |
| 1 | USB_C_Receptacle_USB2.0 | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J1 |
| 1 | Conn SWD 02x05 | PinHeader_2x05_P2.54mm_Vertical | J2 |
| 1 | DM3BT-DSF-PEJS | DM3BT-DSF-PEJS_HIR | J3 |
| 1 | PCM12SMTR | SW_SPDT_PCM12 | SW1 |
| 1 | KMR223G LFG | SW_Push_1P1T_NO_CK_KMR2 | SW2 |
| 2 | LED | LED_0603_1608Metric | D1, D2 |
| 2 | 120@100MHz | L_0603_1608Metric | FB1, FB2 |
| 10 | 100n | C_0603_1608Metric | C1, C10, C18, C19, C20, C21, C23, C24 +2 |
| 1 | 4.7u | C_0805_2012Metric | C2 |
| 3 | 10u | C_0805_2012Metric | C3, C16, C26 |
| 6 | 1u | C_0805_2012Metric | C4, C5, C7, C8, C17, C22 |
| 1 | 22u | C_0805_2012Metric | C6 |
Show 14 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100n | C_0805_2012Metric | C9 |
| 1 | 2.2u | C_0603_1608Metric | C11 |
| 2 | 10p | C_0603_1608Metric | C12, C14 |
| 1 | 10n | C_0603_1608Metric | C15 |
| 1 | 47n | C_0603_1608Metric | C27 |
| 1 | 20k | R_0603_1608Metric | R1 |
| 1 | 8.06k | R_0603_1608Metric | R2 |
| 2 | 5.1k | R_0603_1608Metric | R3, R4 |
| 1 | 200R | R_0603_1608Metric | R5 |
| 1 | 22R | R_0603_1608Metric | R6 |
| 1 | 1k | R_0603_1608Metric | R7 |
| 3 | 10k | R_0603_1608Metric | R8, R10, R11 |
| 1 | 4.7k | R_0603_1608Metric | R9 |
| 1 | 2.2k | R_0603_1608Metric | R12 |
USB Dongle design files
The KiCad project lives in the 2sayle/USB_Dongle_KiCad repository on GitHub; these links point at the commit this page was built from.
- LayoutUSB_Dongle_KiCad.kicad_pcb
- SchematicUSB_Dongle_KiCad.kicad_sch
USB Dongle: common questions
What microcontroller does the USB Dongle use?
The USB Dongle is built around the STM32F730R8Tx, from the STM32 family.
How big is the USB Dongle PCB?
The USB Dongle measures 70 × 27 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the USB Dongle?
56 components, from 34 distinct parts. The full bill of materials is listed on this page.
Where can I download the USB Dongle design files?
From the 2sayle/USB_Dongle_KiCad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the USB Dongle design in my own project?
The repository has no license, so all rights stay with 2sayle. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the USB Dongle without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
